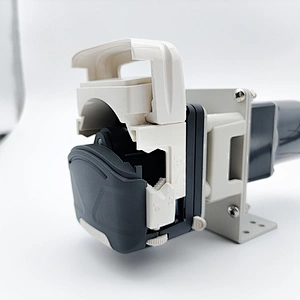

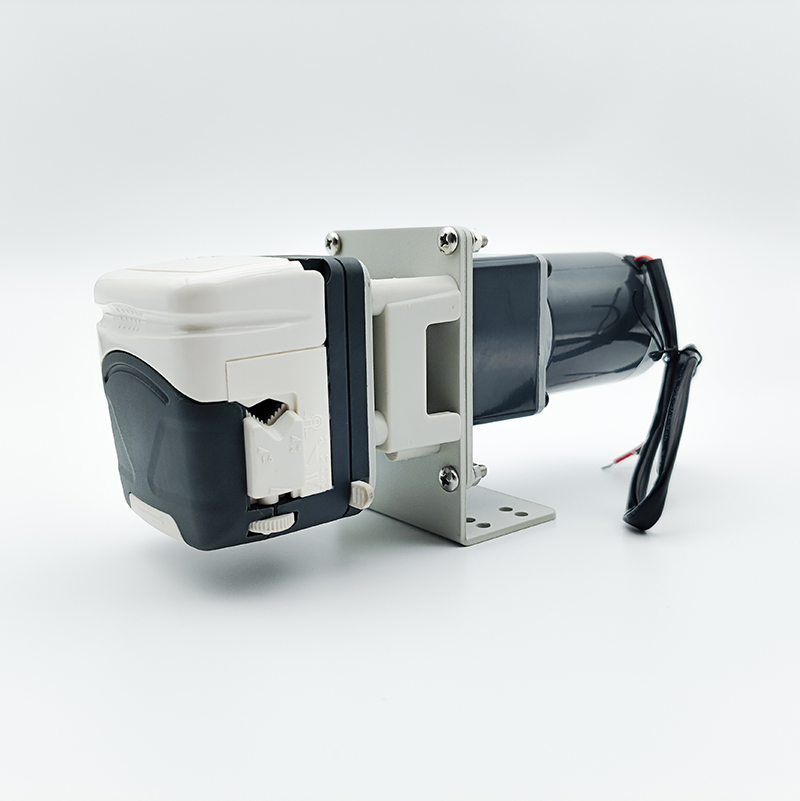

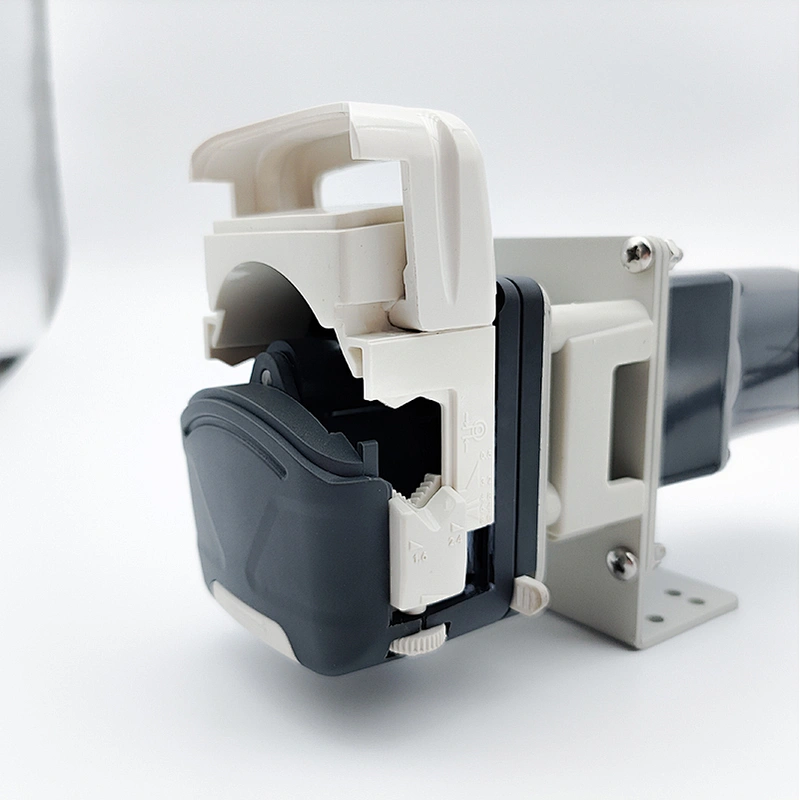

Customized Liquid Transfer OEM Peristaltic Pump Matching Peristaltic Pump

Warranty:                              1 Year, 1 Year

Customized support:            OEM, ODM, OBM

Model Number:                    OEM203

Place of Origin:                     Hebei, China

Application:                          Food and Beverage Industry, wastewater treatment

Horsepower:                        Other

Power Source:                      Electric

Pressure:                              Low Pressure

Structure:                             Peristaltic Pump

Cable Length:                      other

Outlet Size:                          Max 7.9mm

Voltage:                               DC 12V or DC 24V

Type:                                   OEM203

Pump head:                        TX315

Flow range:                         Max 2000 ml/min

Speed:                                 400rpm

Number of rollers:              3 rollers

MOQ:                                  1 Set

Certification:                       ce

Packaging & Delivery

Selling Units:                      Single item

Single package size:           29X19X19 cm

Single gross weight:           3.000 kg

Package Type:                    1. The package contains a peristaltic pump and its accessories.
                                             2. Carton and foam packaging can protect the safety of the product during transportation.
                                             3. If you have special packaging needs, please contact us in time.

Lead Time:

Quantity(Pieces)	1 - 3	>3
Est. Time(days)	7	To be negotiated

Product Description

The Chuangrui OEM range of tube pumps is designed for panel mounting or incorporation into 3rd party machines that need an easy
operateion , low maintenance liquid dosing solution that can be found in many applications such as Medical ,Printing, ,Packaging,
Chemical Dosing, Washing machines, Vending machines, Air conditioning units, Water treatment systems.



Order guide

micro small DC 12V pump DC 24V pump compact DC peristaltic dosing pump

The micro peristaltic pump suitable for wall thickness 1.6mm Silicon tube, Pharmed bpt etc. material
tube, flow range up to 2000 ml/min. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .

Order Noted:

This product is a customized product, please contact the sales for detailed understanding before purchasing.

Order list for the small peristaltic pump OEM203. Noted:  1.The defaulted model we will send is203-1-4 with DC24V motor and flow is 2000ml/min 2.Defaulted channel number is 1 ,If you need multiple pls contact us 3, The speed controller is not defaulted, if you need pls contact our sales. 4, The defaulted pump head material is pps (black) 5, Support multiple channels customized, more info ,pls contact us.
Order Number	Pump head	Motor Voltage	Motor Power	Motor Speed	Tube model	Max Flow
203-1-4	TX315	DC24V	15W	400rpm	18#	2000ml/min
203-2-4		DC12V

Pump head	Tube model	ID*Wall （mm）	Max speed	Max Flow
TX315	13#	0.8*1.6	400 rpm	28ml/min
	14#	1.6*1.6	400 rpm	106ml/min
	19#	2.4*1.6	400 rpm	227ml/min
	16#	3.1*1.6	400 rpm	399ml/min
	25#	4.8*1.6	400 rpm	830ml/min
	17#	6.4*1.6	400 rpm	1400ml/min
	18#	7.9*1.6	400 rpm	2000ml/min

small stepper motor peristaltic pump

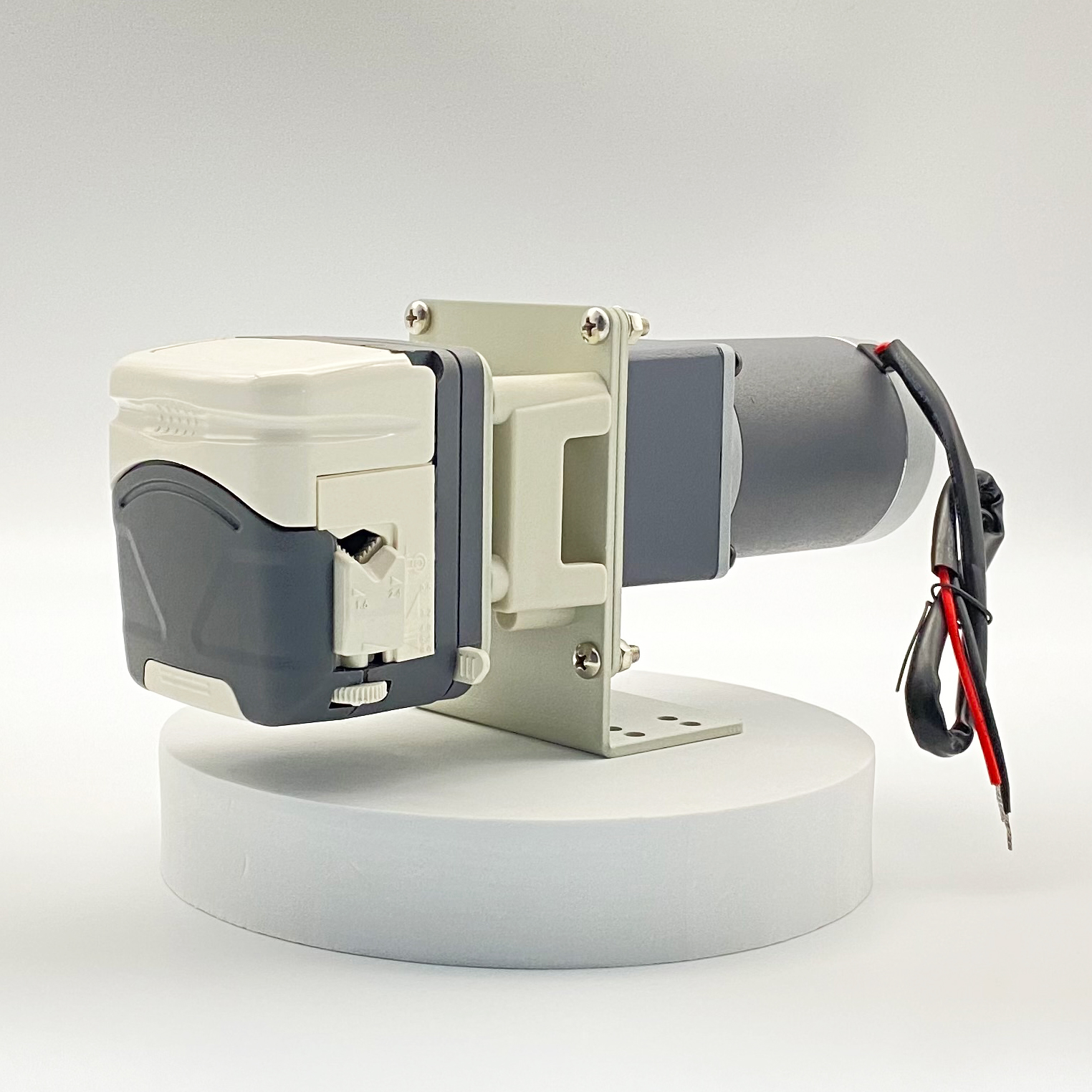

 Custom mounting brackets available.

- Ideal for fluid transfer application

- Pump head is compact and simple in design with same side tubing entry/exit.

- Perfect for space-limited applications.

- Pump heads are compact and easy to integrate into your Fluid applications.

- Call for more information on our pump services.



FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.


Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.


Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.



Packing & Delivery

Why Choose Us

Baoding Chuang Rui  Precision Pump Co., Ltd. Started production  of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
