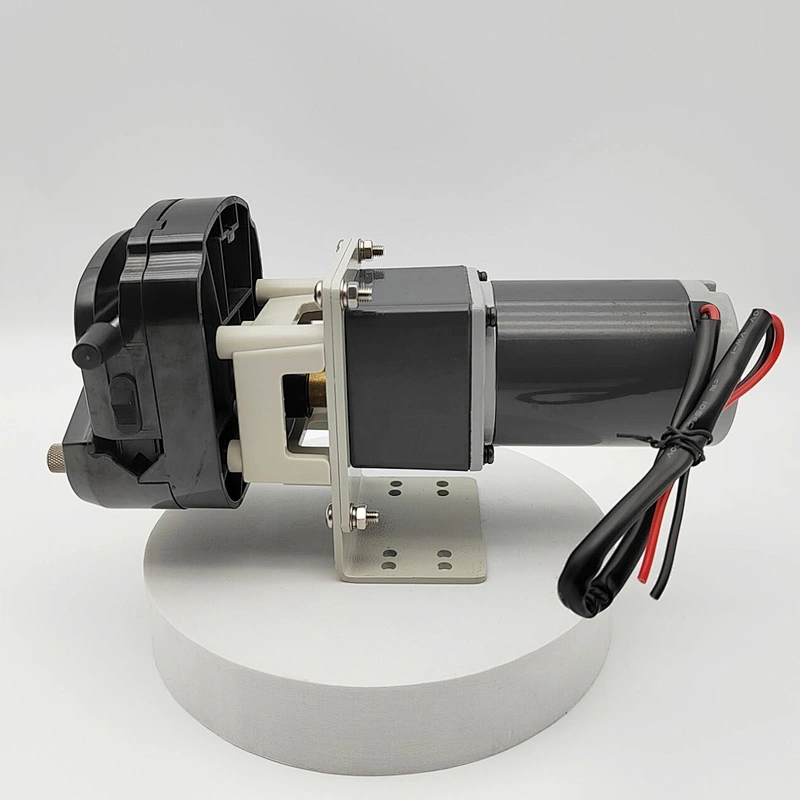

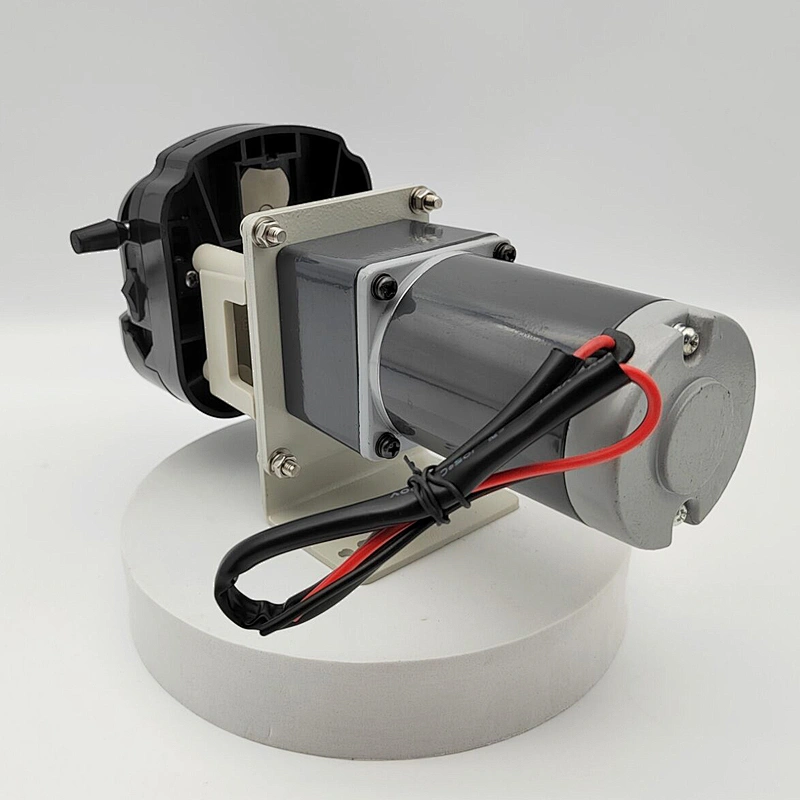

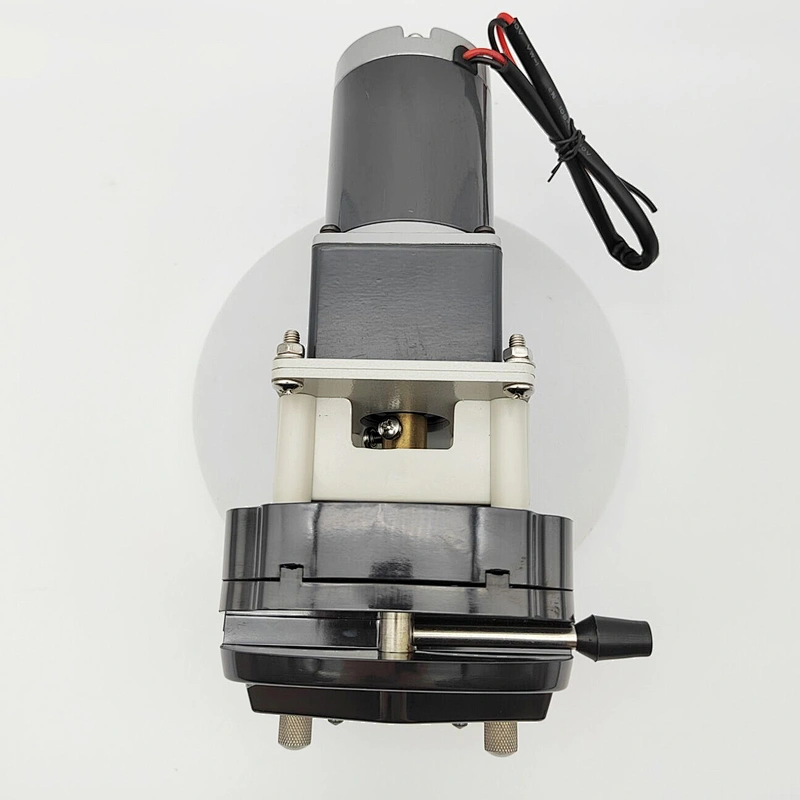

Chuangrui Small OEM 12v DC pump DIY Peristaltic water Pump For Supporting Equipment Matching

Warranty:                                       1 year, 1 Year Warranty(except Wearing Parts)

Customized support:                    OEM, ODM, OBM

Brand Name:                                  CR

Model Number:                              OEM201

Place of Origin:                               Hebei, China

Appliation:                                     Automotive Industry, Biofuel Industry, Food and Beverage Industry,
                                                       Pharmaceutical industry, Washing and Cleaning, Wastewater Transport and Flood Control,
                                                       wastewater treatment, Water Distribution, Water Treatment Solutions, Supporting Equipment Matching

Horsepower:                                 None

Power Source:                               Electric

Pressure:                                      Low Pressure

Structure:                                     peristaltic pump

Cable Length:                              none

Outlet Size:                                  Max 7.9mm

Voltage:                                        DC12V or DC24V, DC 12V /DC24V

Power:                                          low

Model:                                          OEM201

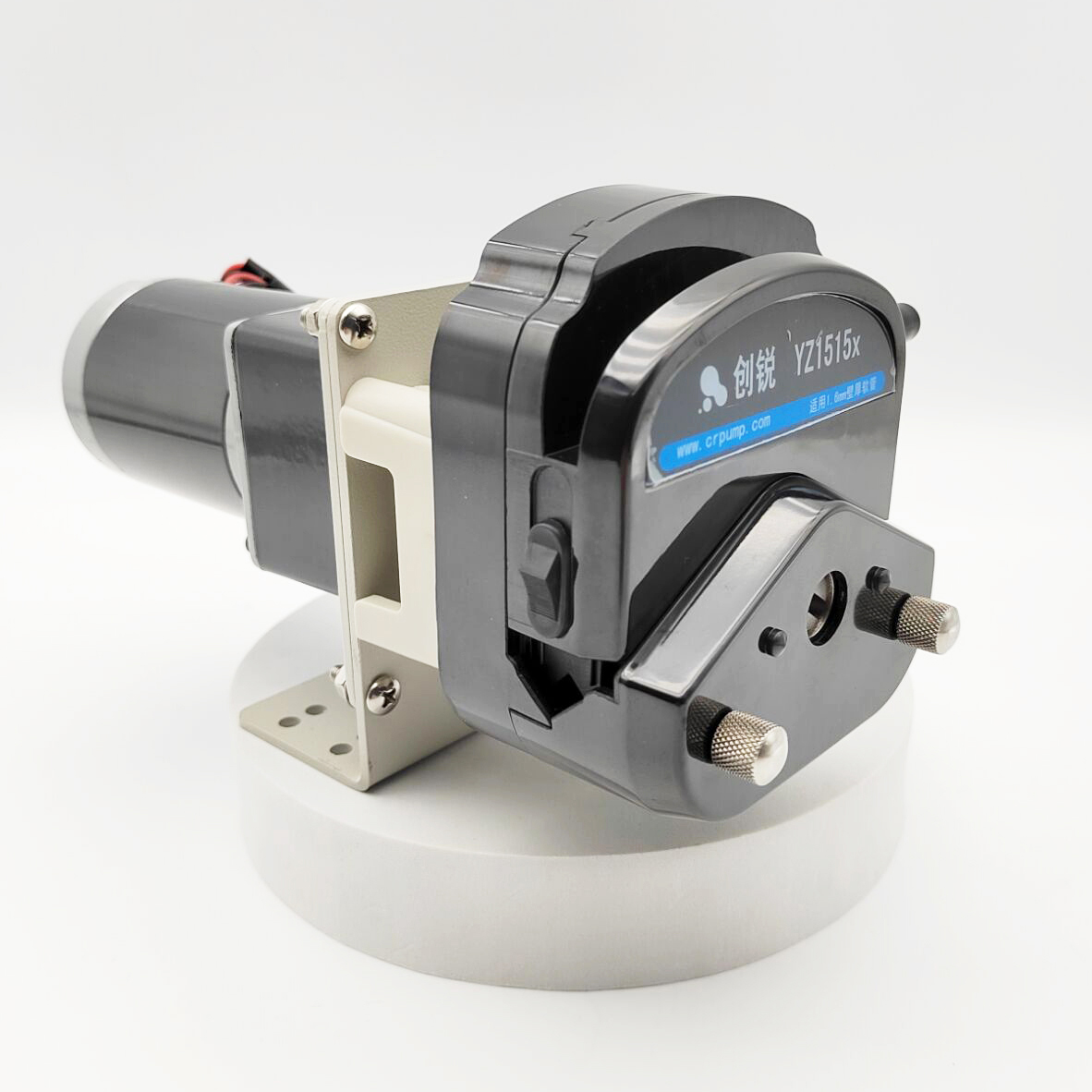

Pump Head:                                 YZ1515x

Max speed:                                  600 RPM

Max flow:                                     2280 ml/min

Tube model:                                 13# 14# 19# 16# 25# 17# 18#

MOQ:                                            1 Set

Certification:                                ce

Packaging & Delivery

Selling Units:                               Single item

Single package size:                    29X20X20 cm

Single gross weight:                    3.000 kg

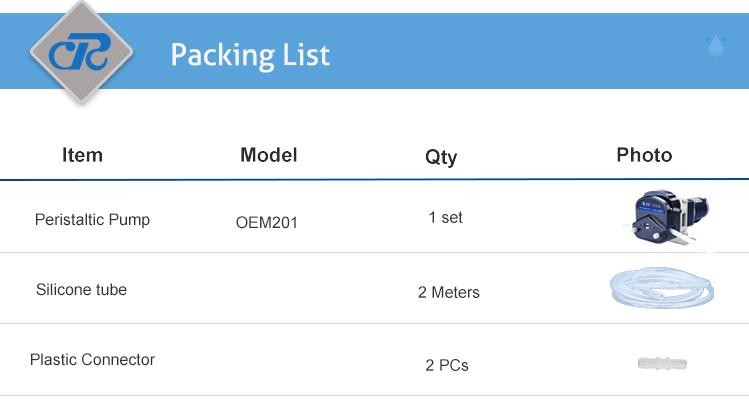

Package Type:1. The package contains a peristaltic pump and its accessories.
                         2, foam and carton packaging can protect the safety of the peristaltic pump during transportation.
                         3. If you have other packaging needs, please contact our sales staff in time.


Lead Time:

Quantity(Sets)	1 - 5	>5
Est. Time(days)	7	To be negotiated

Video Description

00:100:2

Customized OEM Peristaltic Pump

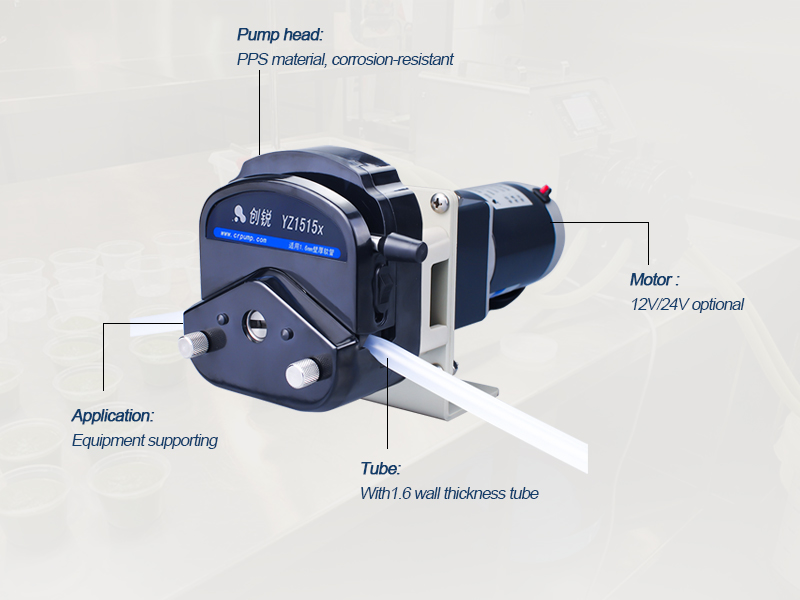

The OEM 201 small peristaltic pump have superb features built-in and flexible design to meet specific customer needs.Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump powerful functions.

The micro peristaltic pump suitable for wall thickness 1.6mm Silicon tube, Pharmed bpt etc. material
tube, flow range up to 2280 ml/min. The shell of pump head is made of PPS material and the roller is made of 304 SSS material. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .

Tube Model	ID (mm)	Wall Thickness (mm)	Max Flow (ml/min)	Speed（rpm）
13#	0.8	1.6	42	600
14#	1.6	1.6	162	600
19#	2.4	1.6	306	600
16#	3.1	1.6	492	600
25#	4.8	1.6	1020	600
17#	6.4	1.6	1740	600
18#	7.9	1.6	2280	600

Kindly reminder:

All the data in the Above chart is based on the water.

If your liquid is viscous or corrosive, then this selection guide is not suitable for you.

Contact us, we will help you with better selection.

The above data is for reference only.







Baoding Chuang Rui  Precision Pump Co., Ltd. Started production  of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
