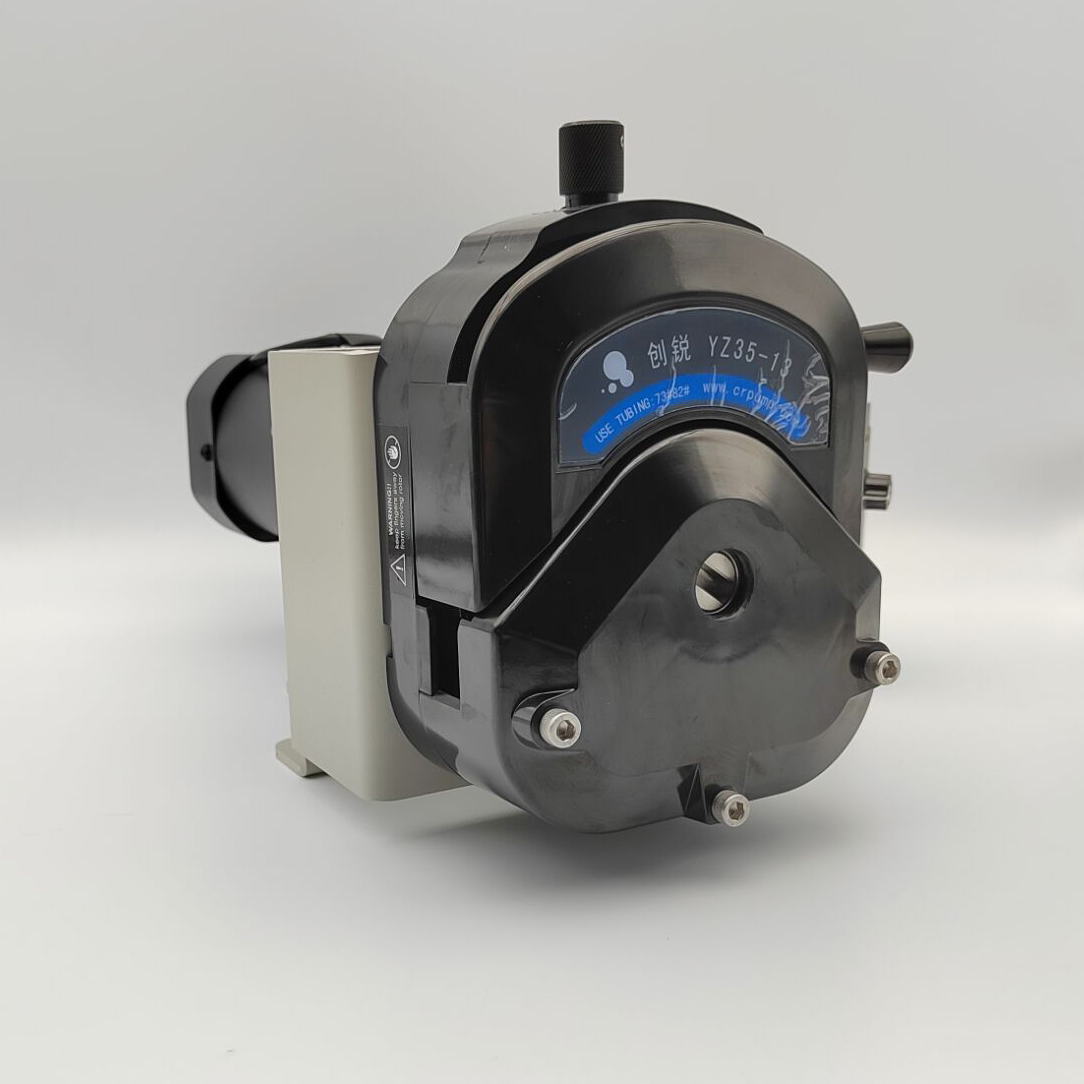

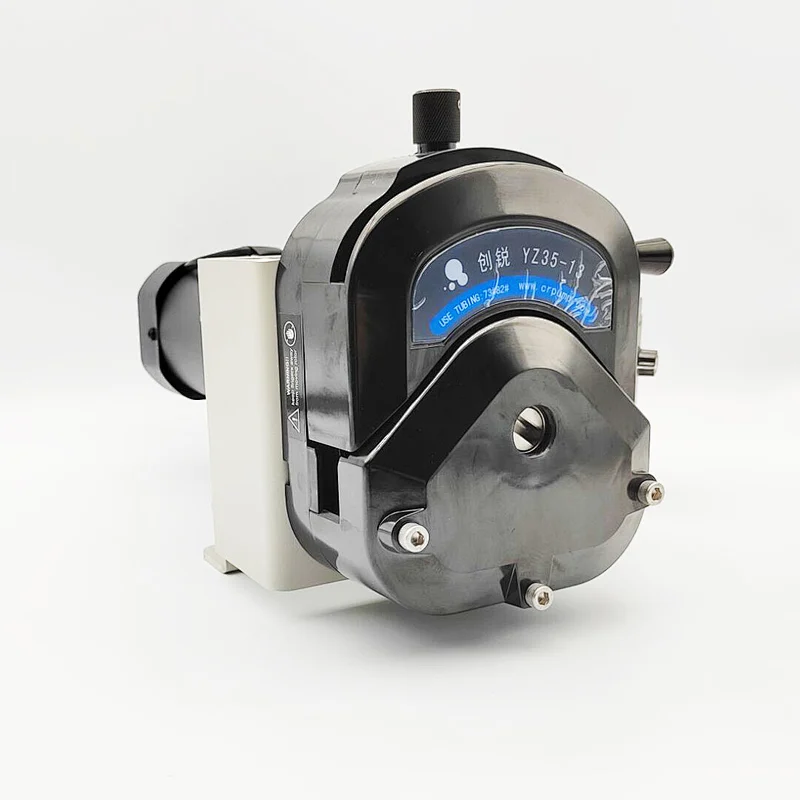

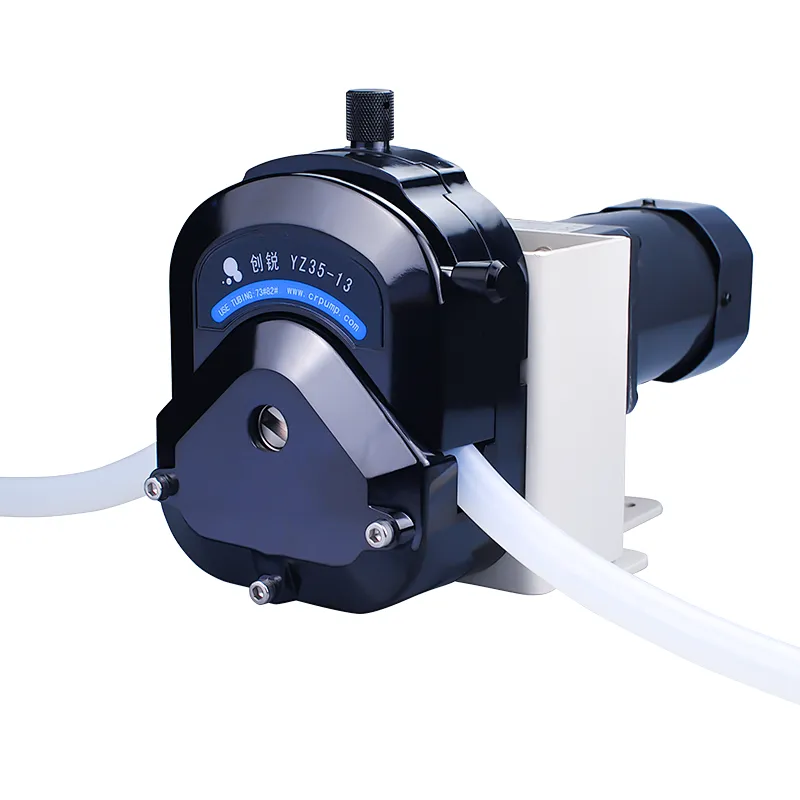

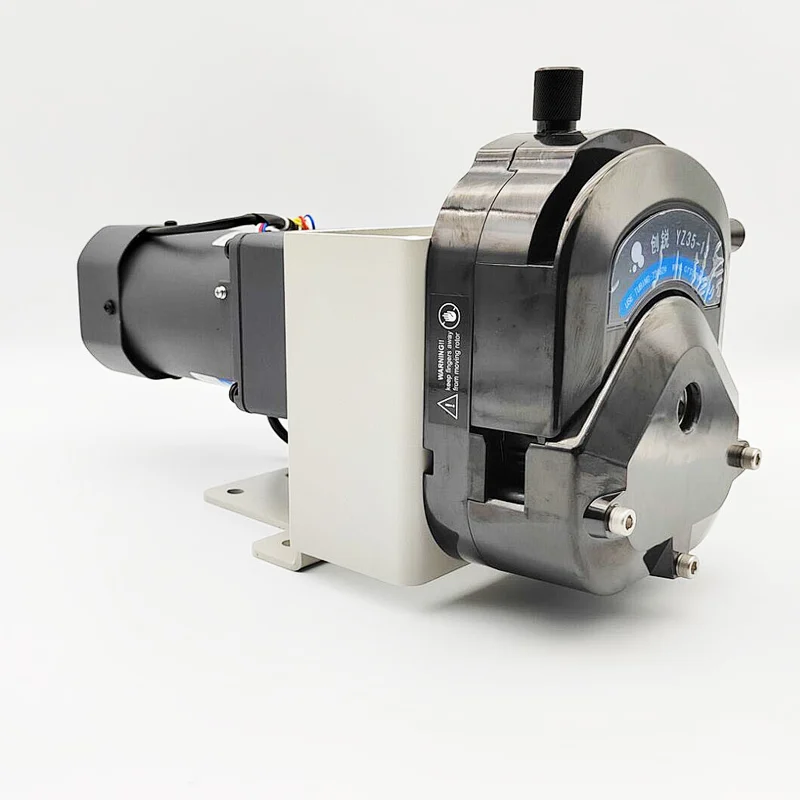

High Volume Peristaltic Pump Liquid Transfer 24v 12v DC Motor Dosing Pump 12L

High Volume Peristaltic Pump Liquid Transfer 24v 12v DC Motor Dosing Pump 12L

Model NO.: OEM200
Price:: US $ 400.00-400.00

Type:DC 12V/DC 24V
Maximum Head:5-10m
Maximum Flow Rate:12L/min

Quantity:

Product Description

Quick Details

Warranty: 1 year, 1 Year

Customized support: OEM, ODM

Brand Name: Chuangrui

Model Number: OEM200/YZ35-13

Place of Origin: Hebei, China

Application: Automotive Industry, Food and Beverage Industry, Machining, Metal and Equipment Manufacturers, Pharmaceutical industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions

Horsepower: none

Power Source: Electric

Pressure: low pressure

Structure: peristaltic pump

Cable Length: Other

Outlet Size: Max 13mm

Voltage: low pressure

Power: none

Theory: peristaltic pump

Model: OEM200

Pump head: YZ35-13

Motor: DC12V/24V

Flowrate: max 12000ml/min

Max speed: 600rpm

Pump head material: PPS

MOQ: 1 Set Packaging & Delivery

Selling Units: Single item

Single package size: 41X29X26 cm

Single gross weight: 8.000 kg

Package Type: 1.1 set of peristaltic pump/carton 2.Carton with plastic foam, make sure the peristaltic pump is safe during shipping.

Lead Time:

Quantity(Sets)	1 - 5	>5
Est. Time(days)	10	To be negotiated

Video Description

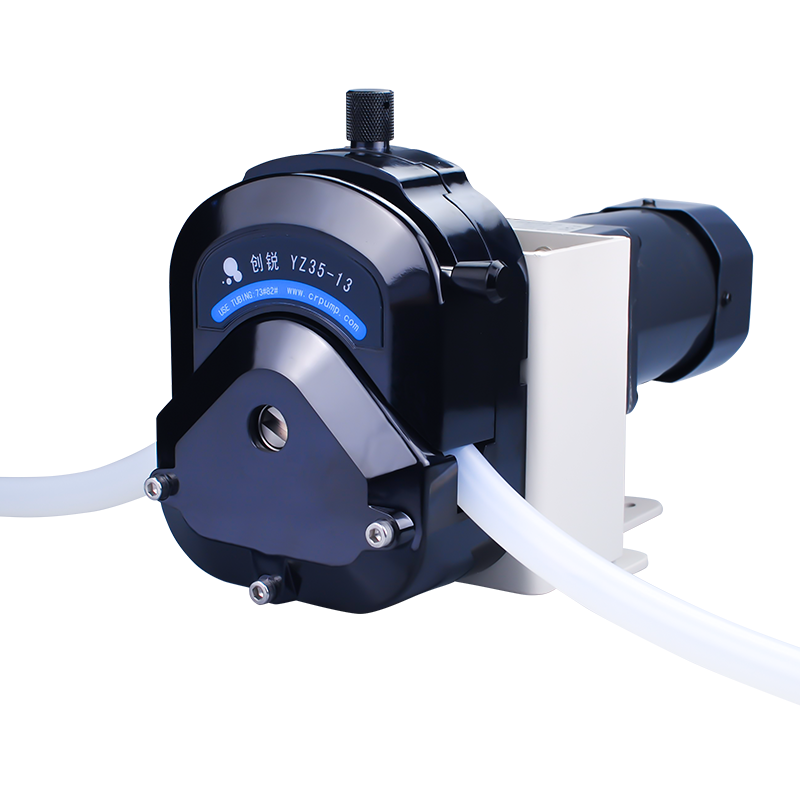

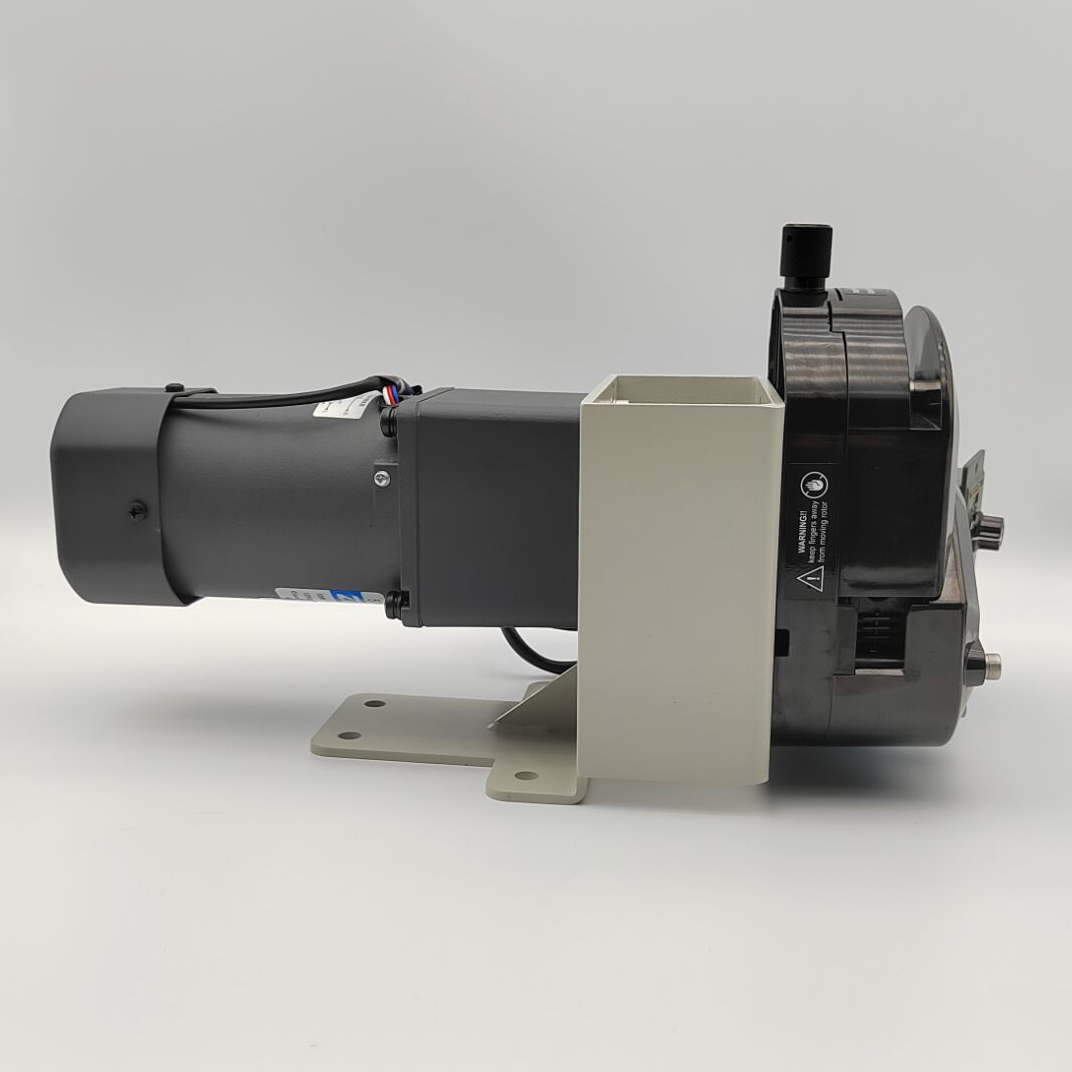

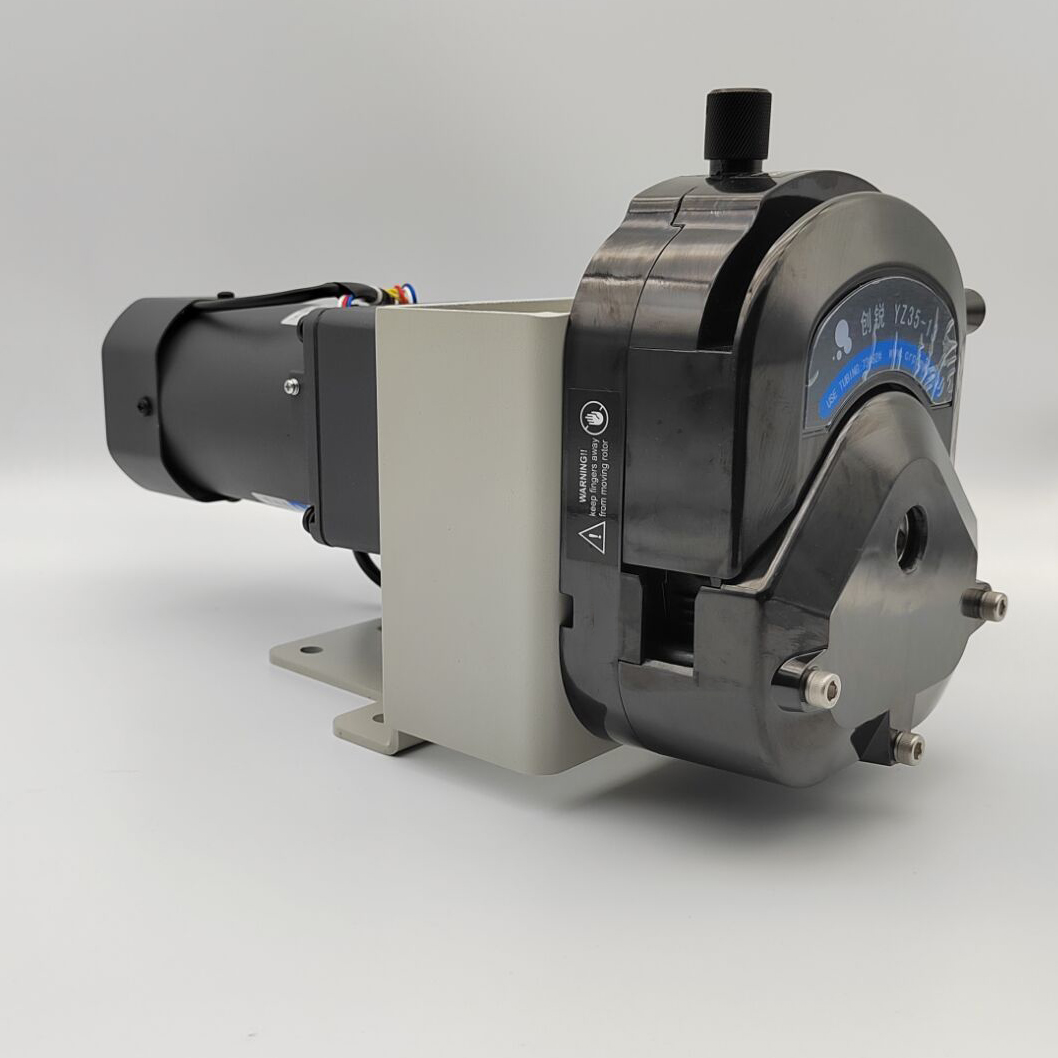

Customized OEM Peristaltic Pump

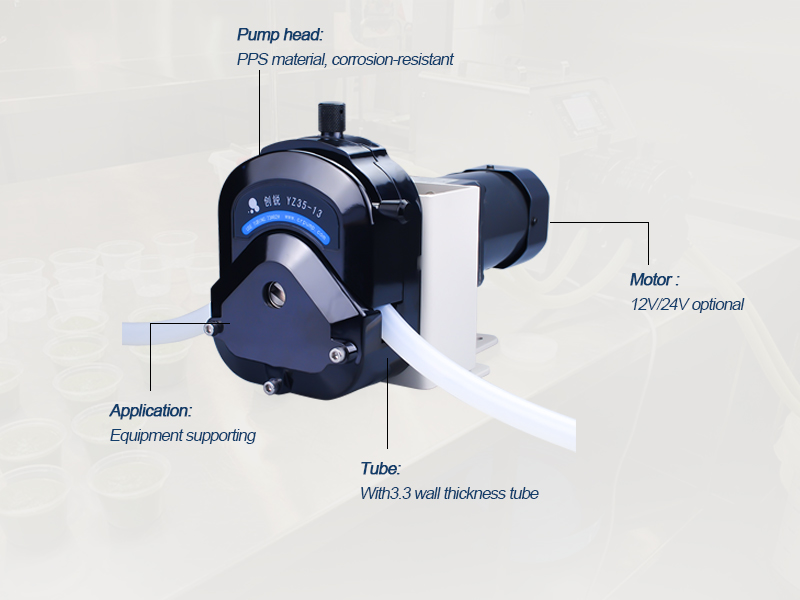

The OEM 200 peristaltic pump have superb features built-in and flexible design to meet specific customer needs.Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump powerful functions.

The peristaltic pump suitable for wall thickness 3.3mm Silicon tube, Pharmed bpt etc. material
tube, flow range up to12000 ml/min. The shell of pump head is made of PPS material and the roller is made of 304 SSS material. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .

Model	OEM200
Channel	1(default) or customizable
Speed range	Max 600 rpm
Max Flow	12000ml/min
Motor	DC 12V/24V Optional

Tube Model	ID (mm)	Wall Thickness (mm)	Max Flow (ml/min)	Speed（rpm）
73#	9.6	3.3	7400	600
82#	13	3.3	12000	600

Kindly reminder:

All the data in the Above chart is based on the water.

If your liquid is viscous or corrosive, then this selection guide is not suitable for you.

Application：Vending machine

Model：OEM208

Flow：Max 6L/min

Application：Vending machine

Model：OEM210
Flow：Max 3.4L/min

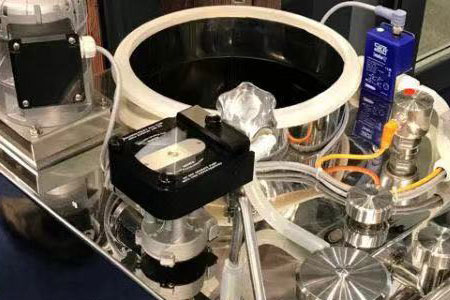

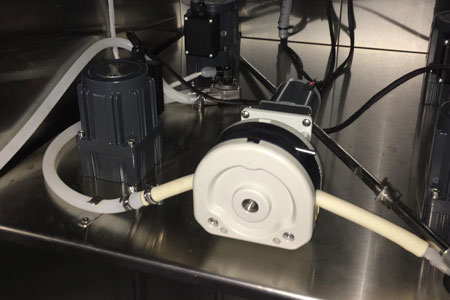

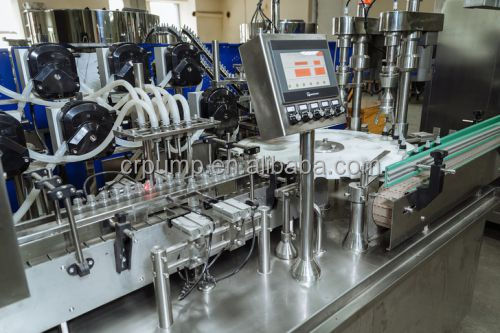

Application：Equipment supporting

Model：OEM200
Flow：Max 12L/min

Application：Automatic mixing machine

Model：OEM204
Flow：Max 1.7L/min
