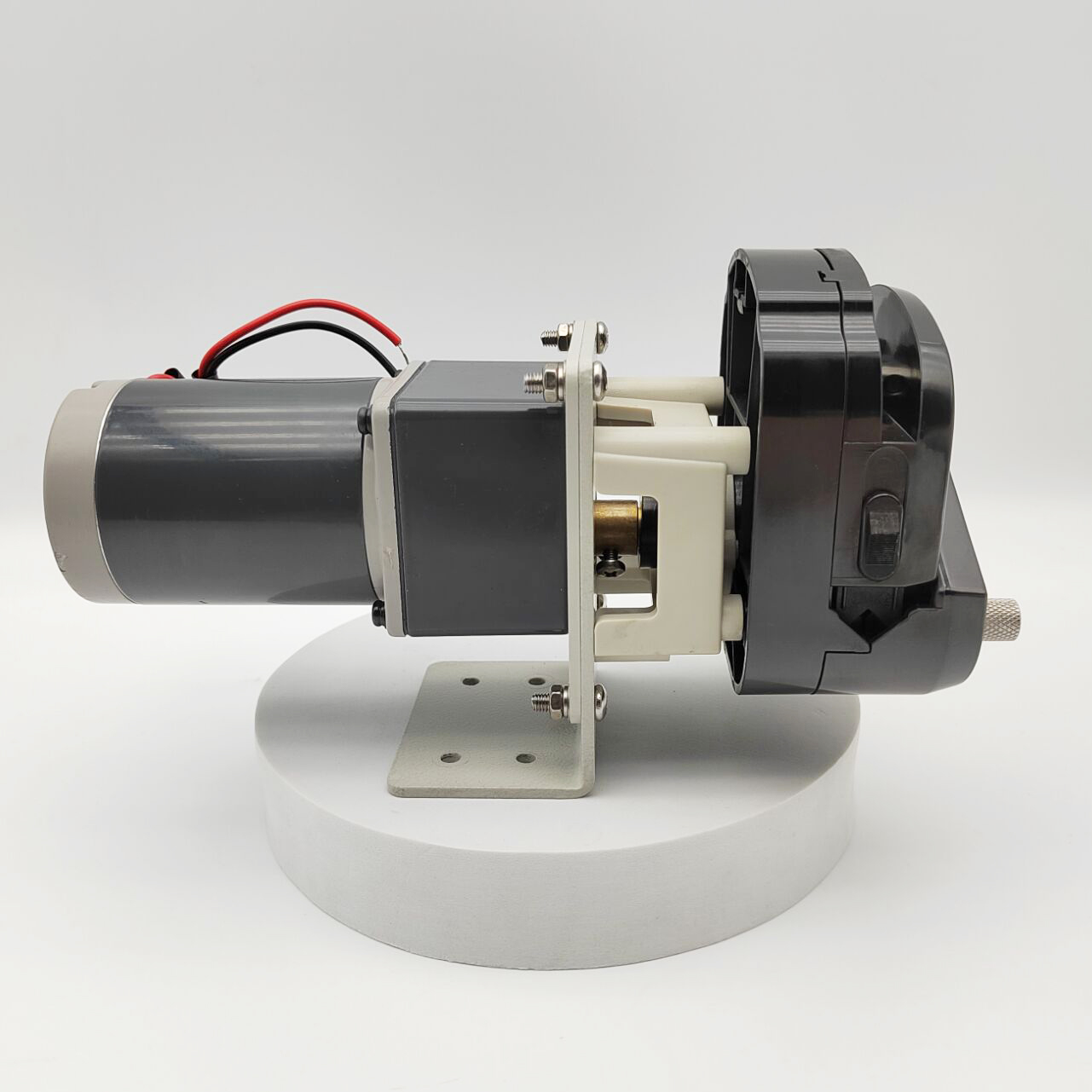

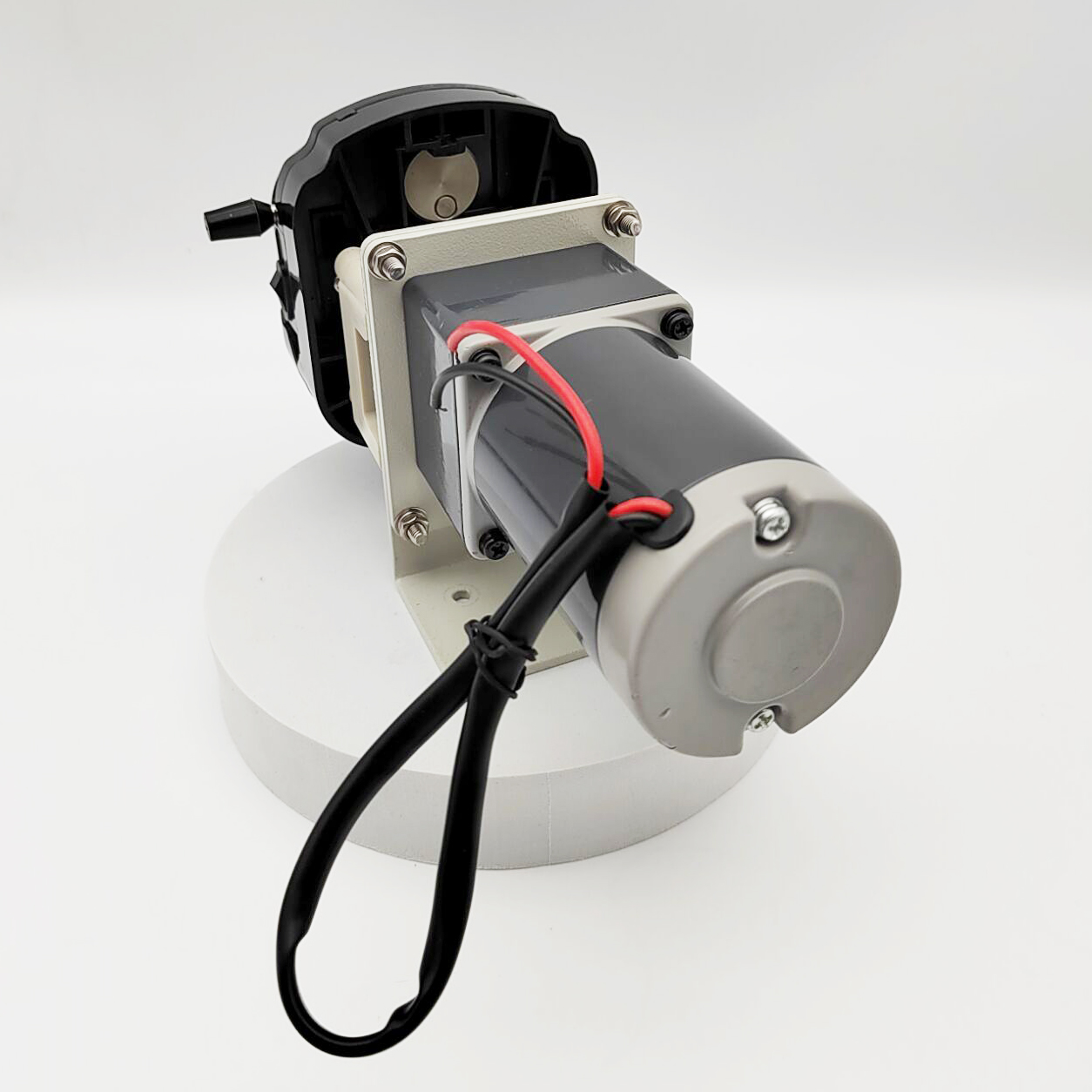

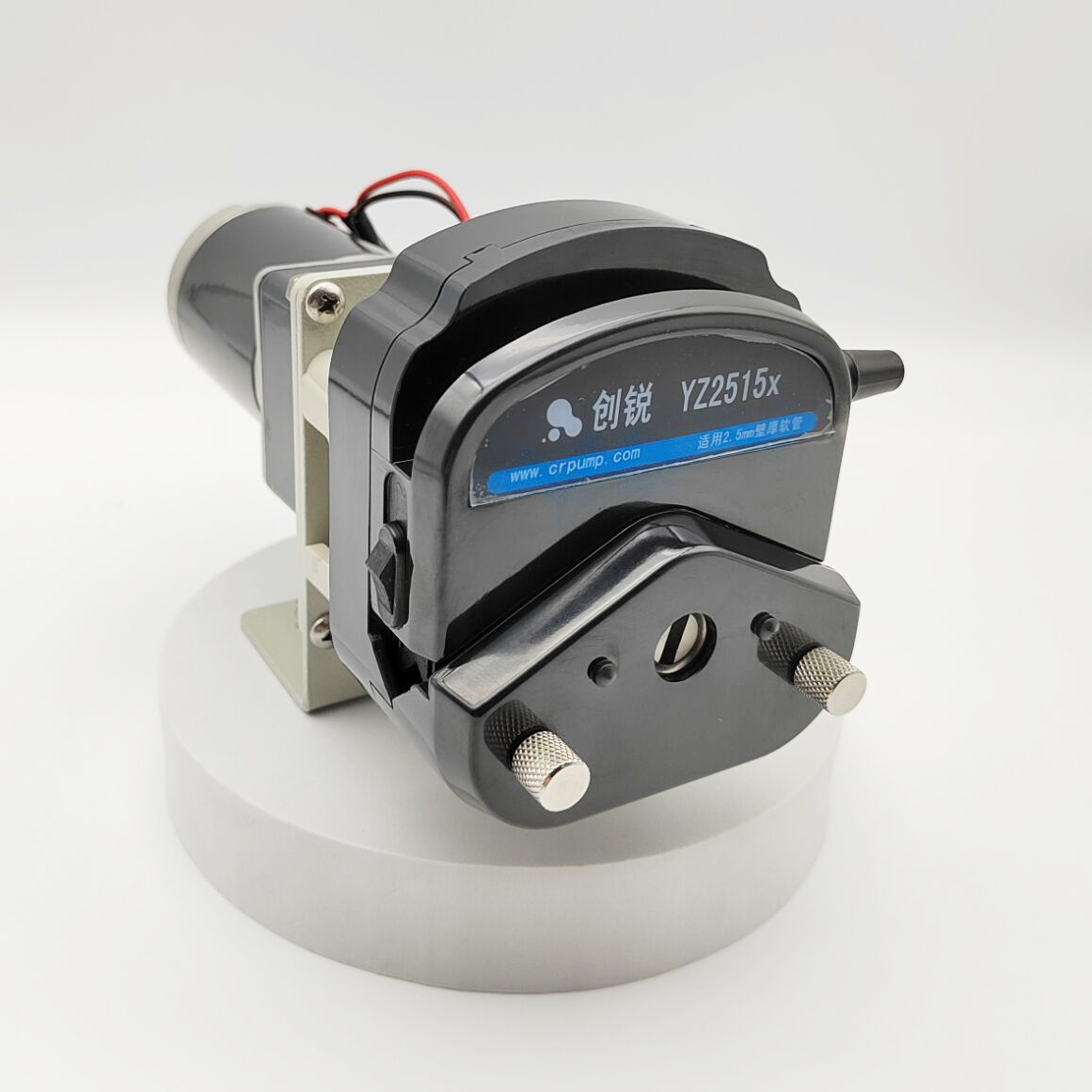

Micro small DC12V pump DC24V pump compact DC peristaltic dosing pump

Warranty:                                1 year, 1 Year Warranty(except Wearing Parts)

Customized support:             OEM, ODM, OBM

Brand Name:                          Chuangrui

Model Number:                      OEM202/YZ2515X

Place of Origin:                      Hebei, China

Application:                            Automotive Industry, Food and Beverage Industry, Pharmaceutical industry,
                                                Wastewater Transport and Flood Control, wastewater treatment,
                                                Water Treatment Solutions, transfer liquid

Horsepower:                           Other

Power Source:                         Electric

Pressure:                                 Low Pressure

Structure:                                gear motor peristaltic pump

Cable Length:                         other

Outlet Size:                             Max 6.4mm

Voltage:                                  DC12V or DC24V

Power:                                    15w

Model:                                   OEM202

Pump head:                           YZ2515x

Motor:                                   DC12V/24V

Max Flow:                             1740ml/min

Max speed:                           600rpm

Tube model:                          15# 24#

Weight:                                 1.5kg

Product name:                      Small peristaltic pump

Liquid:                                   Low thick liquid

Certification:                         ce, TUV, ISO9001

Packaging & Delivery

Selling Units:                       Single item

Single package size:            29X19X19 cm

Single gross weight:            3.000 kg

Package Type:                     1. The peristaltic pump is carton with plastic foam.
                                              2. The peristaltic pump can also be packed strictly
                                              according to the customer's requirements.

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	7	To be negotiated

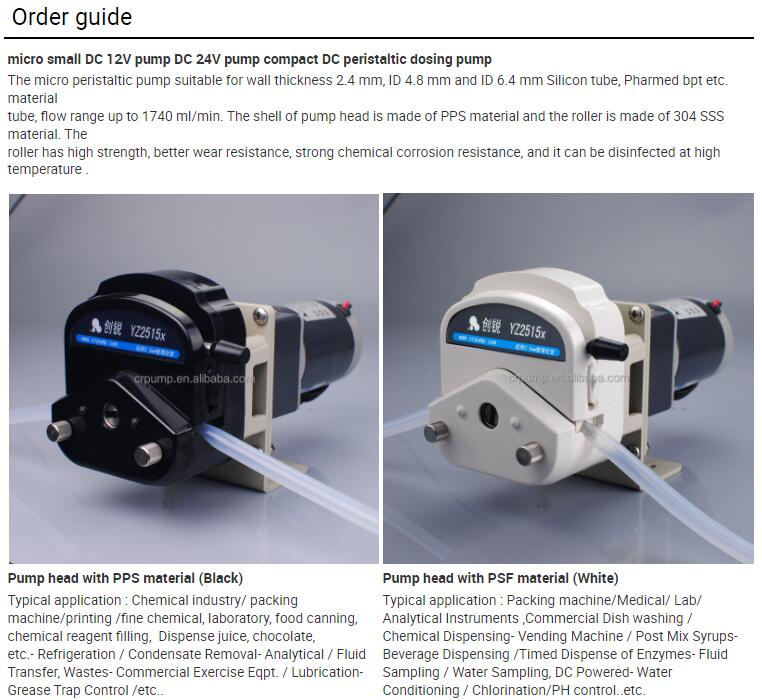

Order list for the small peristaltic pump OEM202 . Noted:  1.The defaulted model we will send is 202-1-6 with DC24V motor and flow is 1740ml/min 2.If you need other model pls contact us . 3, The speed controller is not defaulted, if you need pls contact our sales. 4, The defaulted pump head material is pps (black) 5, Support multiple channels customized, more info ,pls contact us.
Order Number	Model	Pump head	Motor Voltage	Motor Power	Motor Speed	Tube model	Flow rate (ml/min)
202-1-6	OEM202-1	YZ2515x	DC24V	15W	600rpm	24#	1740
202-1-4		YZ2515x			400rpm		1160
202-1-6		YZ2515x			600rpm		1740
202-1-4		YZ2515x			400rpm		1160
202-2-6	OEM202-2	YZ2515x	DC12V	15W	600rpm	24#	1740
202-2-4		YZ2515x			400rpm		1160
202-2-6		YZ2515x			600rpm		1740
202-2-4		YZ2515x			400rpm		1160

Tube specifications for the pump YZ2515x
Tube model	ID(mm)	OD(mm)	Standard material	Optional material
15#	4.8	8	Silicon tube	pharmed BPT/Norprene A-60-F..etc.
24#	6.4	11.2	Silicon tube	pharmed BPT/Norprene A-60-F..etc.



Order Guide

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4,for bottle filling ,what's your bottle's volume? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .
