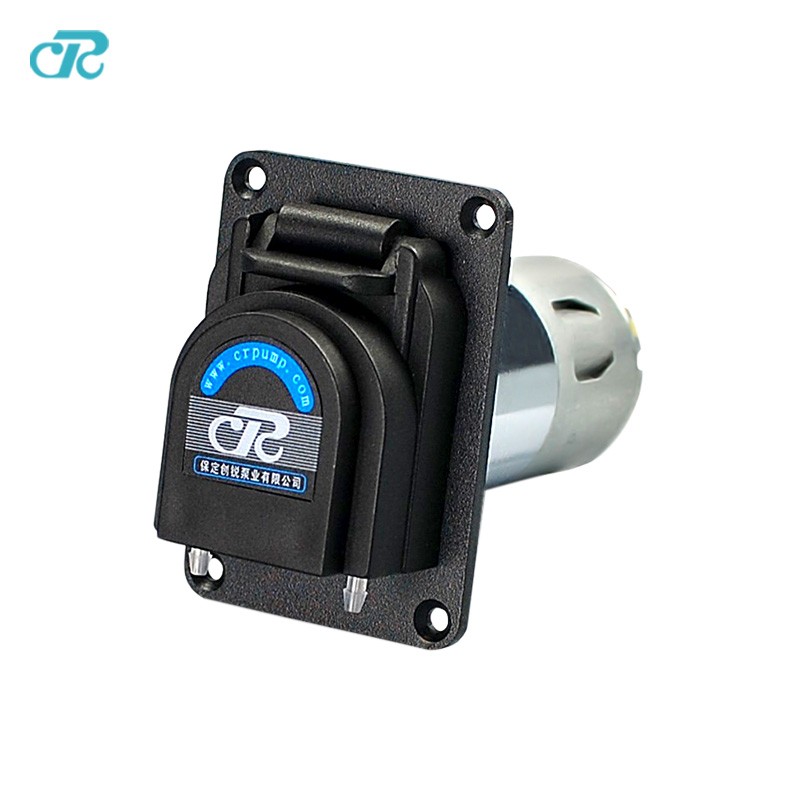

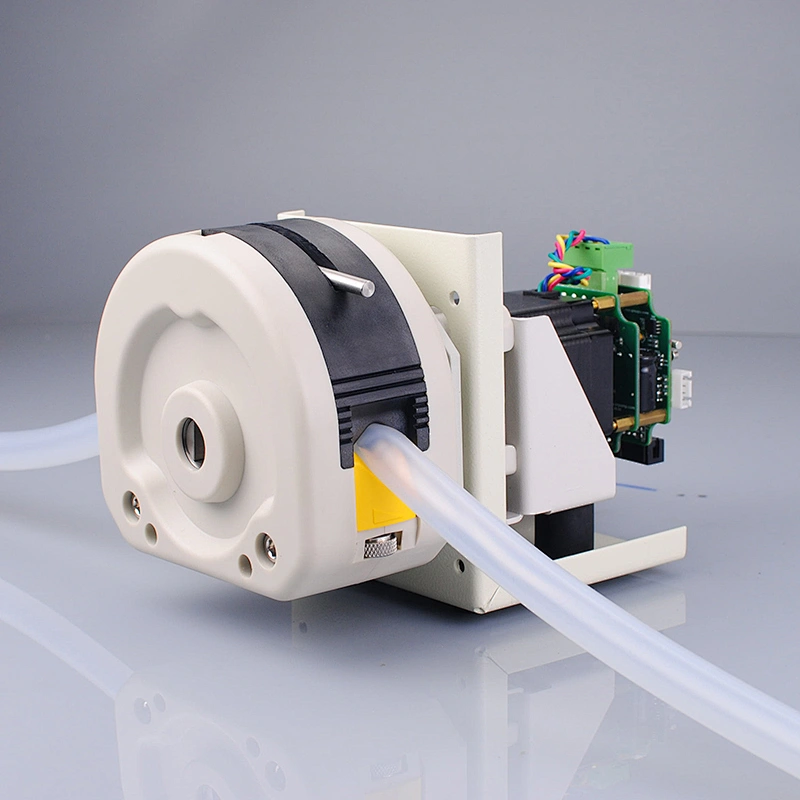

Chuangrui Customizable Peristaltic Pump For Supporting Packing Machine

Chuangrui Customizable Peristaltic Pump For Supporting Packing Machine

Model NO.: UCP308/KZ25
Price:: US $ 200.00-300.00 / set
Minimum order quantity: 1 set
Supply Ability: 1000.0 set / Month
Country of Origin: Tianjin,Shanghai

Quantity:

Product Description

Model:UCP308
Pump head:KZ25
Motor:Stepper motor
Flowrate:1.7-6000ml/min
Max speed:600rpm
Tube:15# 24# 35# 36#
Customized support:OEM
Customized support:ODM
Power Source:Electric
Structure:peristaltic pump
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:Chuangrui
Model Number:UCP308/KZ25
Application:Supporting Packing Machine
Horsepower:None
Pressure:Low Pressure
Cable Length:none
Outlet Size:Max 9.6mm
Voltage:Other

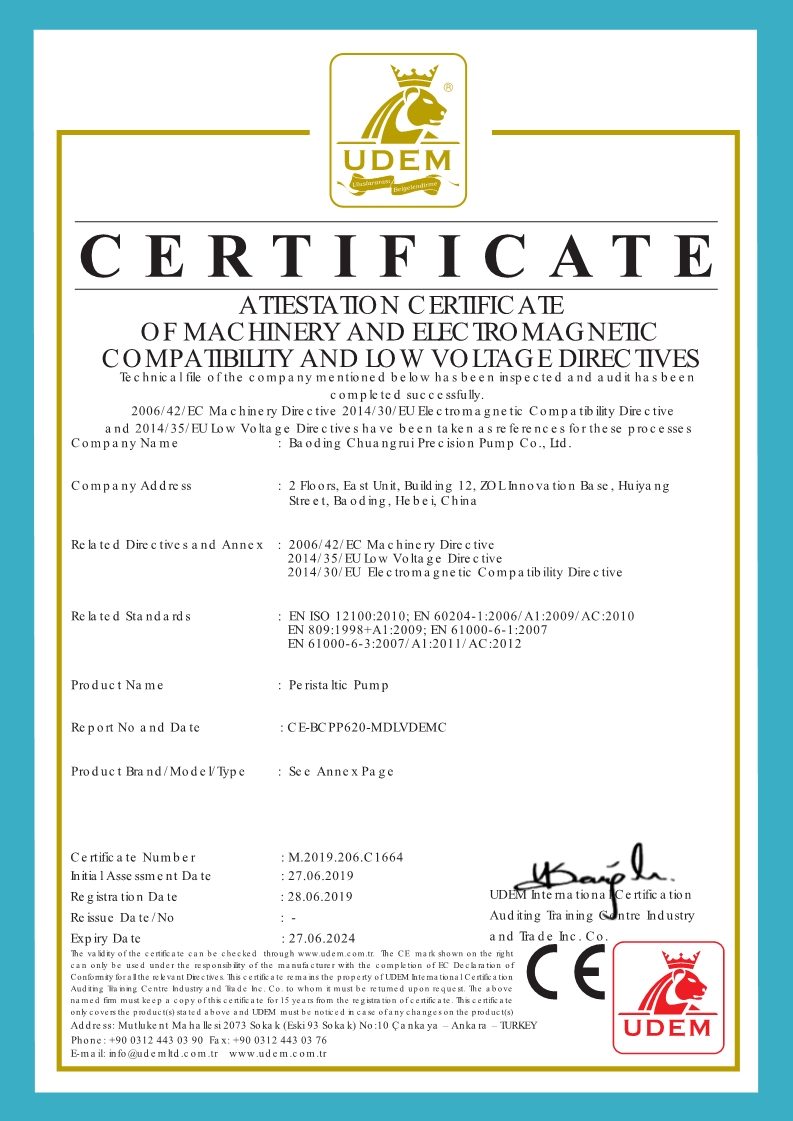

Certification:ce
Certification:TUV
Certification:ISO9001

Product Description

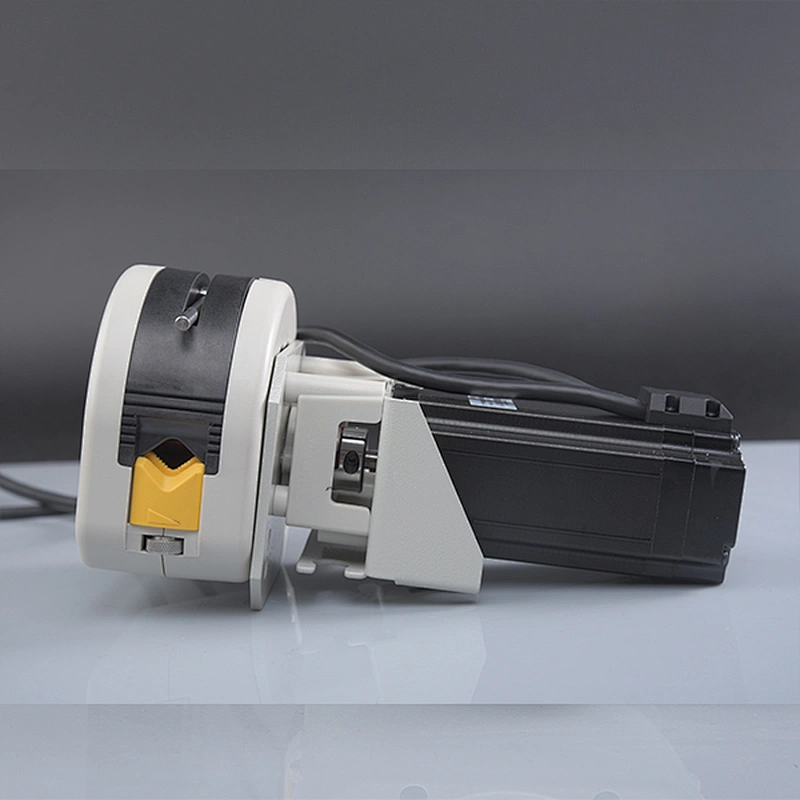

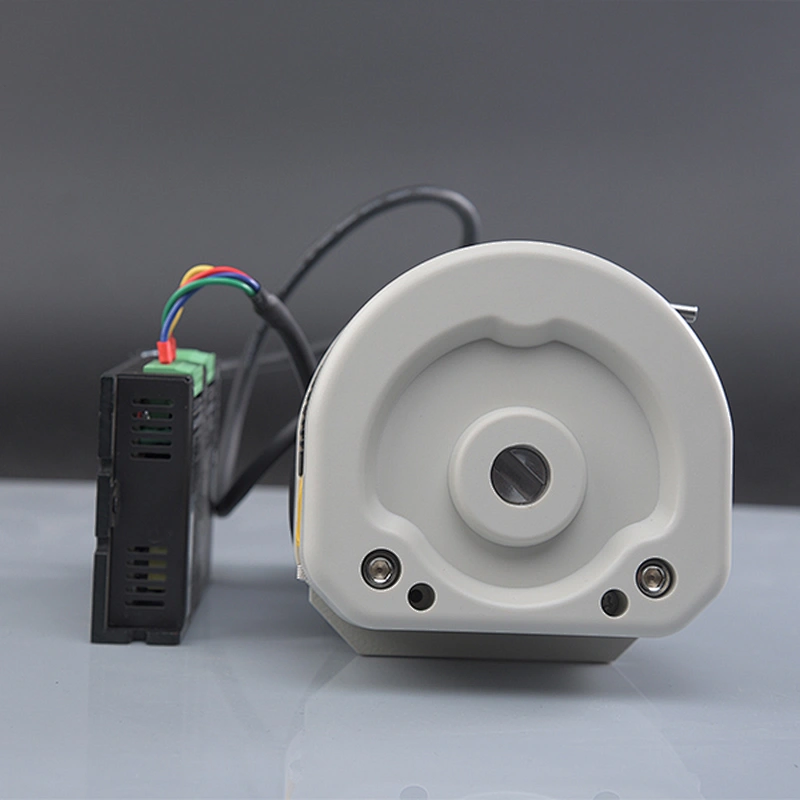

The UCP design started from the customer's requirements for small size, multi-function and high precision, and supports PLC control.
Stepping motors and conventional drivers are mostly used for packaging machinery. The speed of the pump can be controlled by pulse
to achieve precise filling. Chuangrui's unique control program can support analog control (0-5v 0-10v 4-20mA 0-10KHz) start-stop
control, direction control. It also supports RS485 communication protocol. The pump can be better embedded and combined with the customer's equipment.

Order guide

Our model KZ25 pump head series is a versatile OEM peristaltic pump with 4 different tube sizes optionial, with adjustable speed motor available. It is one of the top selling OEM pumps. You will often find these peristaltic tubing pumps in vending machines, soft serve ice cream machines, milk vending machines, printers and other ink machines.The max flow up to 6000 ml/min

1. The corrosion resistance UCP308 peristaltic pump has superb features built-in and flexible design to meet specific customer needs.
2. Flexible rotor assembly, occlusion can be adjusted automatically, which give this peristaltic pump a longer life.

Order list for the small peristaltic pump UCP308

Noted:

1.The defaulted model we will send is UCP308B

2.Defaulted channel number is 1 ,If you need multiple pls contact us

3, The speed controller is not defaulted, if you need pls contact our sales.

4, The defaulted pump head material is pps (black), If you need other material pls contact our sales

5, Support multiple channels and speed customized, more info ,pls contact us.

Order Number

Drive Model

Pump head

Motor

Control method

Tube model

Flow

UCP308A

KZ25

(PPS)

Stepper

motor

User Control

600

6000ml/min

UCP308B

CR56

KZ25(pps

stepper motor

User Control

600

6000ml/min

UCP308C

CRSCLNZFJ

Control by control switch

300

3000 ml/min

UCP308D

CRSCLNZM

Control by control switch

300

3000 ml/min

UCP308E

CRSCLNZ5V

0-5V /start stop/direction

300

3000 ml/min

UCP308F

CRSCLNZ10V

0-10V /start stop/direction

300

3000 ml/min

UCP308G

CRSCLNZ20A

4-20mA /start stop/direction

300

3000 ml/min

UCP308H

CRSCLNZ10K

0-10Khz /start stop/direction

300

3000 ml/min

UCP308I

CRSCLNZRS

RS485 Communication protocol

300

3000 ml/min

Tube specifications for the pump KZ25
Tube model	ID(mm)	OD(mm)	Standard material	Max Flow with 400rpm	Max Flow with 600rpm
36#	9.6	14.4	Silicon tube	4000	6000
35#	7.9	12.7	Silicon tube	2800	4200
24#	6.4	11.2	Silicon tube	2000	3000
15#	4.8	9.6	Silicon tube	1200	1800

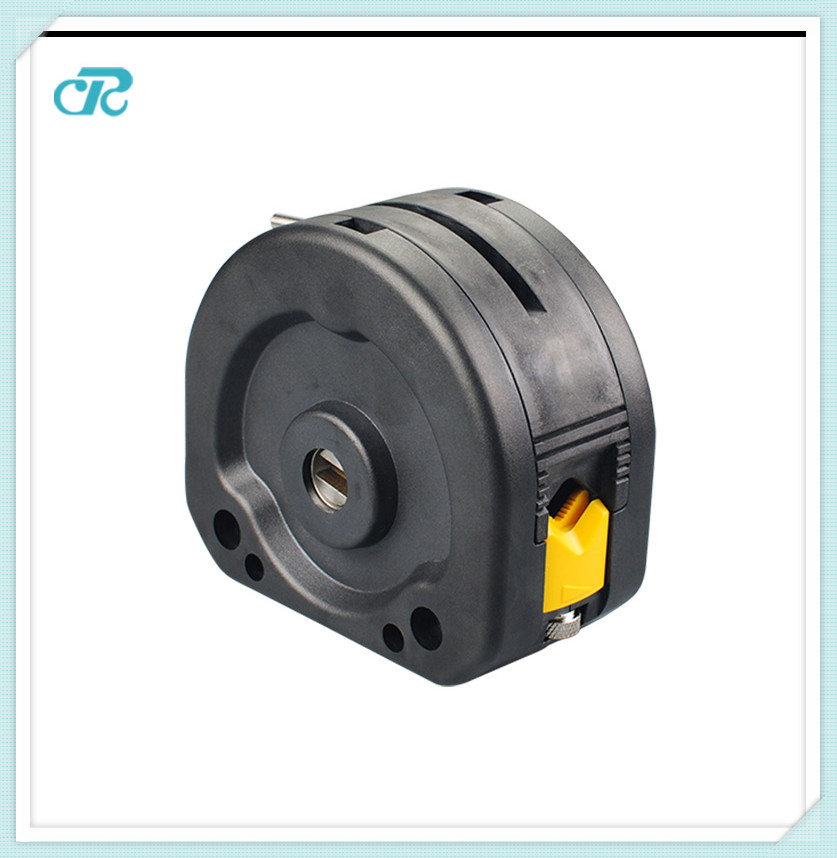

Pump head with PPS material (Black)

Typical application : Chemical industry/ packing machine/printing /fine chemical, laboratory, food canning, chemical reagent filling, Dispense juice, chocolate,
etc.- Refrigeration / Condensate Removal- Analytical / Fluid Transfer, Wastes- Commercial Exercise Eqpt. / Lubrication- Grease Trap Control /etc..

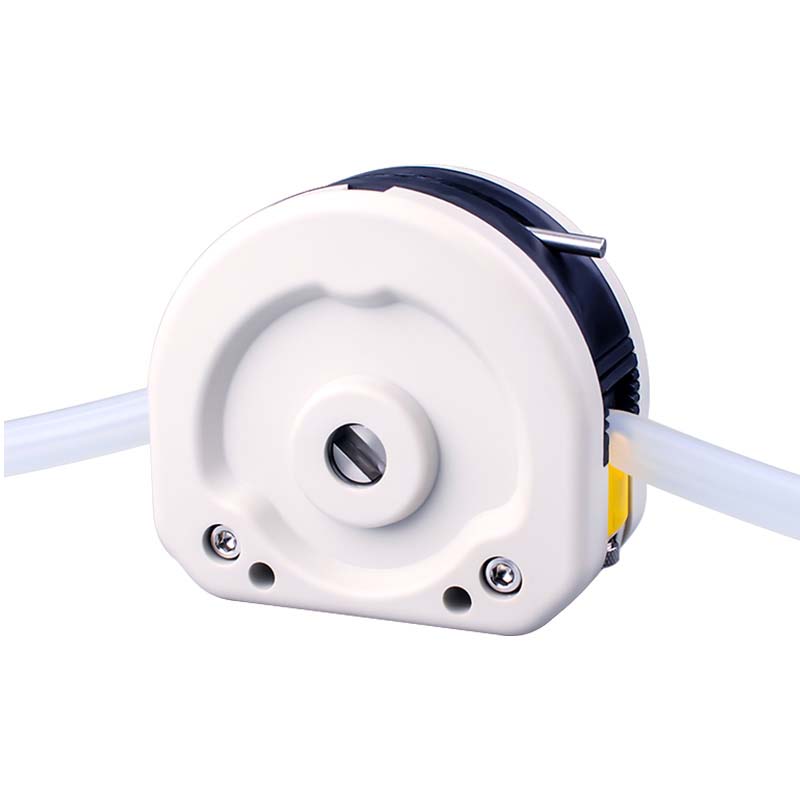

Pump head with ABS material (White)

Typical application : Packing machine/Medical/ Lab/ Analytical Instruments ,Commercial Dish washing / Chemical Dispensing- Vending Machine / Post Mix Syrups- Beverage Dispensing /Timed Dispense of Enzymes- Fluid Sampling / Water Sampling, DC Powered- Water Conditioning / Chlorination/PH control..etc.

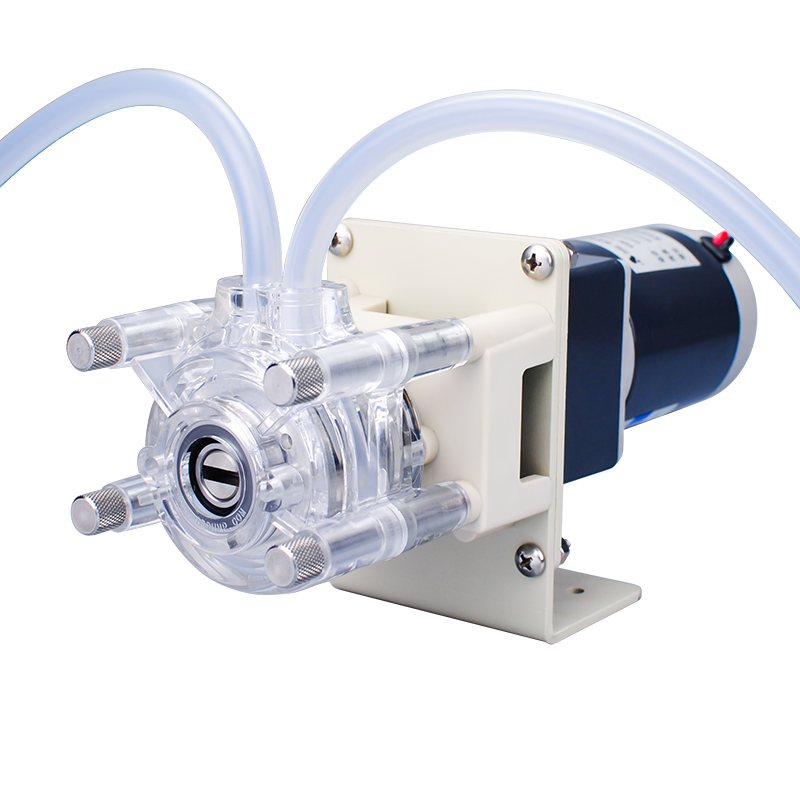

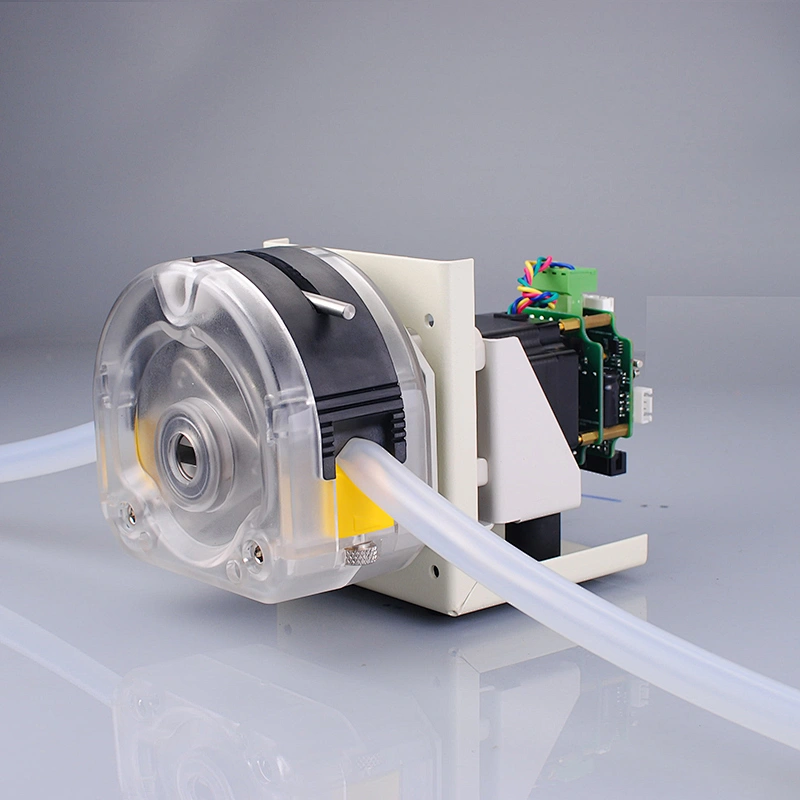

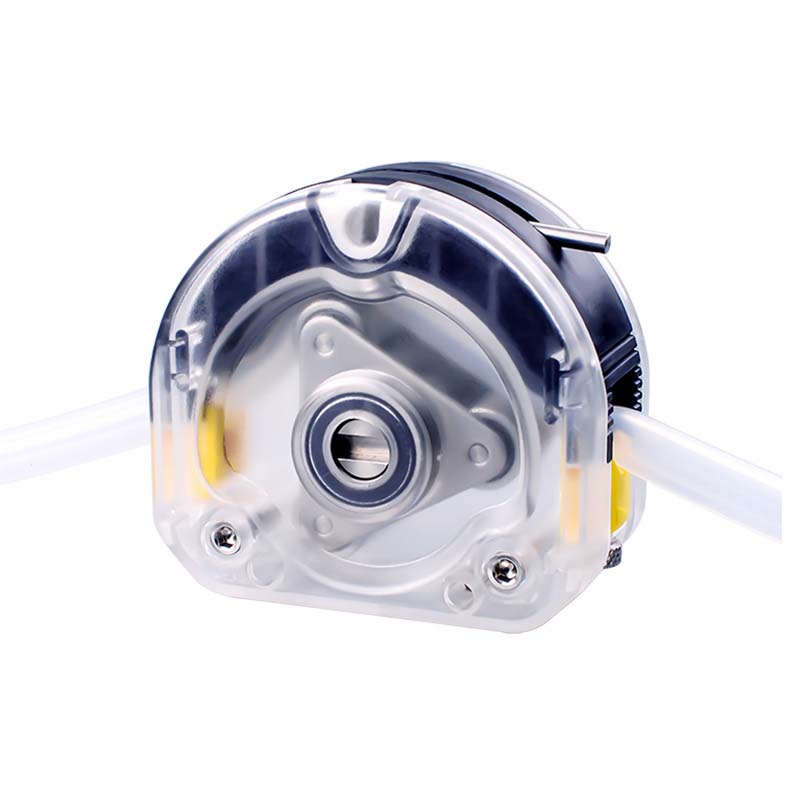

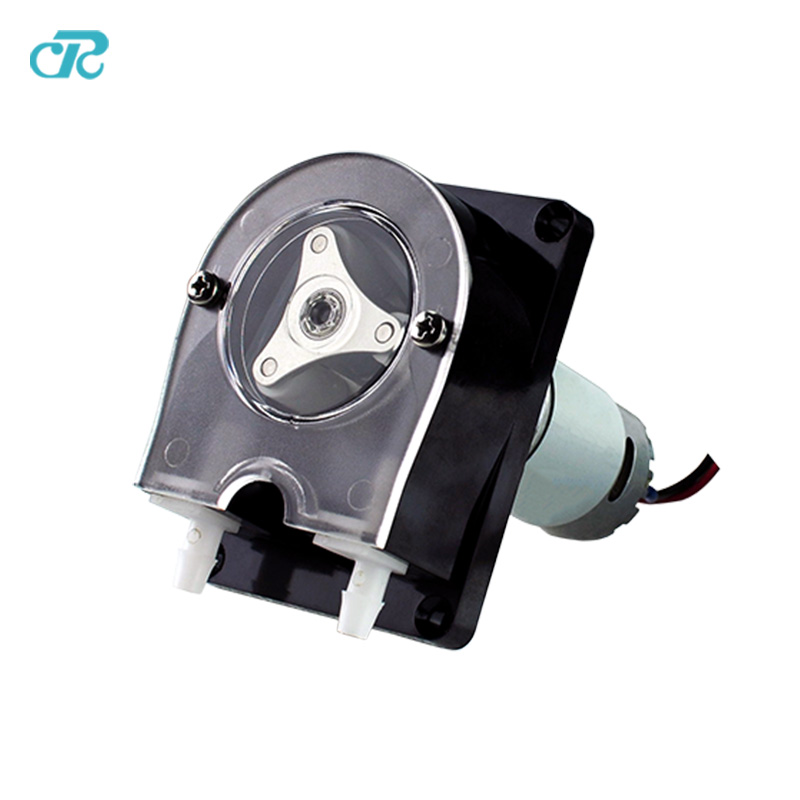

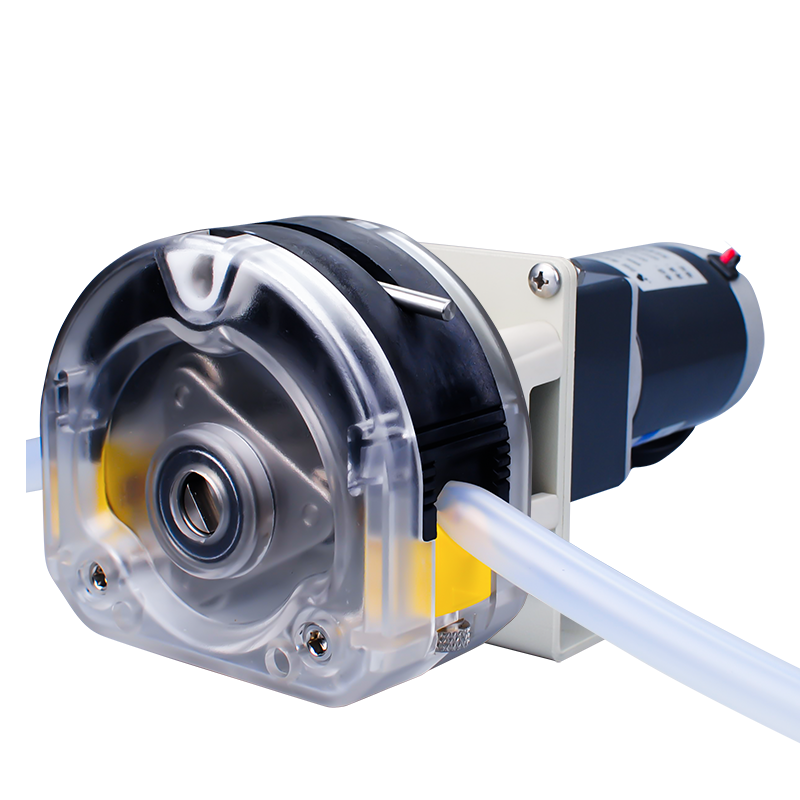

Pump head with PC material (TRANSPARENT)

Typical application : Packing machine/Medical/ Lab/ Analytical Instruments ,Commercial Dish washing / Chemical Dispensing- Vending
Machine / Post Mix Syrups- Beverage Dispensing /Timed Dispense of Enzymes- Fluid Sampling / Water Sampling, DC Powered- Water
Conditioning / Chlorination/PH control..etc.

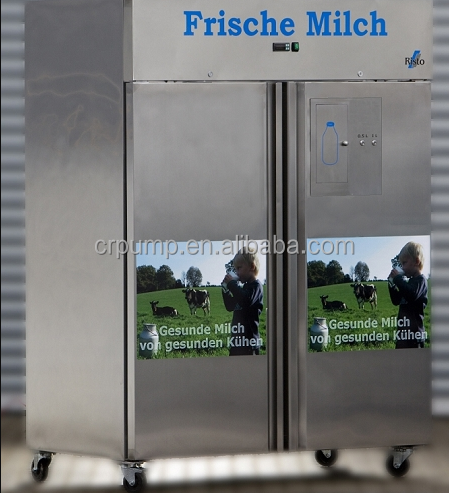

Application For milk vending

Application For tomato sauce application

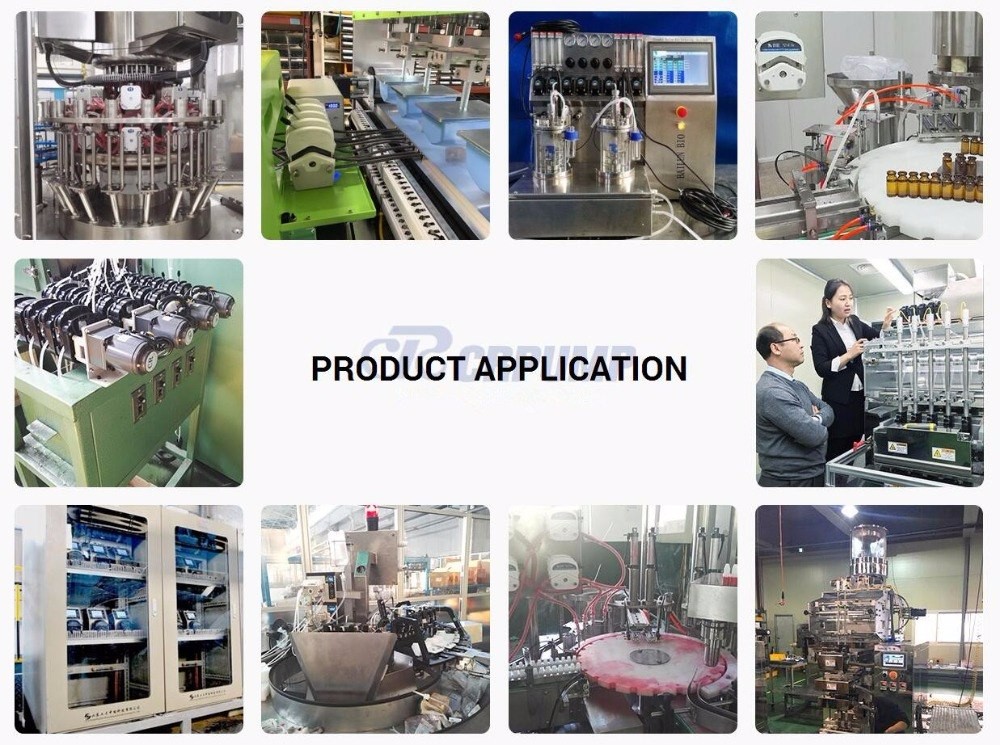

Typical application

Peristaltic pump application

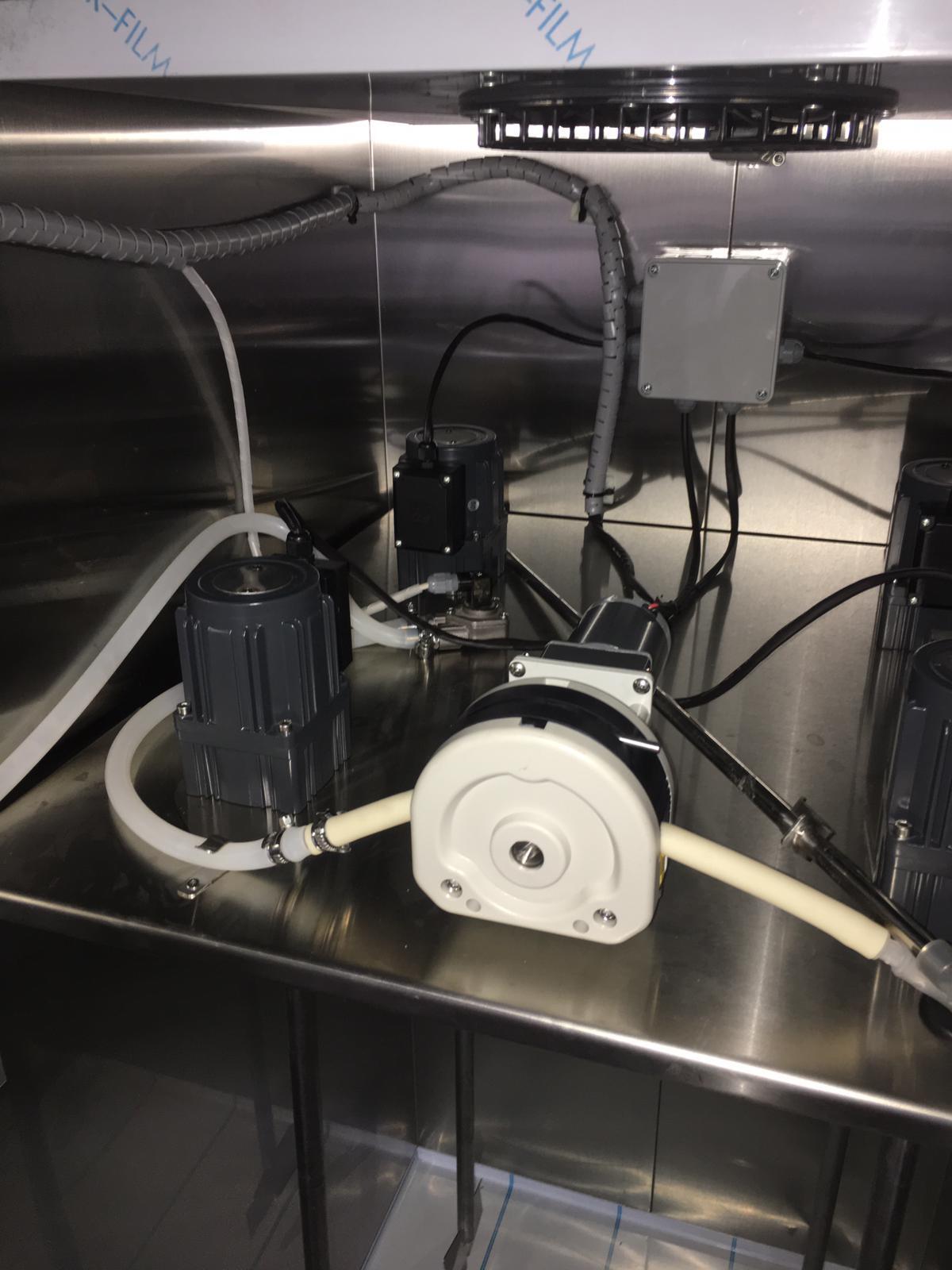

One of our customer who use this DC24V peristaltic hose pump for the milk vending machine . the function is to transfer milk from an tank to the 1 litler bottle . There will be an flow meter to control the flow of the pump .

Peristaltic pump hose are easy to Clean and hygienic. and easy to change ,reduce the maintenance of the peristaltic hose pump .

Order Guide

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4,for bottle filling ,what's your bottle's volume? mlHow many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Packing & Delivery

OEM204/ZN25

Max flow : 1740 ml/min

OEM206/WP300

Max flow : 1000 ml/min

OEM208/KZ25

Max flow : 6000 ml/min

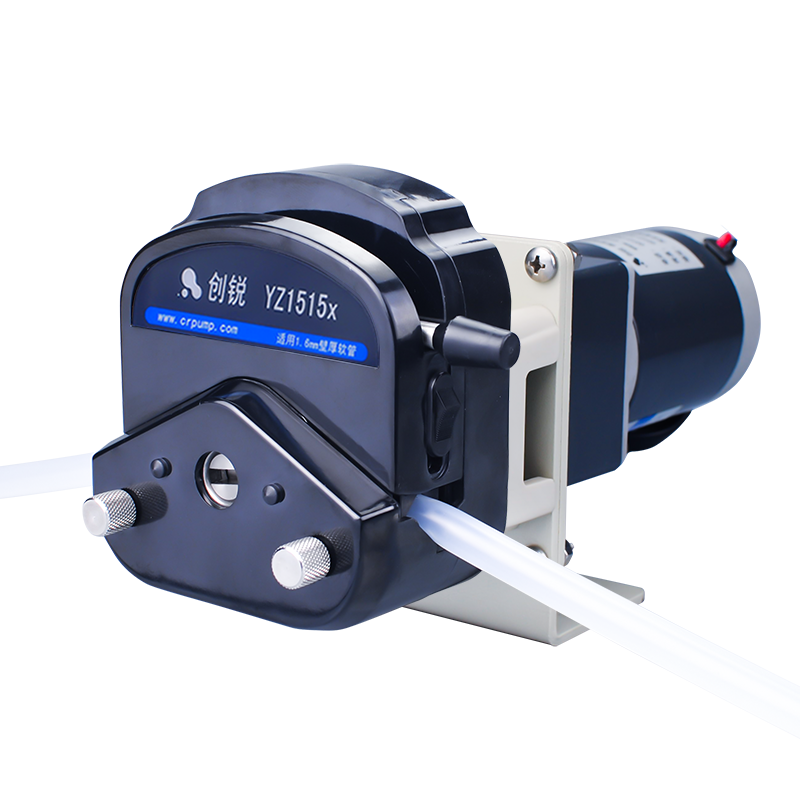

OEM201/YZ1515x

Max flow : 2280 ml/min

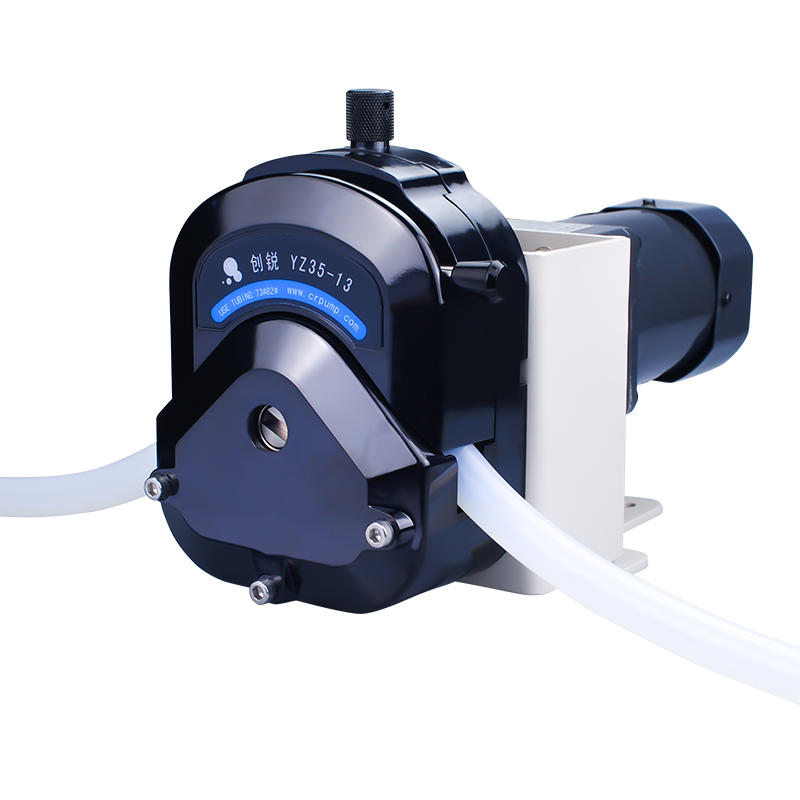

OEM200/YZ35-13

Max flow : 12000 ml/min

OEM209/WP110

Max Flow : 18ml/min
