Chuangrui Small Flow OEM Flue Gas Analysis Fermentation Tanks Detergent Peristaltic Pump

Chuangrui Small Flow OEM Flue Gas Analysis Fermentation Tanks Detergent Peristaltic Pump

Model NO.: OEM206/WP300

Quantity:

Product Description

Theory:peristaltic pump
Model:OEM206
Pump head:WP300
Voltage:DC12V DC24V
Max flow:1000 ml/min
Liquid:low thick
Customized support:OEM
Customized support:ODM
Customized support:OBM
Power Source:Electric
Structure:Peristaltic Pump
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:ChuangRui
Model Number:OEM206/WP300
Application:Metal and Equipment Manufacturers
Application:wastewater treatment
Application:Water Treatment Solutions
Application:Washing Machine
Horsepower:Other
Pressure:Low Pressure
Cable Length:other
Outlet Size:Max 7.9mm
Voltage:AC220
Power:6W

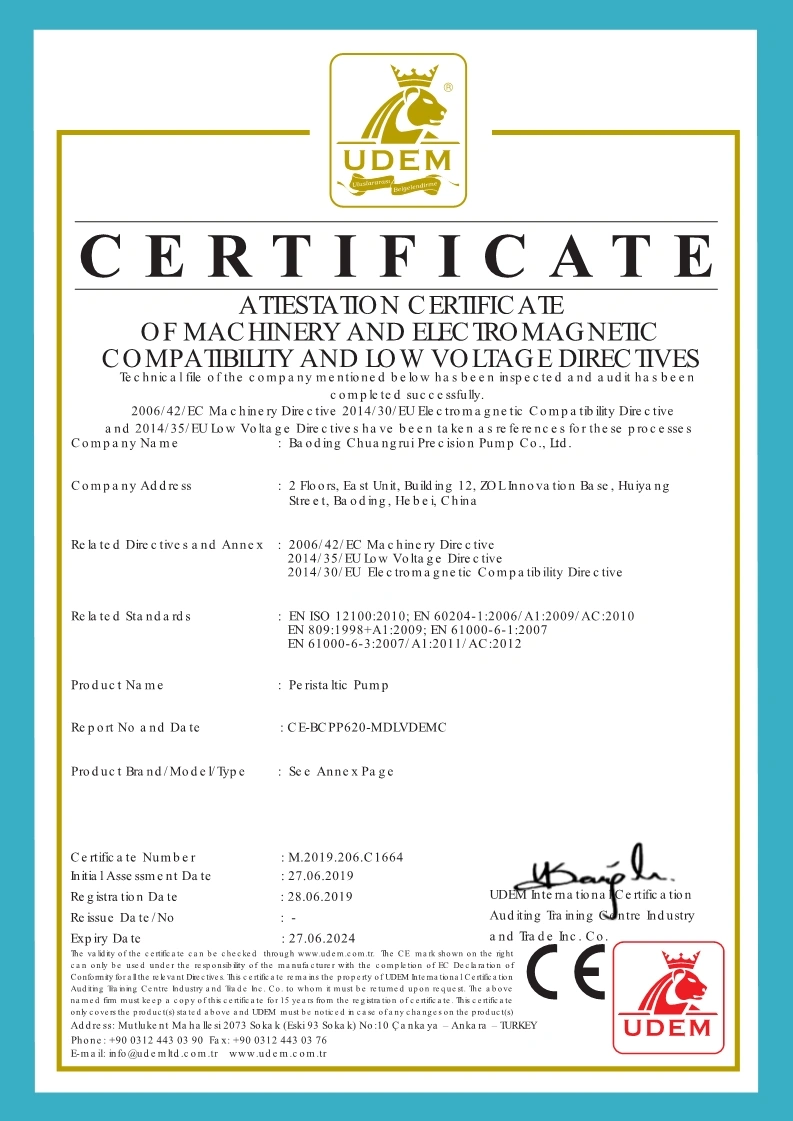

Certification:ce
Certification:ISO9001

Product Description

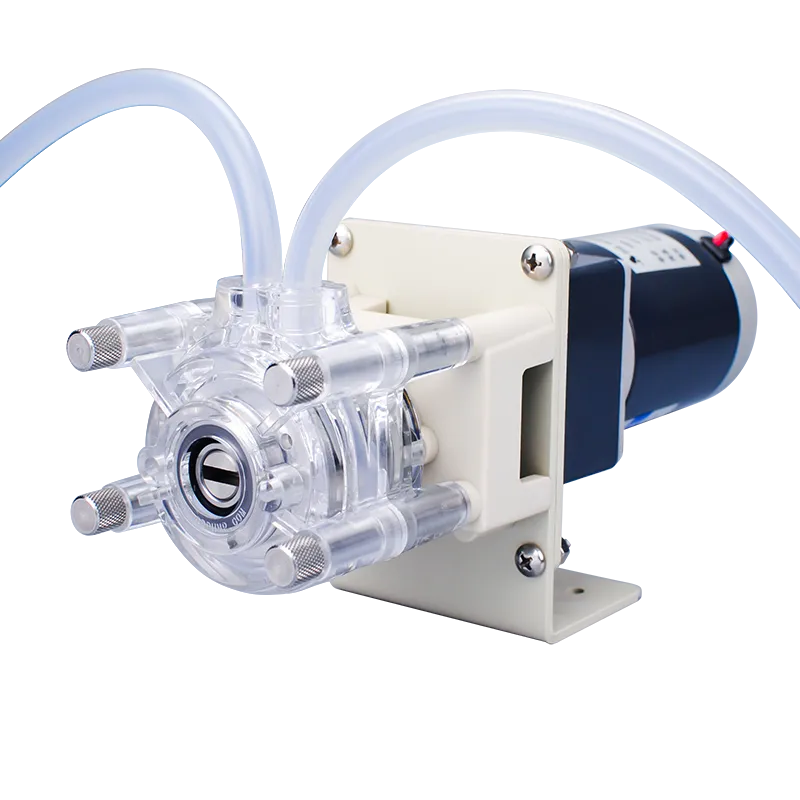

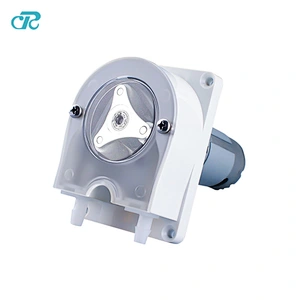

small peristaltic pump

Custom mounting brackets available.
- Ideal for fluid transfer application which require high accuracy and repeatability.
- Pump head is compact and simple in design with same side tubing entry/exit.
- Perfect for space-limited applications.
- Pump heads are compact and easy to integrate into your OEM applications.
- Call for more information on our OEM services.

Specifications

Order number	Model	Pump head	Motor Voltage	Motor speed	Flow with tube 18#
20624125	OEM206-1	WP300-3	DC24V	125rpm	400 ml/min
20624300	OEM206-1	WP300-3	DC24V	300 rpm	1000 ml/min
20612300	OEM206-1	wp300-3	DC12V	300 rpm	1000 ml/min

Tube model	ID(mm)	OD(mm)	Max Flow with 125 rpm(ml/min)	Max Flow with 300 rpm(ml/min)
18#	7.9	11.2	400	1000
17#	6.4	9.6	300	750
25#	4.8	8	200	500
14#	1.6	4.8	20	50

Noted: The default order number is 20624300 with silicon tube 18# 1 meter

If you need other model pump or tube pls contact our sales .

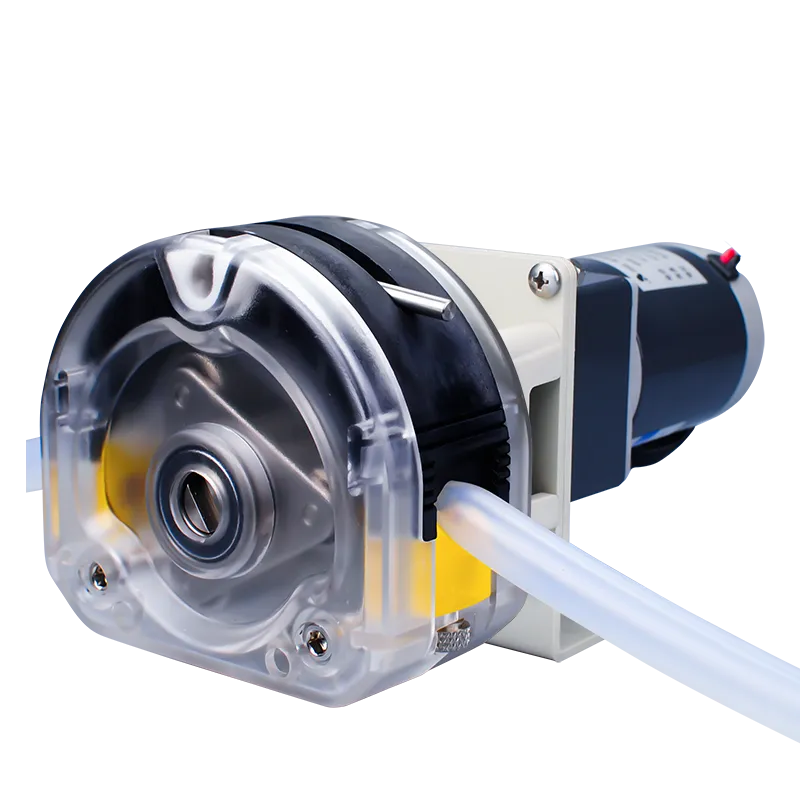

Compact small liquid feeding pump

Small size, compact and robust design.
Trouble-free continuous tube loading in seconds.
Reliable performance without any operator adjustments.
Automatic tube stretch for high accuracy and repetitive flow.
Three roller pump head, low pulsation.

Small size, compact and robust design.
Trouble-free continuous tube loading in seconds.
Reliable performance without any operator adjustments.
Three roller pump head, low pulsation.

Small dimension

Compact structure design, simple installation design, and good working performance, widely used in various liquid processing equipment

The OEM206 pumps have superb features built-in and flexible design to meet specific customer needs.
Typical Application

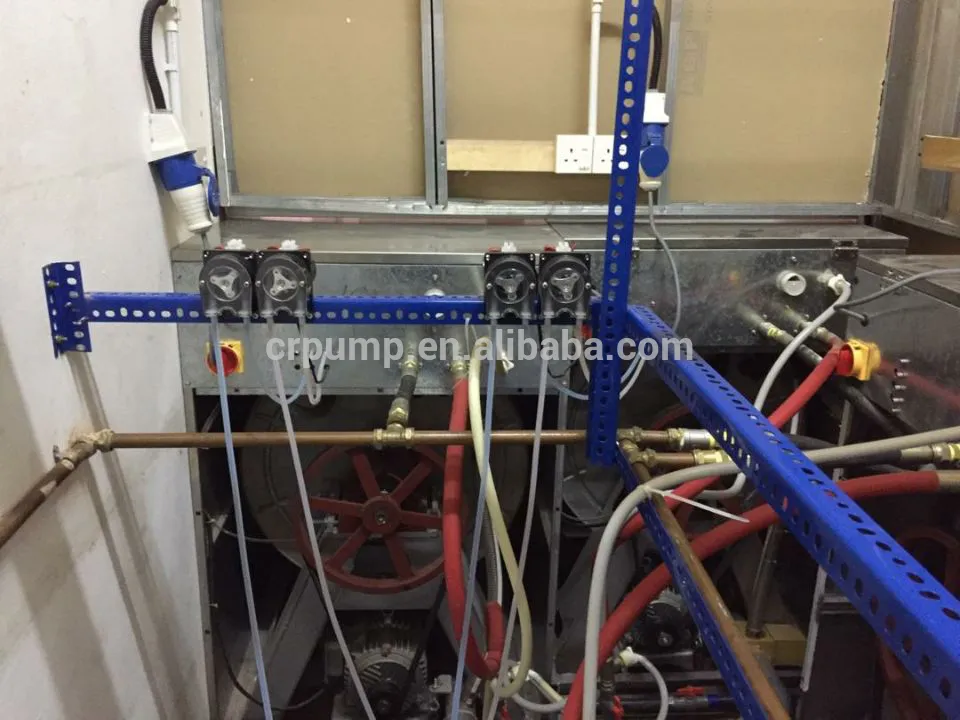

* Washing machine matching
*COD water treatment
* Detergent Liquid Transferring

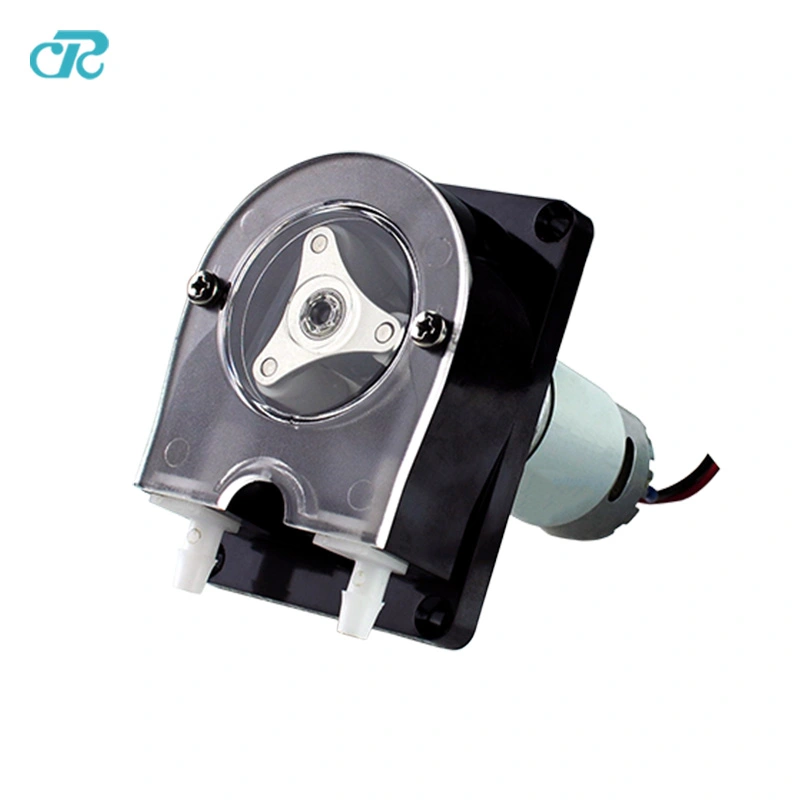

OEM204/ZN25

Max flow : 1740 ml/min

OEM206/WP300

Max flow : 1000 ml/min

OEM208/KZ25

Max flow : 6000 ml/min

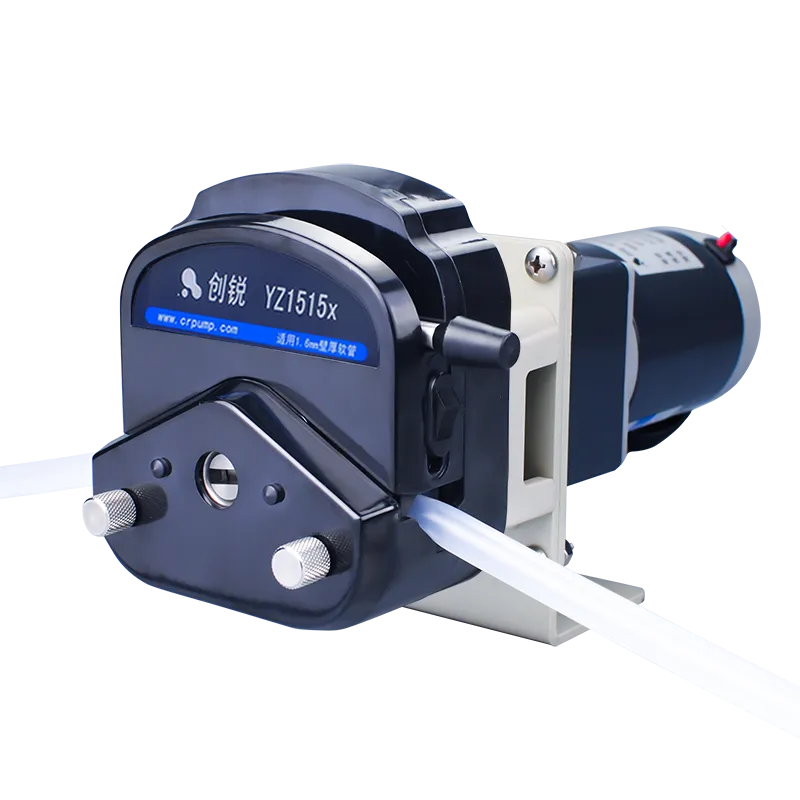

OEM201/YZ1515x

Max flow : 2280 ml/min

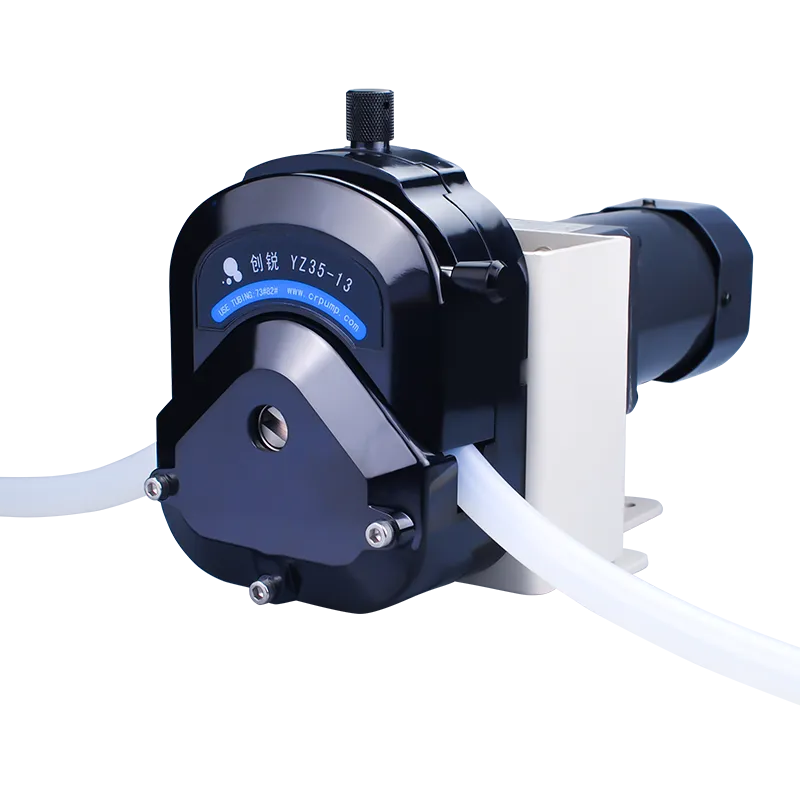

OEM200/YZ35-13

Max flow : 12000 ml/min

OEM209/WP110

Max Flow : 18ml/min

About shipping

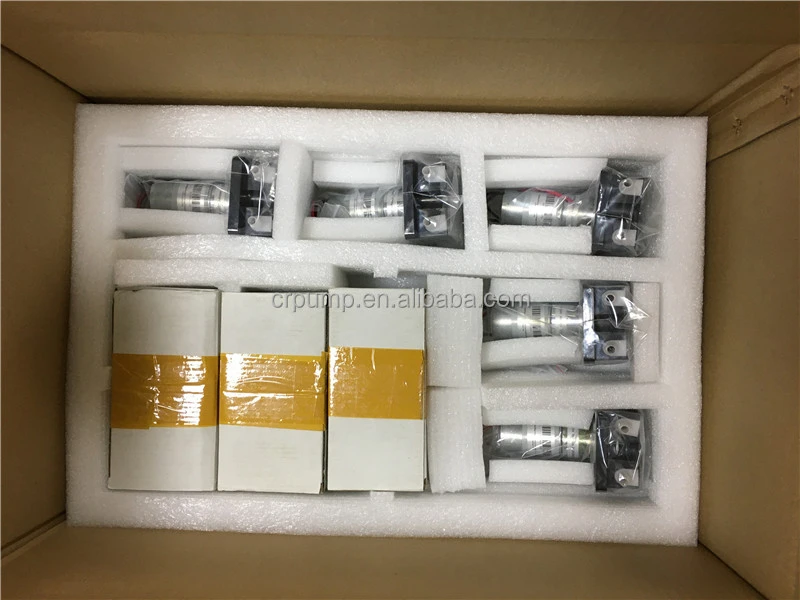

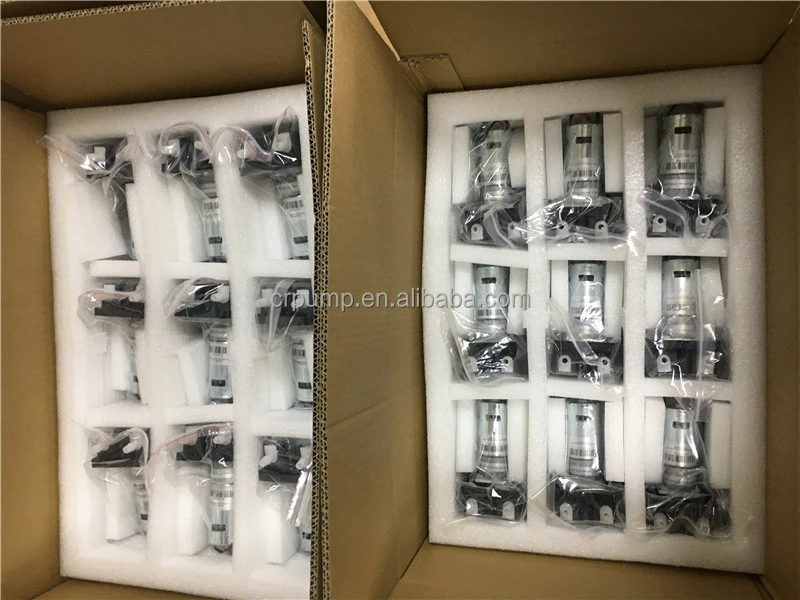

1，The package contains a peristaltic pump and its accessories.

2, foam and carton packaging can protect the safety of the peristaltic pump during transportation.

3，If you have other packaging needs, please contact our sales staff in time.

Order guide OEM

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ?bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

5, For the OEM pump. pls tell me the model no. you want ? Thanks

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

Contact :Chuangrui

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

FAQ

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 3-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4:What is the product transportation method?
Answer: the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Pls contact Us.or leave message to us.We will reply u asap we get it.

And other question, pls feel free to contact me.
