Chuangrui UCP Peristaltic Pump Hydroponics pump Liquid fertilizer transfer pump

Chuangrui UCP Peristaltic Pump Hydroponics pump Liquid fertilizer transfer pump

Model NO.: UCP304/ZN25-24

Quantity:

Product Description

Pump Model:UCP304/ZN25-24
Tube model:24# silicon tube
Speed range:0.1- 600 rpm
Flow rate:0.29-1740ml/min
Voltage:DC24-36V or ACpower adaptor optional
Pump head material:PC+304SSS
Warranty:1 Year Warranty(except Wearing Parts)
Customized support:OEM
Customized support:ODM
Customized support:OBM
Application:Automotive Industry
Application:Food and Beverage Industry
Application:Washing and Cleaning
Application:Wastewater Transport and Flood Control
Application:wastewater treatment
Application:Water Distribution
Power Source:Electric
Structure:peristaltic pump
Place of Origin:CN;HEB
Warranty:1 YEAR
Brand Name:CR
Model Number:UCP304/ZN25-24
Horsepower:none
Pressure:low
Outlet Size:Max 7.9mm
Voltage:DC

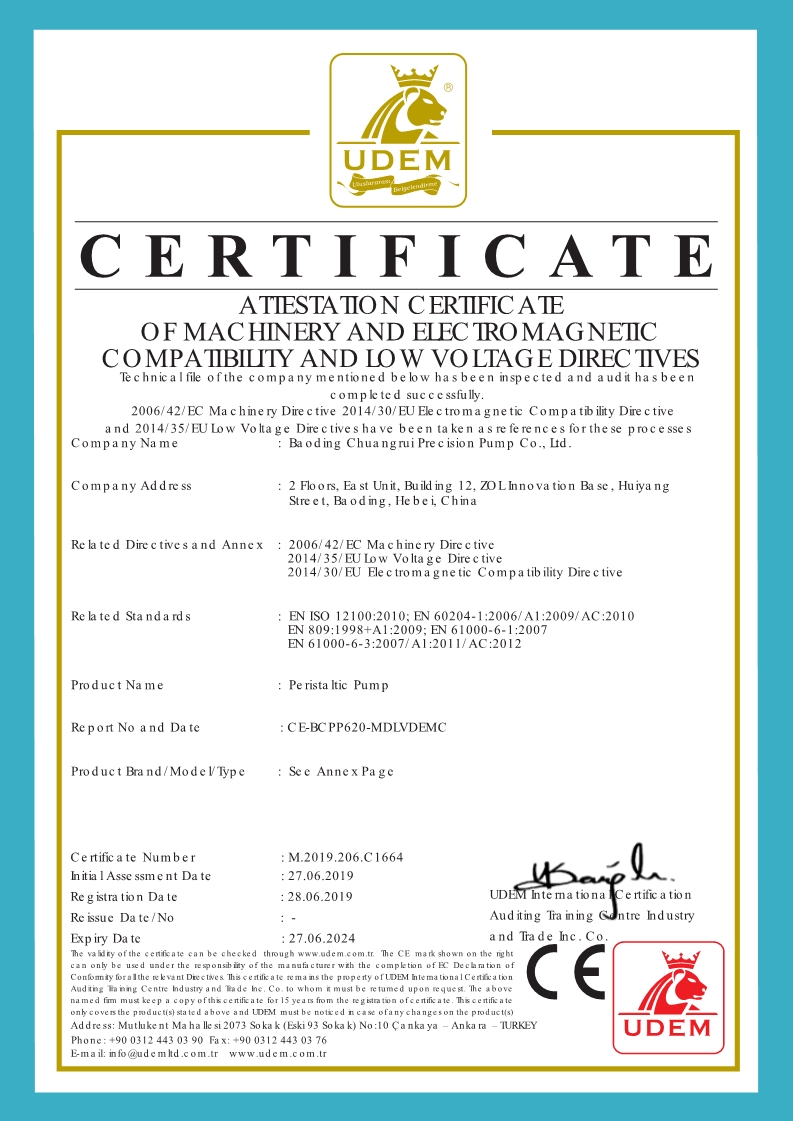

Certification:ce

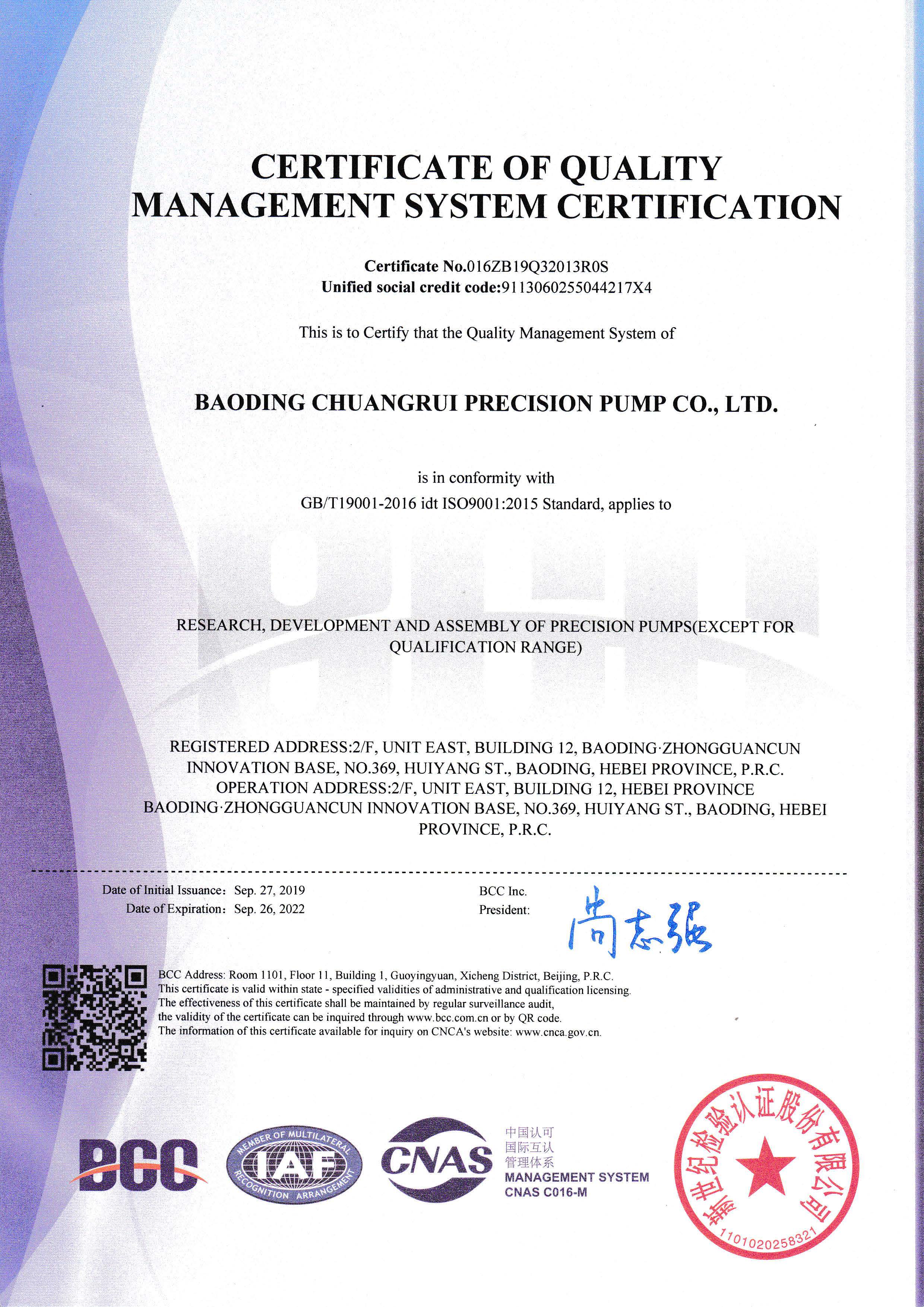

Certification:ISO9001

Product Description

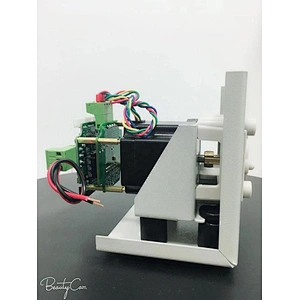

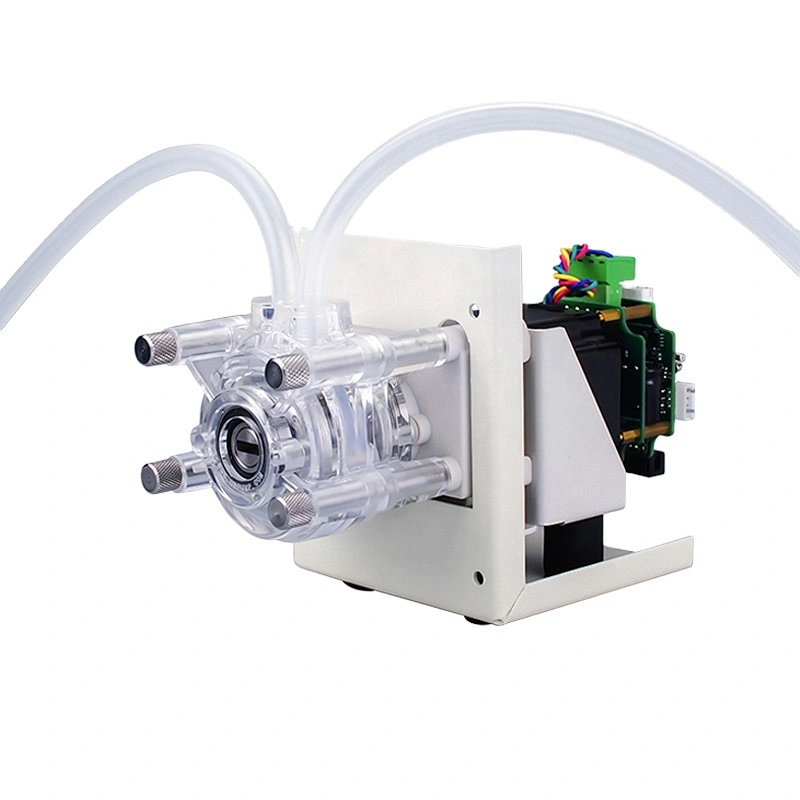

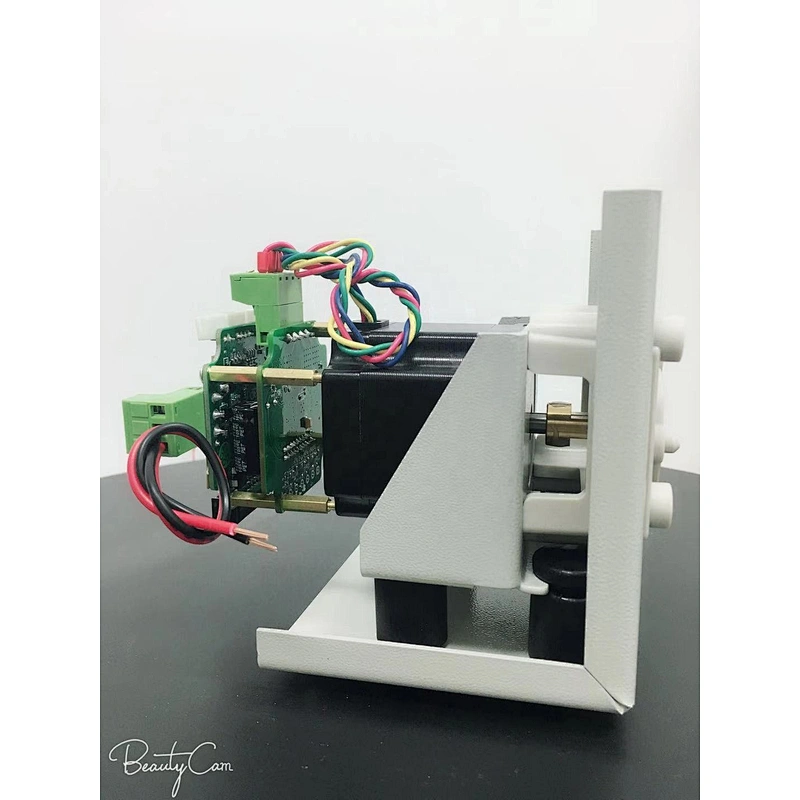

Stepper motor peristaltic pump

The UCP design started from the customer's requirements for small size, multi-function and high precision, and supports PLC control.
Stepping motors and conventional drivers are mostly used for packaging machinery. The speed of the pump can be controlled by pulse
to achieve precise filling. Chuangrui's unique control program can support analog control (0-5v 0-10v 4-20mA 0-10KHz) start-stop
control, direction control. It also supports RS485 communication protocol. The pump can be better embedded and combined with the customer's equipment.

Specifications

Model	UCP304/ZN25-24	Power supply	DC24V-48V or AC Adaptor optional
Speed range	0.1-350 rpm	Speed resolution	0.1 rpm
Flow range	0.17-1000ml/min	Control method	encoded switch or PLC
PLC Control	Support RS485 communication protocol /analog control (0-5v 0-10v 4-20mA) etc.

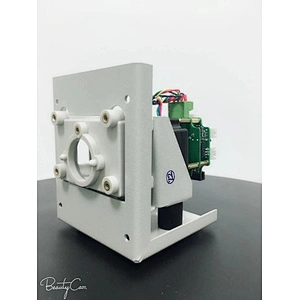

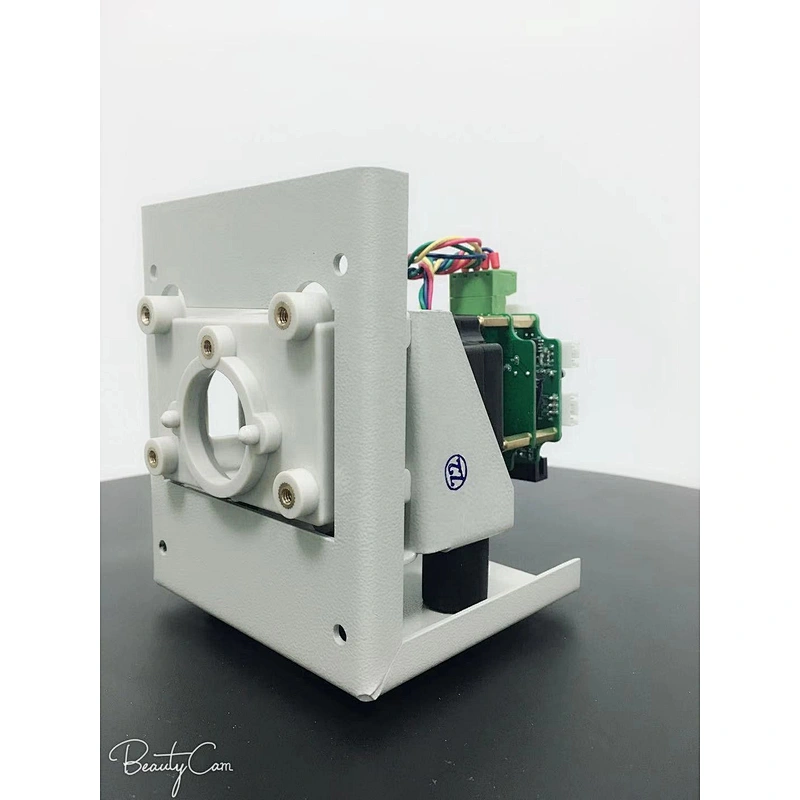

small stepper motor peristaltic pump

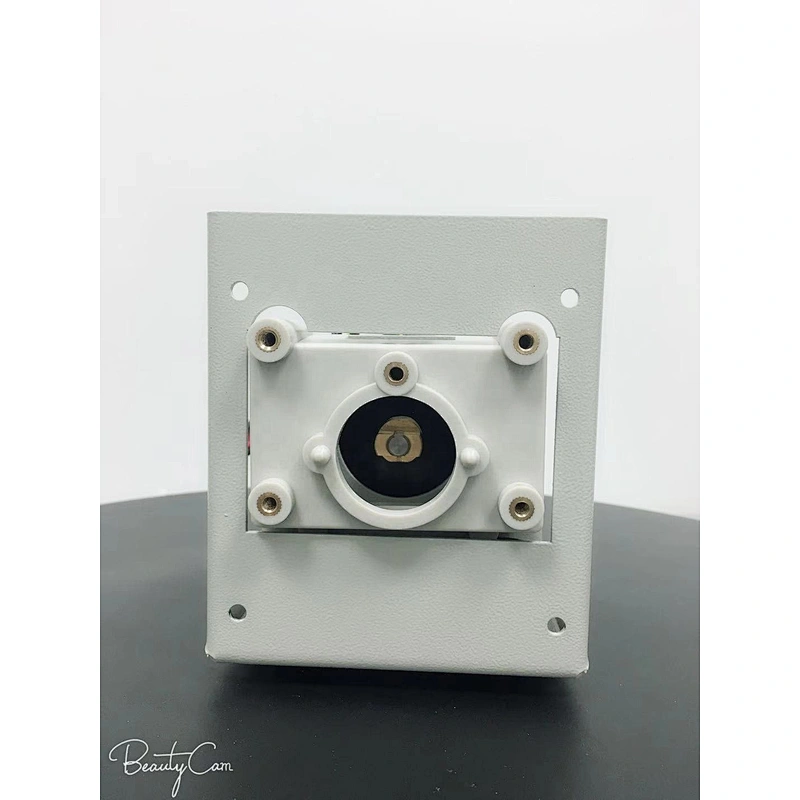

Custom mounting brackets available.

- Ideal for fluid transfer application

- Pump head is compact and simple in design with same side tubing entry/exit.

- Perfect for space-limited applications.

- Pump heads are compact and easy to integrate into your Fluid applications.

- Call for more information on our pump services.

Order Noted:

This product is a customized product, please contact the sales for detailed understanding before purchasing.

Order number	Model	Motor	Driver Model	Control Method	Max Speed (rpm)	Max Flow (ml/min)
UCP304A	UCP304	NEMA23	NO	User Control	600	1740
UCP304B				NEMA23	NO	User Control	600	1740
UCP304C			UCP303	NEMA23	542Driver	User Control	400	1160
UCP304D			UCP303	NEMA23	CRSCLNZFJ	Control by control switch	350	1000
UCP304E			UCP303	NEMA23	CRSCLNZM	Control by control switch
UCP304F				NEMA23	CRSCLNZ5V	0-5V /start stop/direction
UCP304G				NEMA23	CRSCLNZ10V	0-10V /start stop/direction
UCP304H				NEMA23	CRSCLNZ20A	4-20mA /start stop/direction
UCP304I				NEMA23	CRSCLNZ10K	0-10Khz /start stop/direction
UCP304J				NEMA23	CRSCLNZRS	RS485 Communication protocol

Pump head	Tube model	*IDWall （mm）**	Max speed	Flow range
	24#	6.4*2.4	600 rpm	0.29-1740 ml/min

Typical application : Chemical industry/ packing machine/printing /fine chemical, laboratory, food canning, chemical reagent filling, Dispense juice, chocolate,
etc.- Refrigeration / Condensate Removal- Analytical / Fluid Transfer, Wastes- Commercial Exercise Eqpt. / Lubrication- Grease Trap Control /etc..

Typical application : Packing machine/Medical/ Lab/ Analytical Instruments ,Commercial Dish washing / Chemical Dispensing- Vending Machine / Post Mix Syrups- Beverage Dispensing /Timed Dispense of Enzymes- Fluid Sampling / Water Sampling, DC Powered- Water Conditioning / Chlorination/PH control..etc.

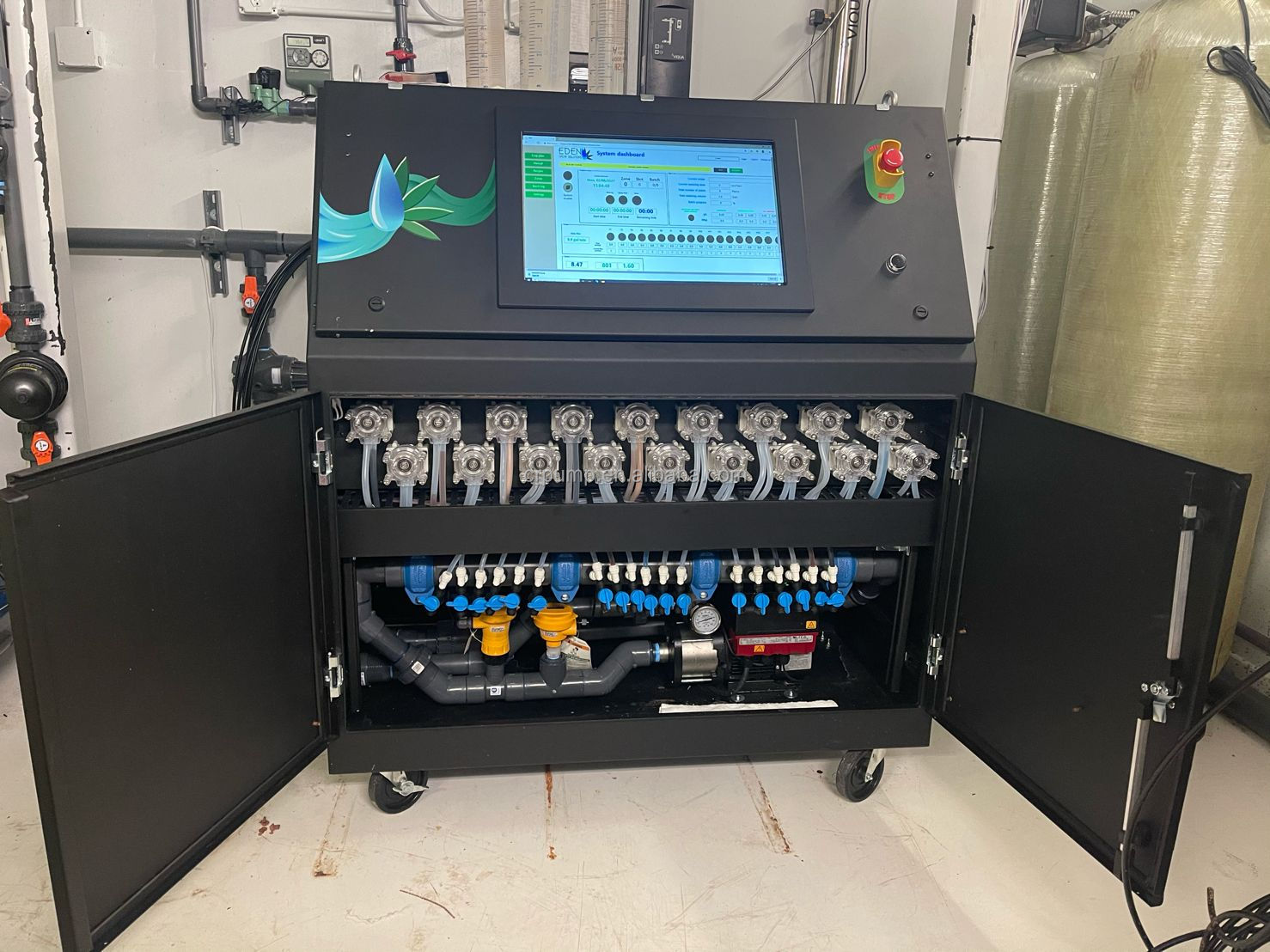

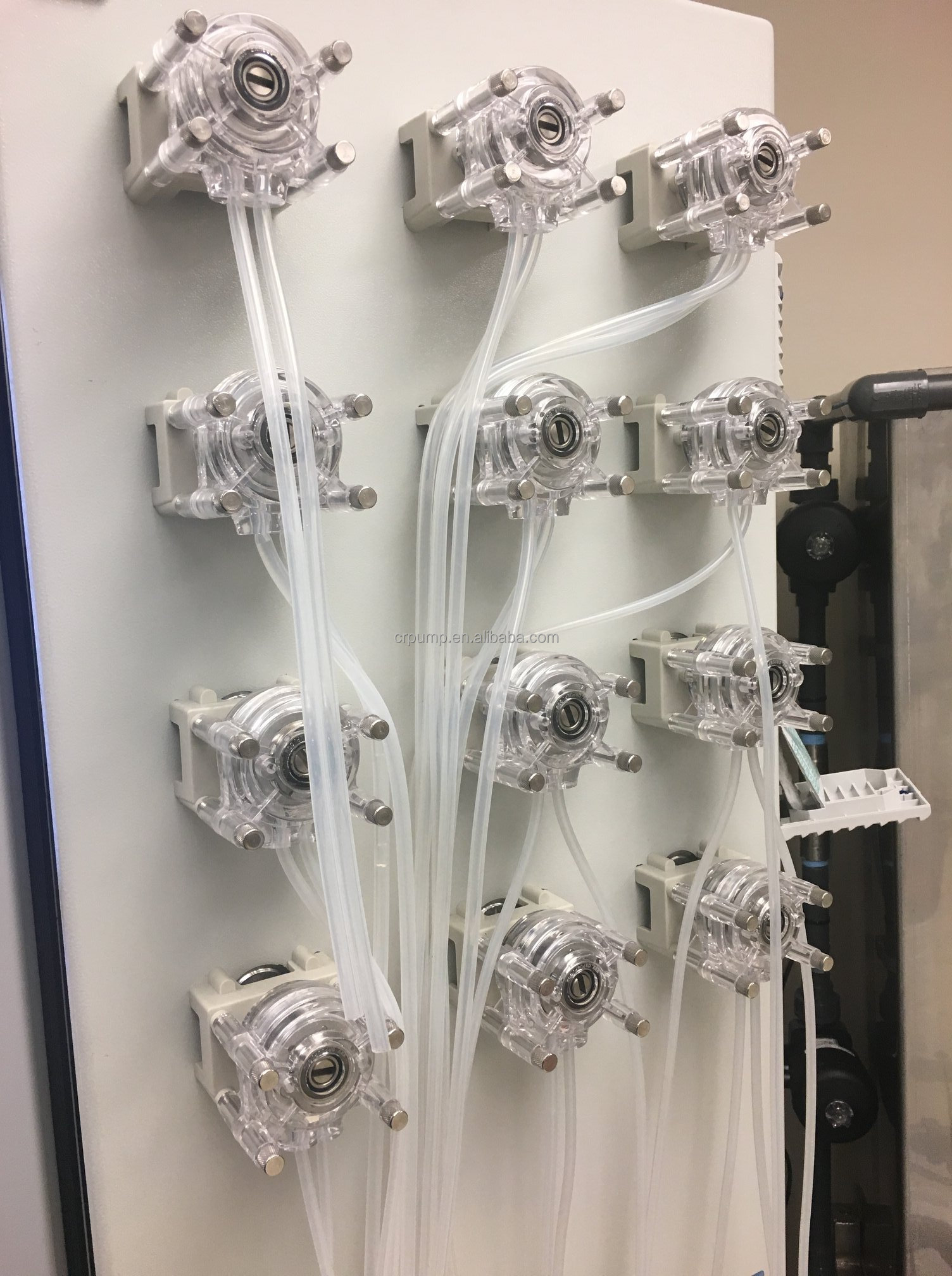

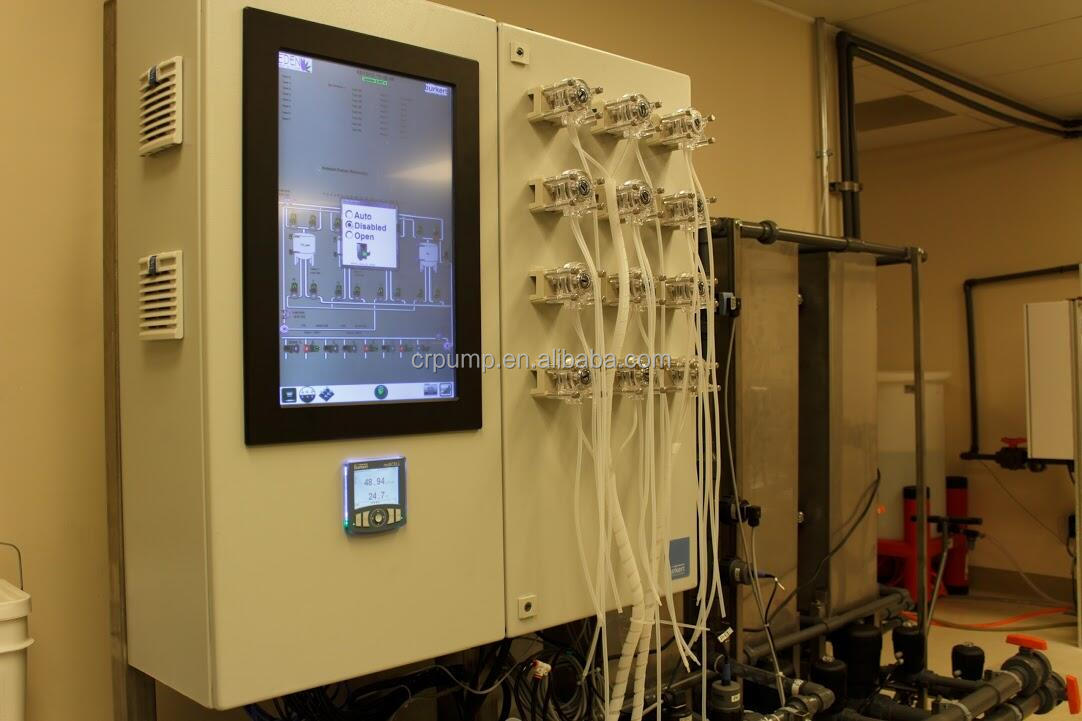

Application For additive feeding

Application For waste water application

Order Guide

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4,for bottle filling ,what's your bottle's volume? mlHow many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Packing & Delivery

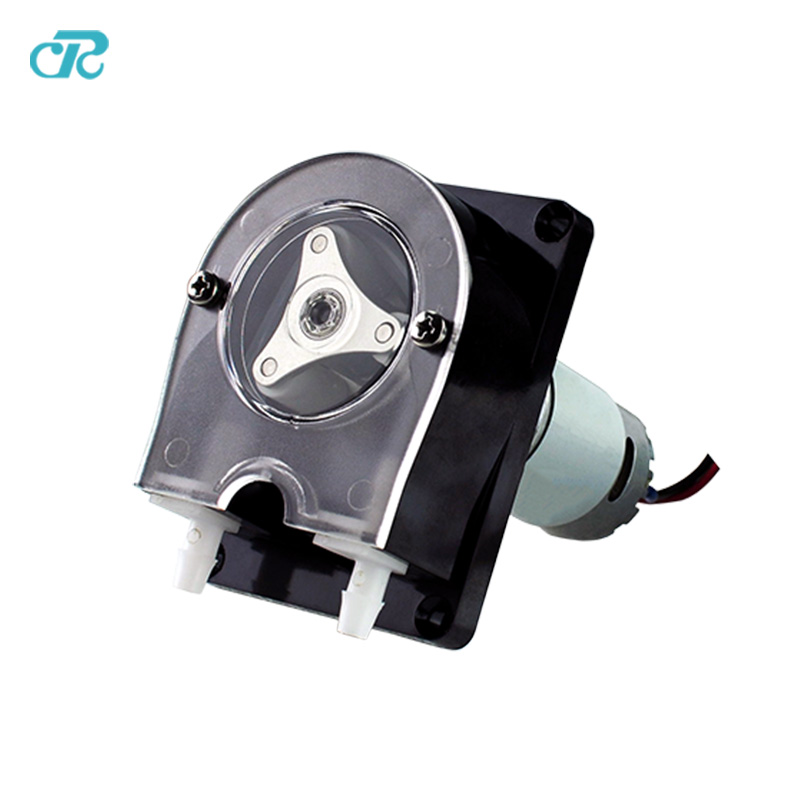

OEM204/ZN25

Max flow : 1740 ml/min

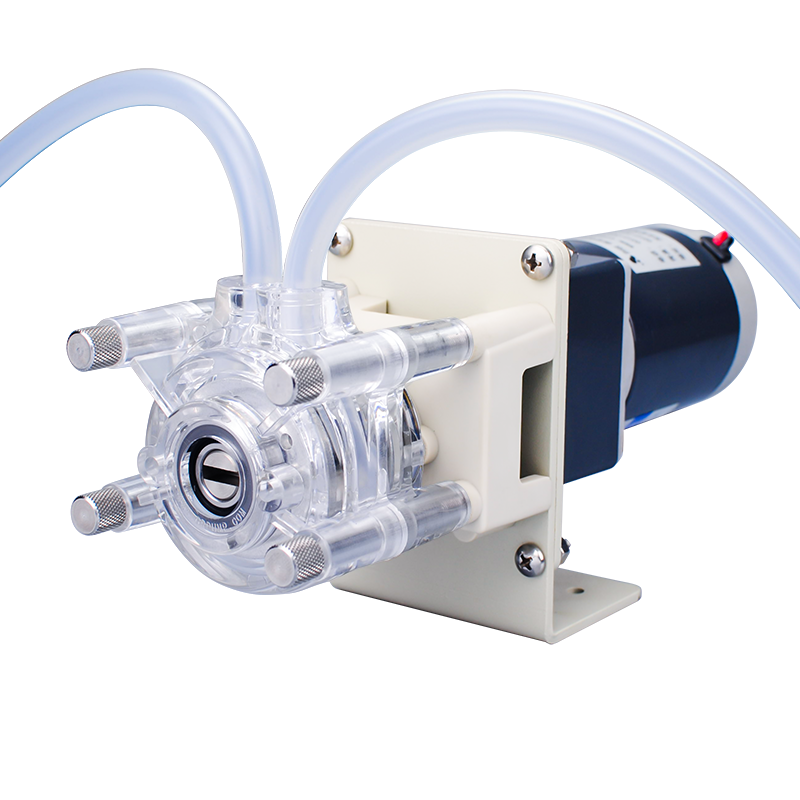

OEM206/WP300

Max flow : 1000 ml/min

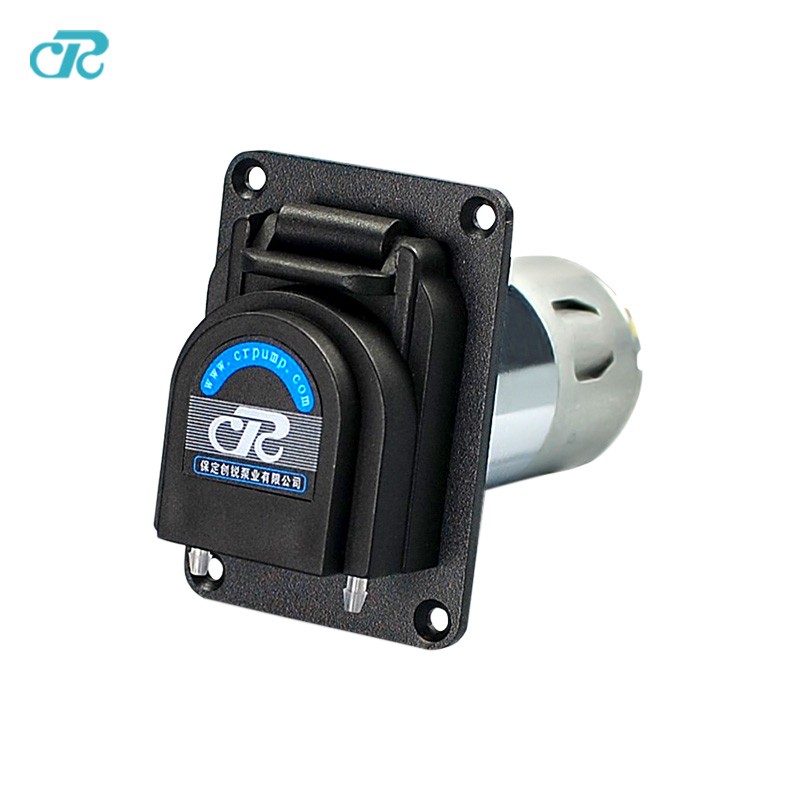

OEM208/KZ25

Max flow : 6000 ml/min

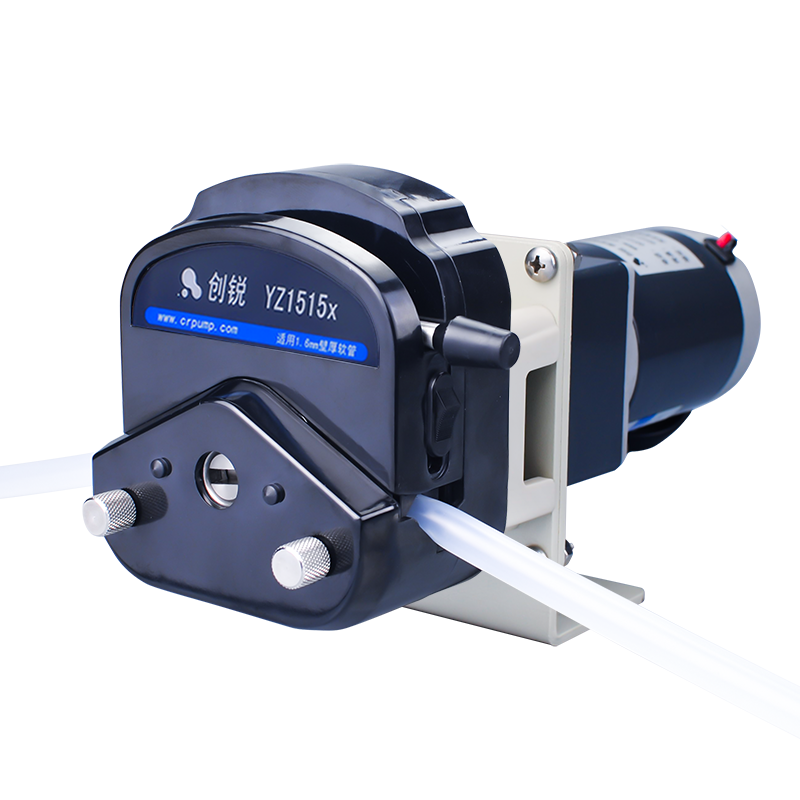

OEM201/YZ1515x

Max flow : 2280 ml/min

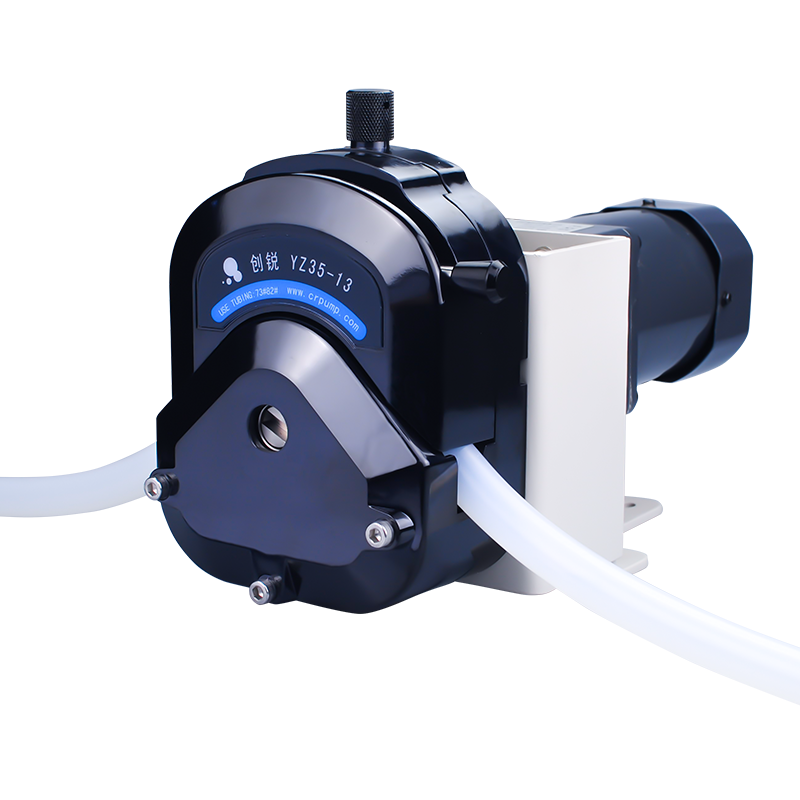

OEM200/YZ35-13

Max flow : 12000 ml/min

OEM209/WP110

Max Flow : 18ml/min
