packing Application Of Peristaltic Pump

Model NO.: UCP301

Quantity:

Product Description

Model:UCP301
Pump head:YZ1515x
Max flow:2280 ml/min
Motor:stepper motor
Warranty:1 Year Warranty(except Wearing Parts)
MOQ:1 Set
Customized support:OEM
Customized support:ODM
Customized support:OBM
Power Source:Electric
Structure:packing machine pump
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:Chuangrui
Model Number:UCP301
Application:Food and Beverage Industry
Application:Mining industry
Application:Pharmaceutical industry
Application:Wastewater Transport and Flood Control
Application:wastewater treatment
Application:Water Treatment Solutions
Application:Supporting Packing Machine
Horsepower:none
Pressure:Low Pressure
Cable Length:other
Outlet Size:Max 13mm
Voltage:DC24V-48V
Power:LOW

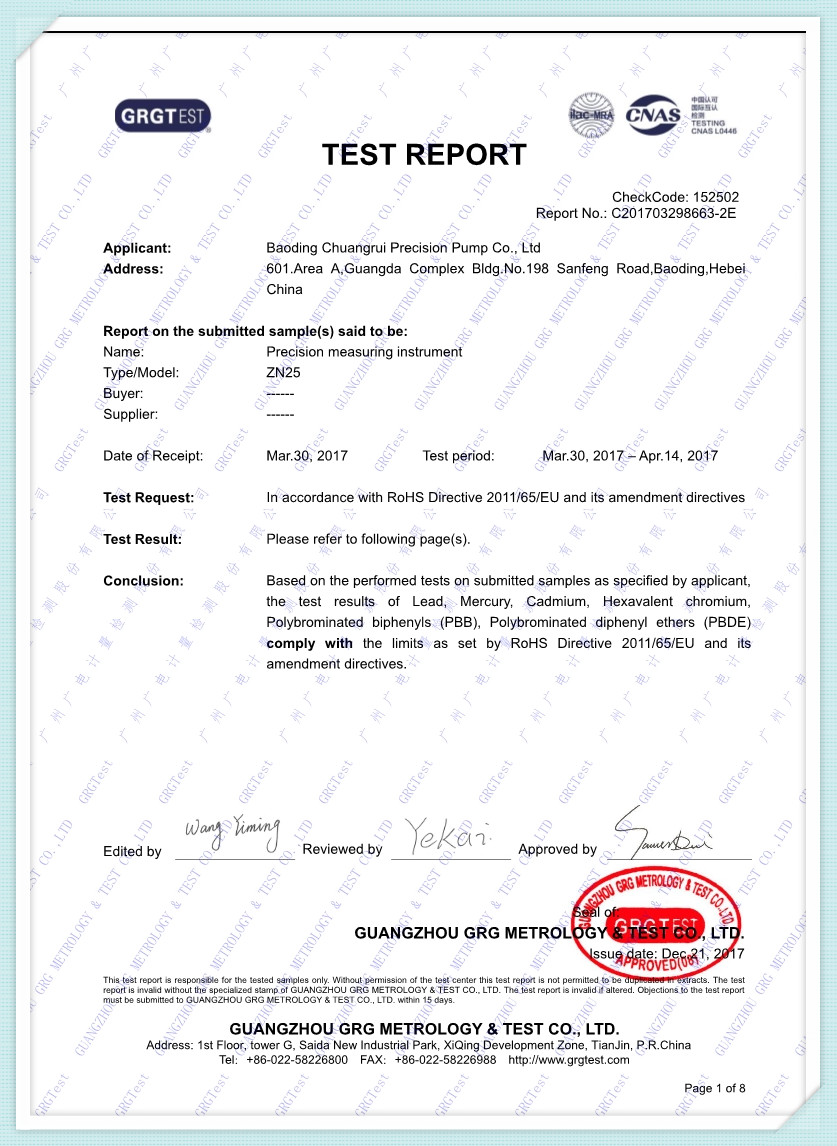

Certification:RoHS
Certification:ce

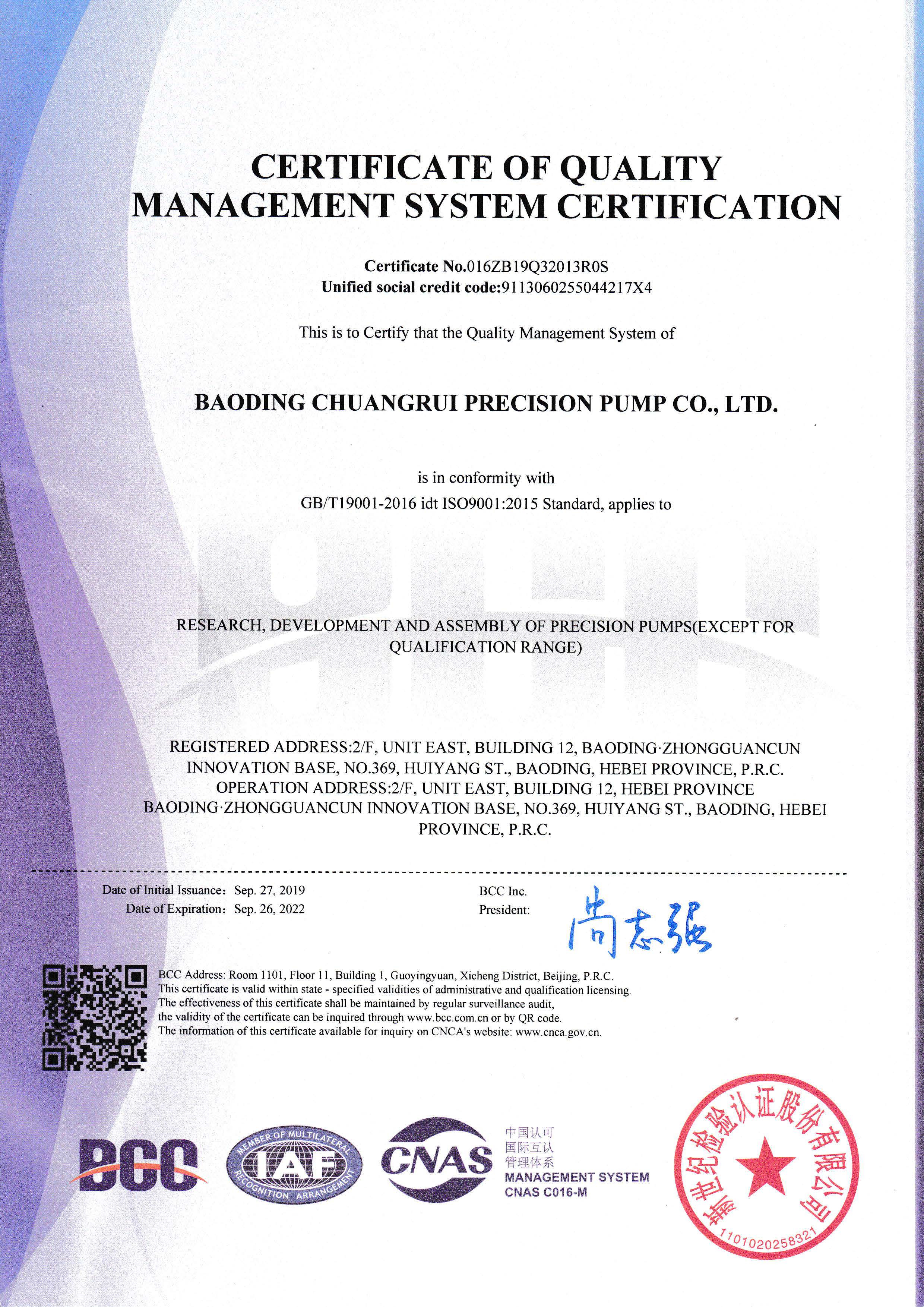

Certification:ISO9001

Product Description

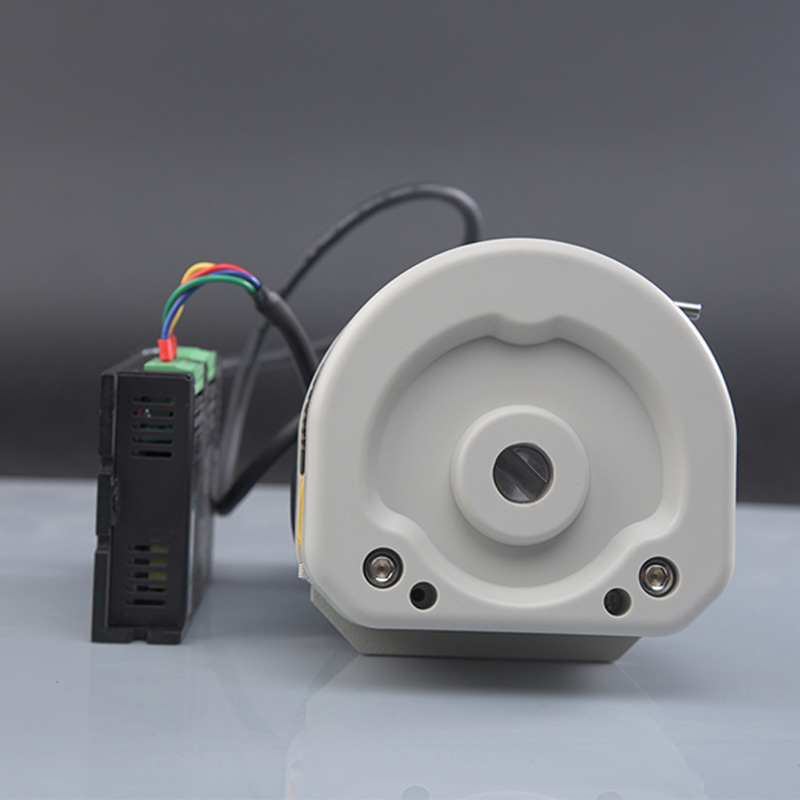

Stepper motor peristaltic pump

The UCP design started from the customer's requirements for small size, multi-function and high precision, and supports PLC control.
Stepping motors and conventional drivers are mostly used for packaging machinery. The speed of the pump can be controlled by pulse
to achieve precise filling. Chuangrui's unique control program can support analog control (0-5v 0-10v 4-20mA 0-10KHz) start-stop
control, direction control. It also supports RS485 communication protocol. The pump can be better embedded and combined with the customer's equipment.

Due to the continuous improvement of food and drug production standards. The peristaltic pump gradually replaces the plunger pump.Because the peristaltic pump is more in line with GMP standards. The structure is simple, the pump body is not in contact with the liquid medicine, so there is no need to clean and disinfect the pump body. The pipes can be autoclaved for easy cleaning and replacement.
The biggest advantage of a peristaltic pump relative to a piston pump is the ability to deliver fluid with particles.

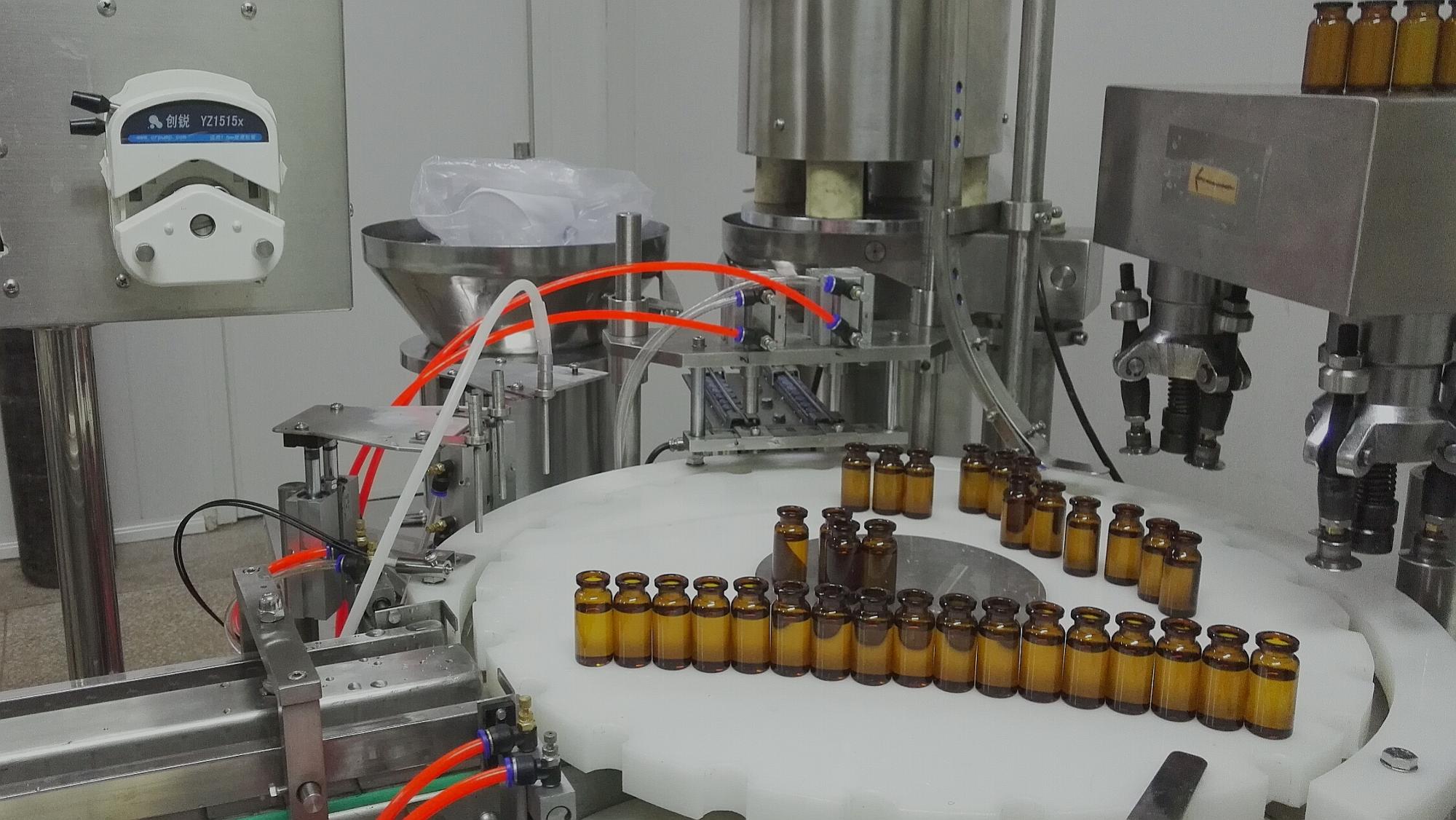

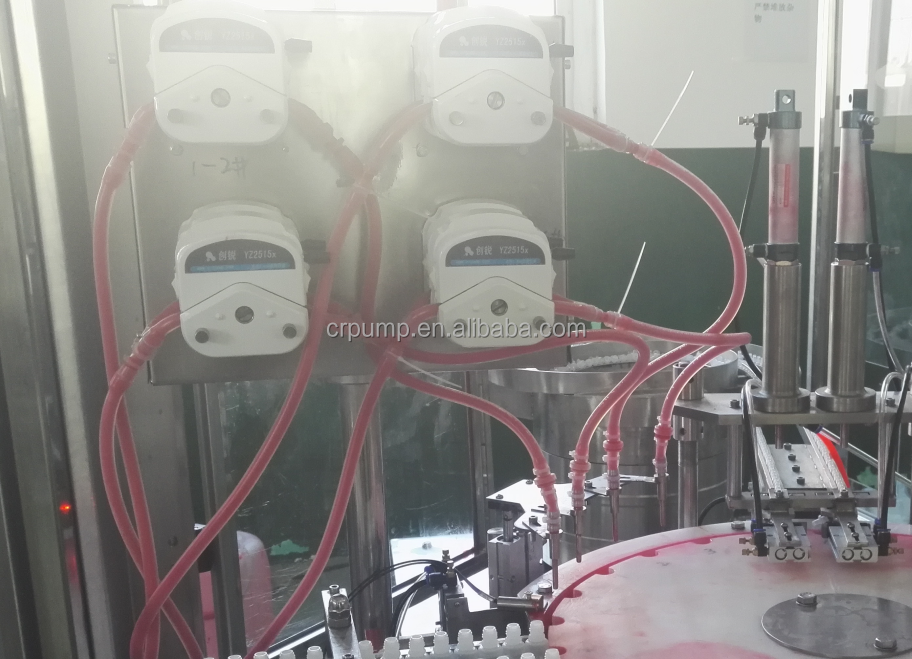

The advantages of peristaltic pumps to work with packaging machine are:
1, no pollution: the liquid only contacts the pump tube, does not touch the pump body;
2, high precision: good repeatability and high stability;
3, low shear: is the ideal tool for conveying shear sensitive and corrosive fluids;
4, good sealing: with good self-priming ability, can be idling, can prevent backflow;
5, simple maintenance: no valves and seals

Specifications

small stepper motor peristaltic pump

Custom mounting brackets available.

- Ideal for fluid transfer application

- Pump head is compact and simple in design with same side tubing entry/exit.

- Perfect for space-limited applications.

- Pump heads are compact and easy to integrate into your Fluid applications.

- Call for more information on our pump services.

Order Noted:

This product is a customized product, please contact the sales for detailed understanding before purchasing. The defaulted pump head material is PPS (BLACK)

Order number	Model	Motor	Driver Model	Control Method	Max Speed (rpm)	Max Flow (ml/min)
UCP301A	UCP301	NEMA23	NO	User Control	600	2280
UCP301B				NEMA23			NO	User Control
UCP301C			UCP303	NEMA23			542Driver	User Control	400	2000
UCP301D			UCP303	NEMA23			CRSCLNZFJ	Control by control switch
UCP301E			UCP303	NEMA23			CRSCLNZM	Control by control switch
UCP301F				NEMA23			CRSCLNZ5V	0-5V /start stop/direction
UCP301G				NEMA23			CRSCLNZ10V	0-10V /start stop/direction
UCP301H				NEMA23			CRSCLNZ20A	4-20mA /start stop/direction
UCP301I				NEMA23			CRSCLNZ10K	0-10Khz /start stop/direction
UCP301J				NEMA23			CRSCLNZRS	RS485 Communication protocol

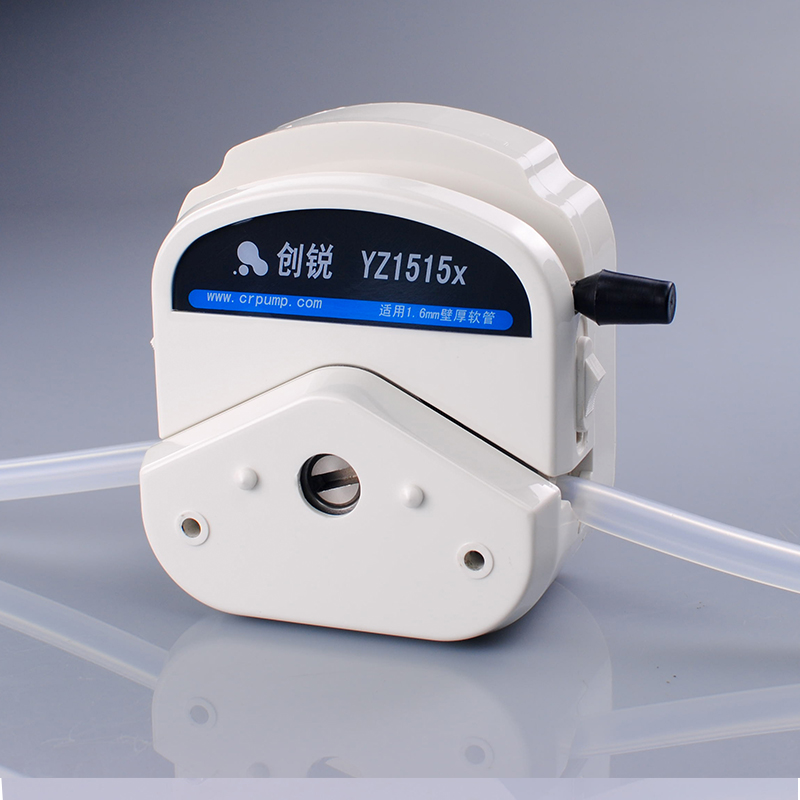

Pump head	Tube model	*IDWall （mm）**	Max speed	Flow range

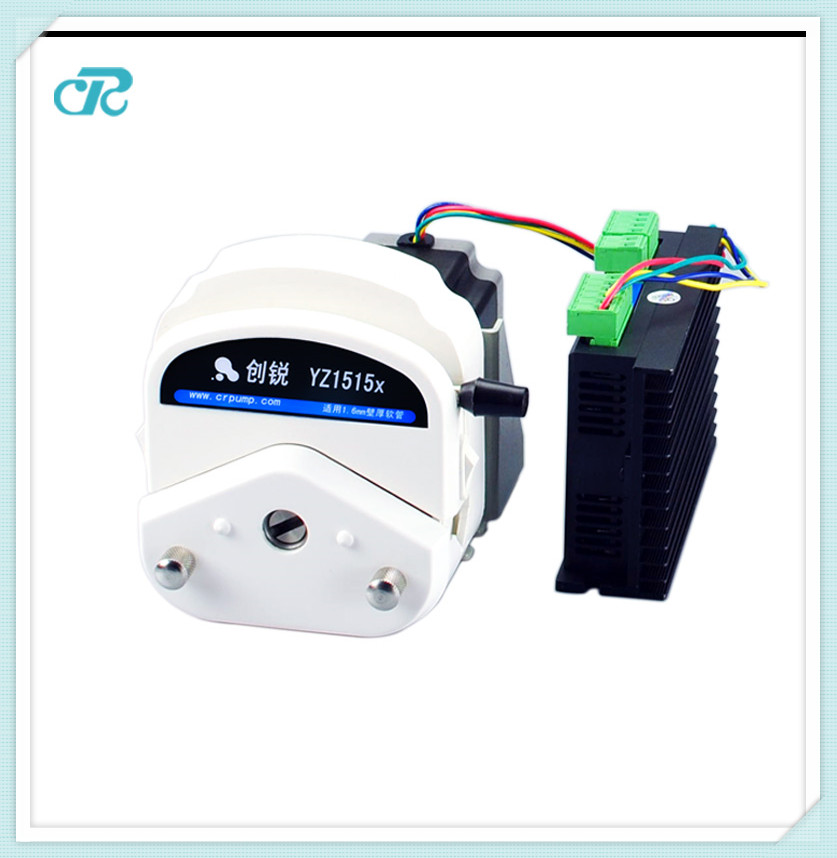

YZ1515x	13#	0.8*1.6	600 rpm	0.007-42 ml/min
		14#		1.6*1.6	400 rpm	0.027-162 ml/min
		19#		2.4*1.6	400 rpm	0.051-306 ml/min
		16#		3.1*1.6	400 rpm	0.082-492 ml/min
		25#		4.8*1.6	400 rpm	0.17-1020 ml/min
		17#		6.4*1.6	400 rpm	0.29-1740 ml/min
		18#		7.9*1.6	400 rpm	0.38-2280 ml/min

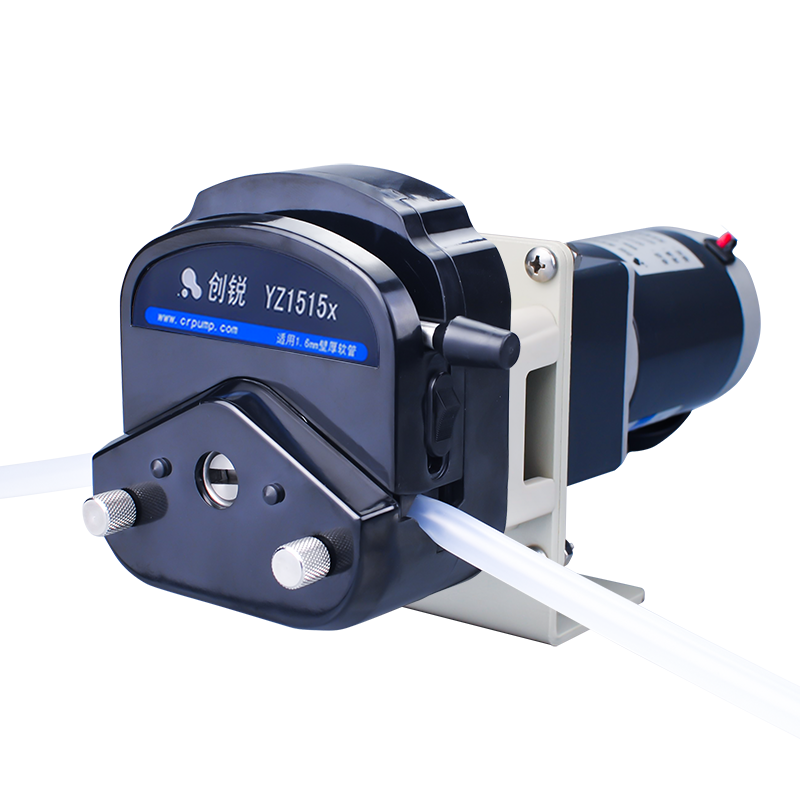

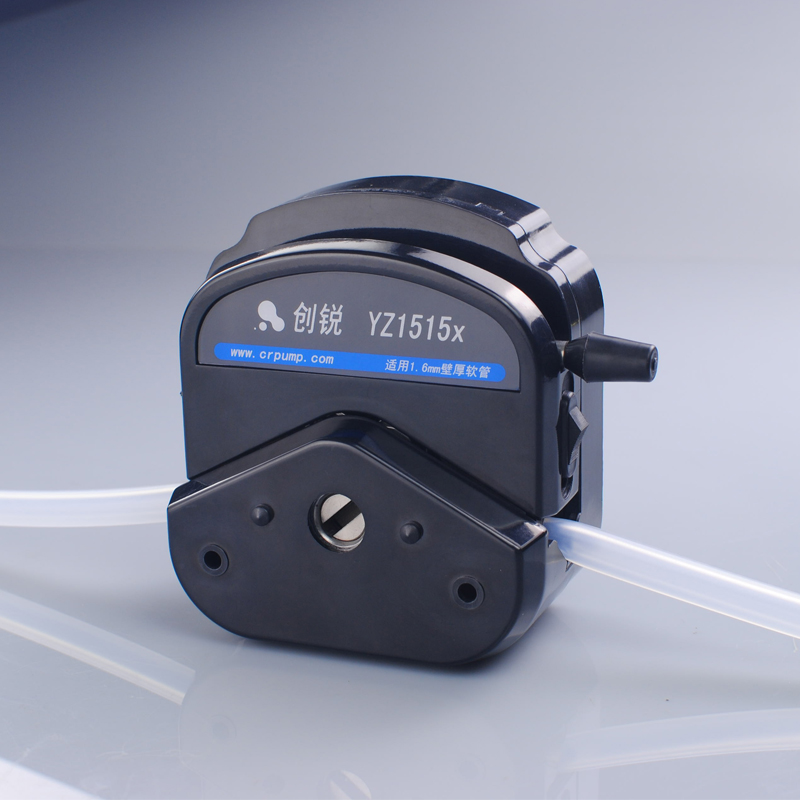

Pump head with PPS material (Black)

Typical application : Chemical industry/ packing machine/printing /fine chemical, laboratory, food canning, chemical reagent filling, Dispense juice, chocolate,
etc.- Refrigeration / Condensate Removal- Analytical / Fluid Transfer, Wastes- Commercial Exercise Eqpt. / Lubrication- Grease Trap Control /etc..

Pump head with PSF material (White)

Typical application : Packing machine/Medical/ Lab/ Analytical Instruments ,Commercial Dish washing / Chemical Dispensing- Vending Machine / Post Mix Syrups- Beverage Dispensing /Timed Dispense of Enzymes- Fluid Sampling / Water Sampling, DC Powered- Water Conditioning / Chlorination/PH control..etc.

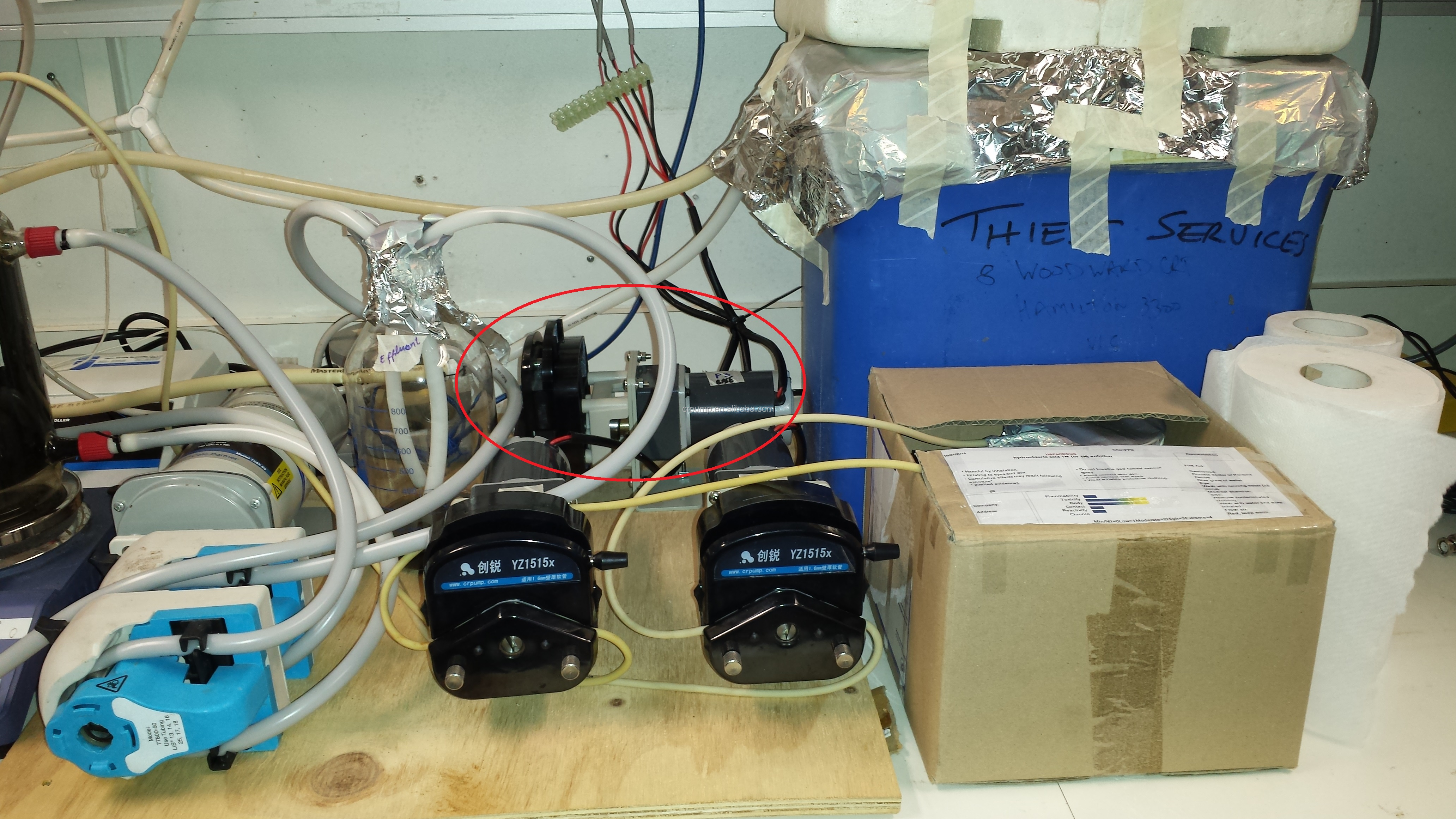

Application For additive feeding

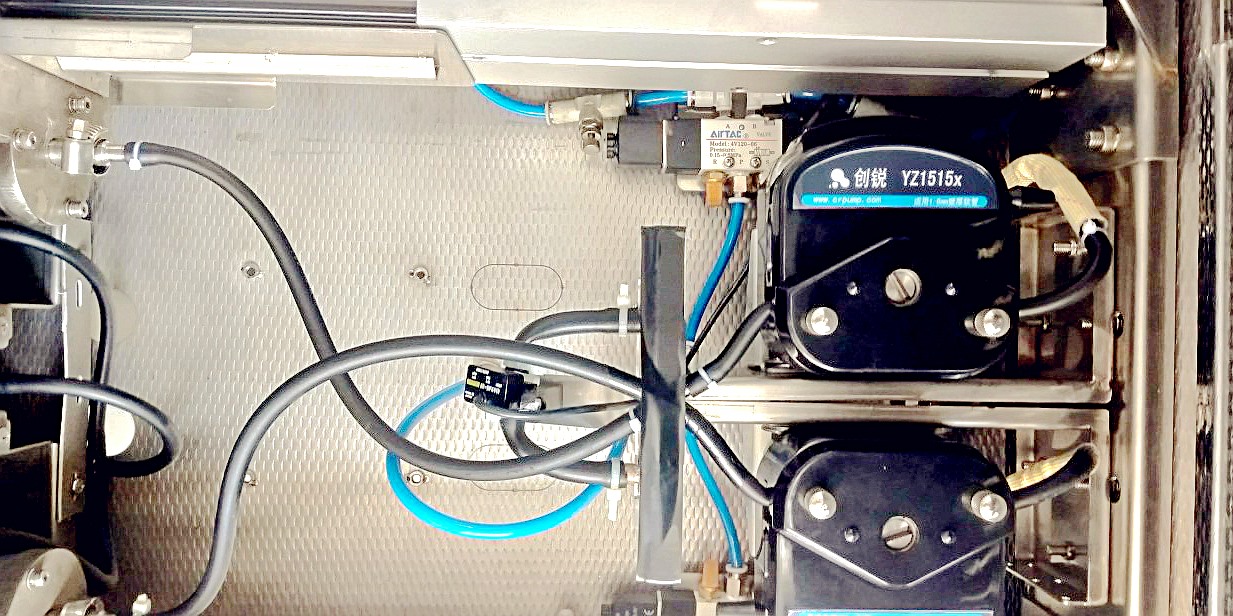

Application For waste water application

OEM204/ZN25

Max flow : 1740 ml/min

OEM206/WP300

Max flow : 1000 ml/min

OEM208/KZ25

Max flow : 6000 ml/min

OEM201/YZ1515x

Max flow : 2280 ml/min

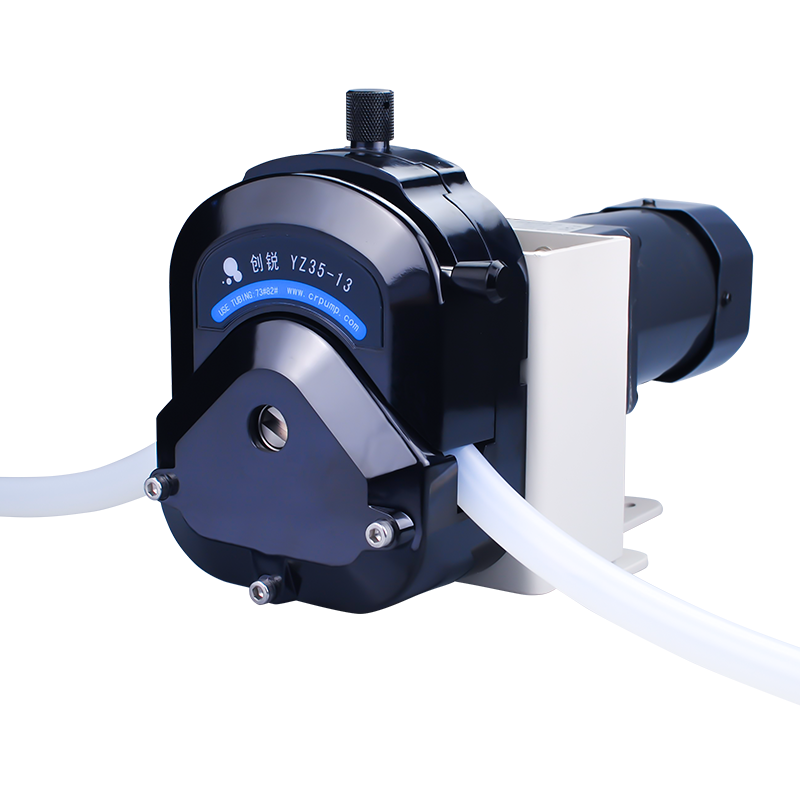

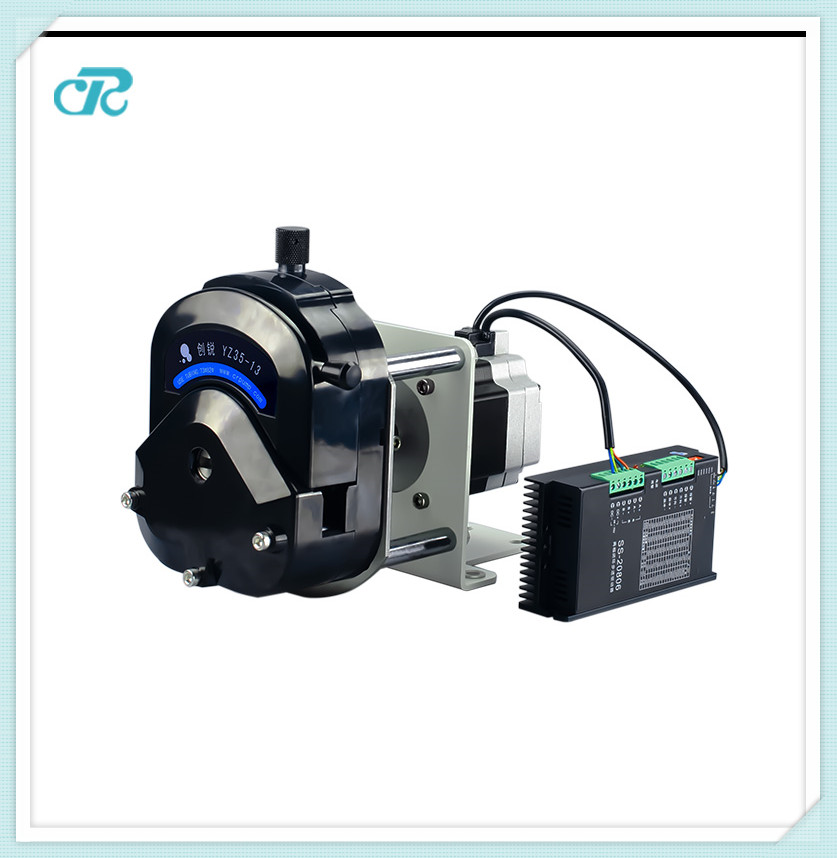

OEM200/YZ35-13

Max flow : 12000 ml/min

OEM209/WP110

Max Flow : 18ml/min

Order Guide

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4,for bottle filling ,what's your bottle's volume? mlHow many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

About shipping

Fast and safe delivery

1.The package contains a peristaltic pump and its accessories.

2.foam and carton packaging can protect the safety of the peristaltic pump during transportation.

3.If you have other packaging needs, please contact us in time.

Things To Note

Hi, My dear customer ,Good day!
Here are some tips for your reference before purchase our pumps.
1, About Delivery time :
For standard pump less than 10 sets the delivery time is 3-5 days after get your payment.
For customized pump ,the production time is about 7-15 days.
For bulk purchase, Pls contact our customer service staff to get the exact delivery time.
2, About Power supply and power plug:
For standard pump is AC220V or AC110V ,which produce based on your local power supply standard.
For the power plug, we have most of the power plug types based on different counties' requirement.
PS :The power supply and power plug will based on your shipping country's standard(defaulted). If you have different requirement,Pls contact our sales .
3, About the flowrate :
All the flowrate we showed are test based on water,Only for your reference.
4,About Return Policy and after sale service:
a . Before purchasing, please carefully understand the product (peristaltic pump) function details. If you are not sure about the product function, please contact our customer service staff for detailed communication and confirmation before purchasing. Our technical staff will give you detailed information. Answer to ensure that you find the most suitable product.
b . After receiving the goods, if the packaging is damaged due to express delivery and the product is also damaged due to gravity,such as shell deformation, pump head damage, etc., please send the damaged packaging photos and product photos to our customer service staff within three days.Our company will negotiate compensation with the express as soon as possible and provide you with a solution within three working days.
c . If there is a problem with the product due to the quality of the product within one year after receipt (the warranty period),please feel free to contact our customer service staff, we will provide you with a solution within three days of receiving your information.
d . If the product has exceeded the warranty period and the product cannot be used due to improper operation by the customer,please contact our customer service staff. We only charge the cost of the accessories and the courier fee. And the customer service staff will answer your questions free of charge and assist you with repairs in the form of text, pictures or videos.
5,About Warranty:
1 Year warranty and lifetime matainence.(Do not including the Consumables such as tubing and connectors.etc.）
