PLC control step motor medical dental flushing infusion Peristaltic sampler Pump

PLC control step motor medical dental flushing infusion Peristaltic sampler Pump

Model NO.: UCP303
Price:: US $ 100.00-280.00 / piece
Minimum order quantity: 1 piece
Supply Ability: 3000.0 piece / Month
Country of Origin: Tianjin,Shanghai,Guangzhou

Quantity:

Product Description

Type:UCP303
Pump head:TX315
Flow range:Max 2000 ml/min
Speed range:0.1-400rpm
Number of rollers:3 rollers
MOQ:1 Set
Warranty:1 Year
Customized support:OEM
Customized support:ODM
Customized support:OBM
Application:Automotive Industry
Application:Developing World Water Solutions
Application:Food and Beverage Industry
Application:Machining
Application:Washing and Cleaning
Application:wastewater treatment
Application:Water Treatment Solutions
Power Source:Electric
Structure:Peristaltic Pump
Place of Origin:CN;HEB
Warranty:1 Year
Brand Name:CR
Model Number:UCP303
Horsepower:Other
Pressure:Low Pressure
Cable Length:other
Outlet Size:Max 7.9mm
Voltage:DC

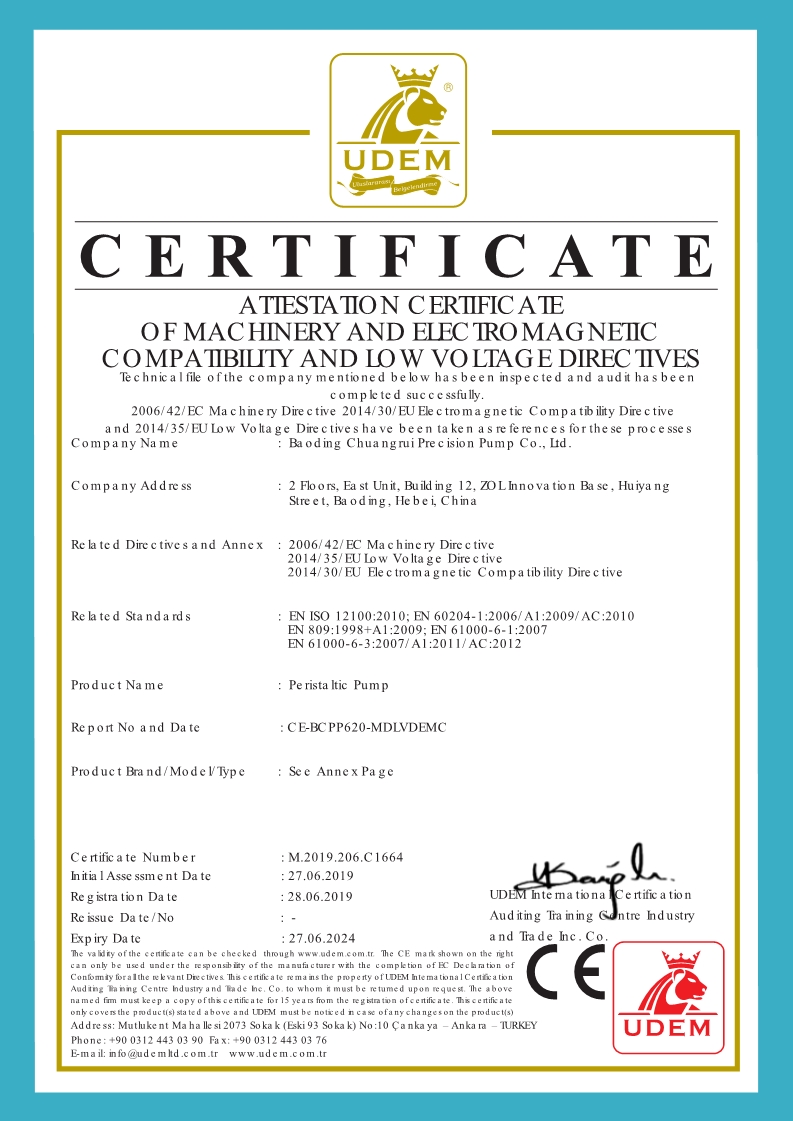

Certification:ce
Certification:TUV

Product Description

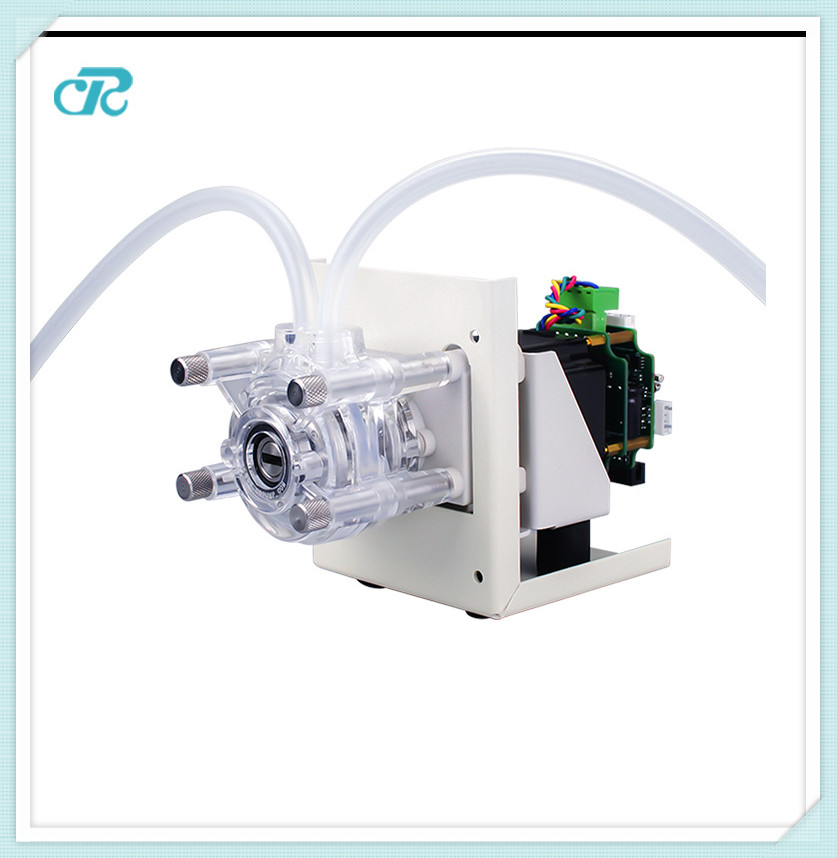

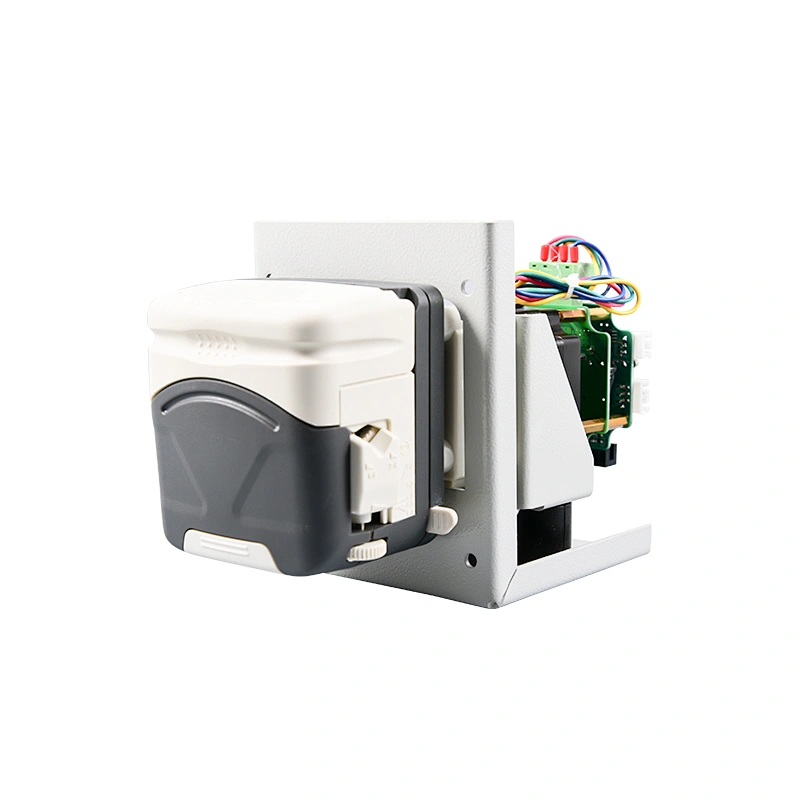

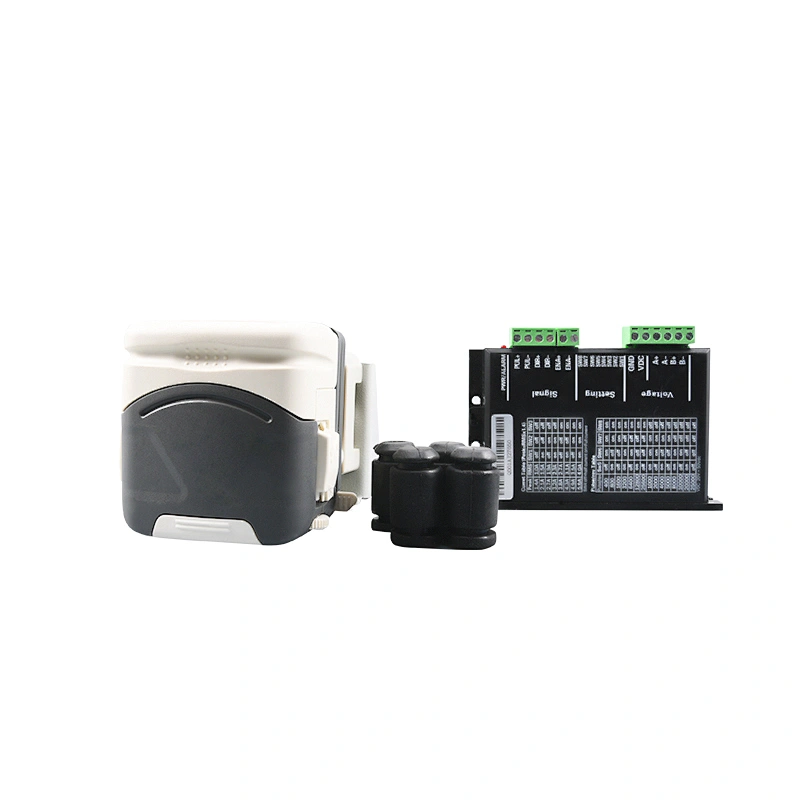

Stepper motor peristaltic pump

The UCPdesign started from the customer's requirements for small size, multi-function and high precision, and supports PLC
control.
Stepping motors and conventional drivers are mostly used for packaging machinery. The speed of the pump can be controlled by pulse
to achieve precise filling. Chuangrui's unique control program can support analog control (0-5v 0-10v 4-20mA 0-10KHz) start-stop
control, direction control. It also supports RS485 communication protocol. The pump can be better embedded and combined with the customer's equipment.

Specifications

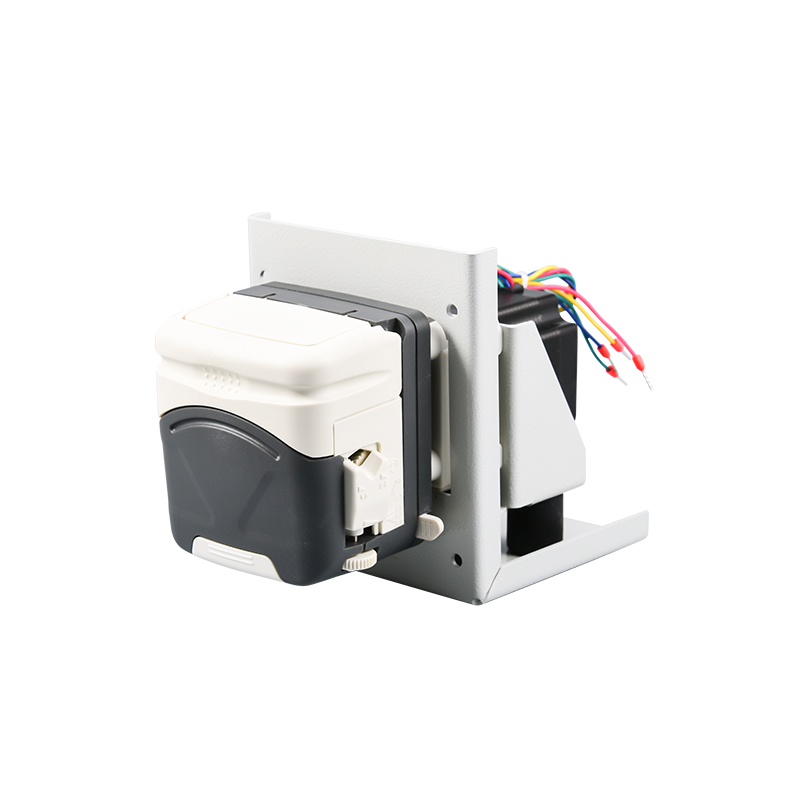

small stepper motor peristaltic pump

Custom mounting brackets available.

- Ideal for fluid transfer application

- Pump head is compact and simple in design with same side tubing entry/exit.

- Perfect for space-limited applications.

- Pump heads are compact and easy to integrate into your Fluid applications.

- Call for more information on our pump services.

Order Noted:

This product is a customized product, please contact the sales for detailed understanding before purchasing.

Order number	Model	Motor	Driver Model	Control Method	Max Speed (rpm)	Max Flow (ml/min)
UCP303A	UCP303	NEMA23	NO	User Control	400	2000
UCP303B				NEMA23			NO	User Control
UCP303C			UCP303	NEMA23			542 Driver	User Control	400	2000
UCP303D			UCP303	NEMA23			CRSCLNZFJ	Control by control switch
UCP303E			UCP303	NEMA23			CRSCLNZM	Control by control switch
UCP303F				NEMA23			CRSCLNZ5V	0-5V /start stop/direction
UCP303G				NEMA23			CRSCLNZ10V	0-10V /start stop/direction
UCP303H				NEMA23			CRSCLNZ20A	4-20mA /start stop/direction
UCP303I				NEMA23			CRSCLNZ10K	0-10Khz /start stop/direction
UCP303J				NEMA23			CRSCLNZRS	RS485 Communication protocol

Pump head	Tube model	*IDWall （mm）**	Max speed	Flow range（10-400rpm）
TX315	13#	0.8*1.6	400 rpm	0.08-28ml/min
		14#	1.6*1.6	400 rpm	0.037-106ml/min
		19#	2.4*1.6	400 rpm	0.049-227ml/min
		16#	3.1*1.6	400 rpm	0.95-399ml/min
		25#	4.8*1.6	400 rpm	0.33-830ml/min
		17#	6.4*1.6	400 rpm	0.54-1400ml/min
		18#	7.9*1.6	400 rpm	0.76-2000ml/min

Order Guide

Dear All,To help you choose the suitable pump. can you help me to confirm some details as below : 1, What's your application of the pump? 2, What kind of liquid you will transfer? is it corrosive? can it flow as water?3, What's flow rate you need? ml/min More details will help us to introduce the most suitable pump to you.Thanks for your time.

FAQ

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 3-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4:What is the product transportation method?
Answer: the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Pls leave message to us.We will reply u asap we get it.

And other question, pls feel free to contact me.

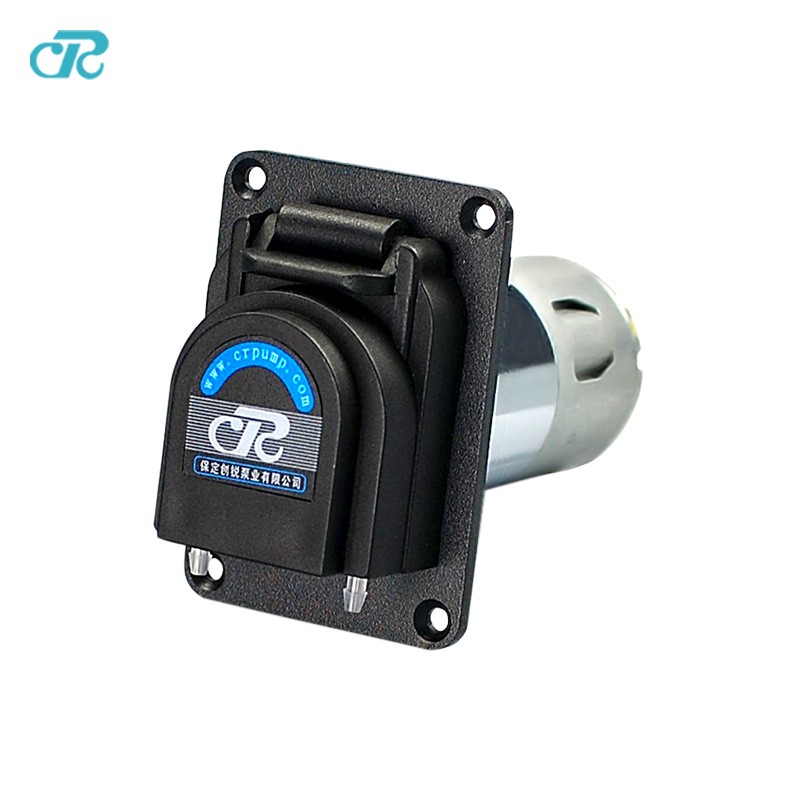

OEM204/ZN25

Max flow : 1740 ml/min

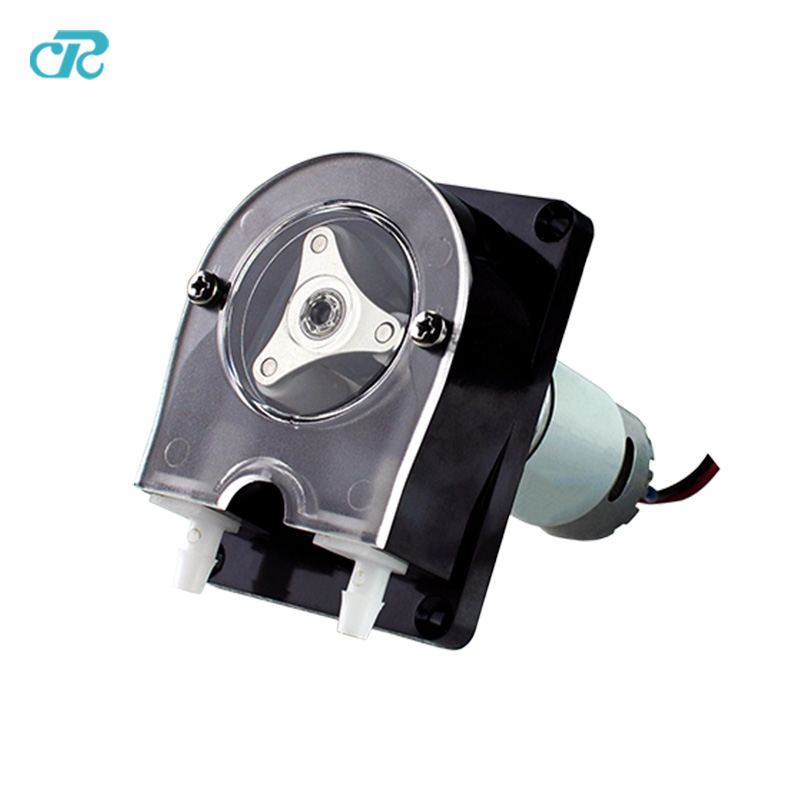

OEM206/WP300

Max flow : 1000 ml/min

OEM208/KZ25

Max flow : 6000 ml/min

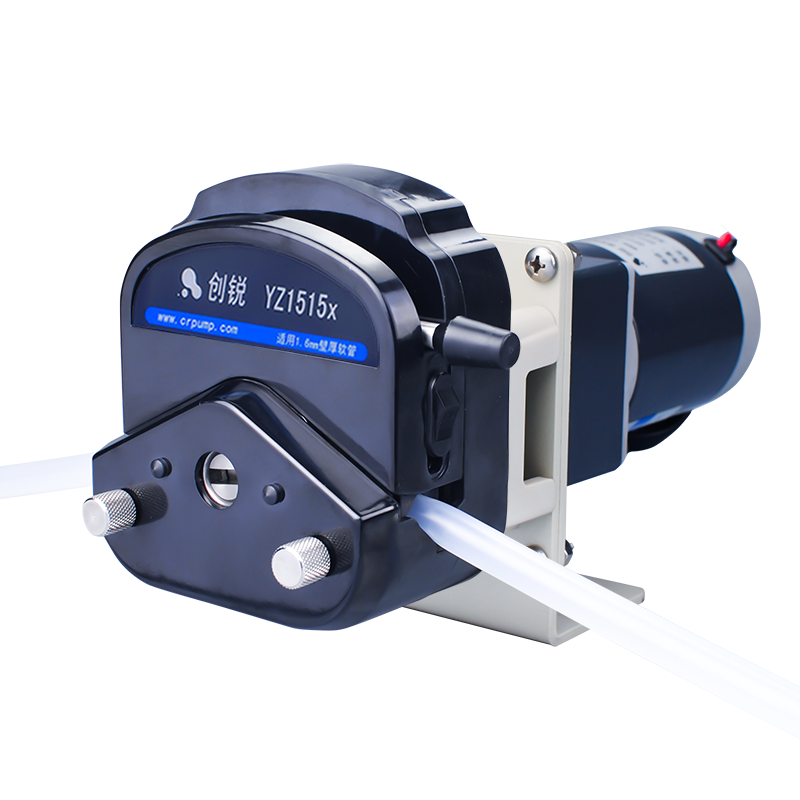

OEM201/YZ1515x

Max flow : 2280 ml/min

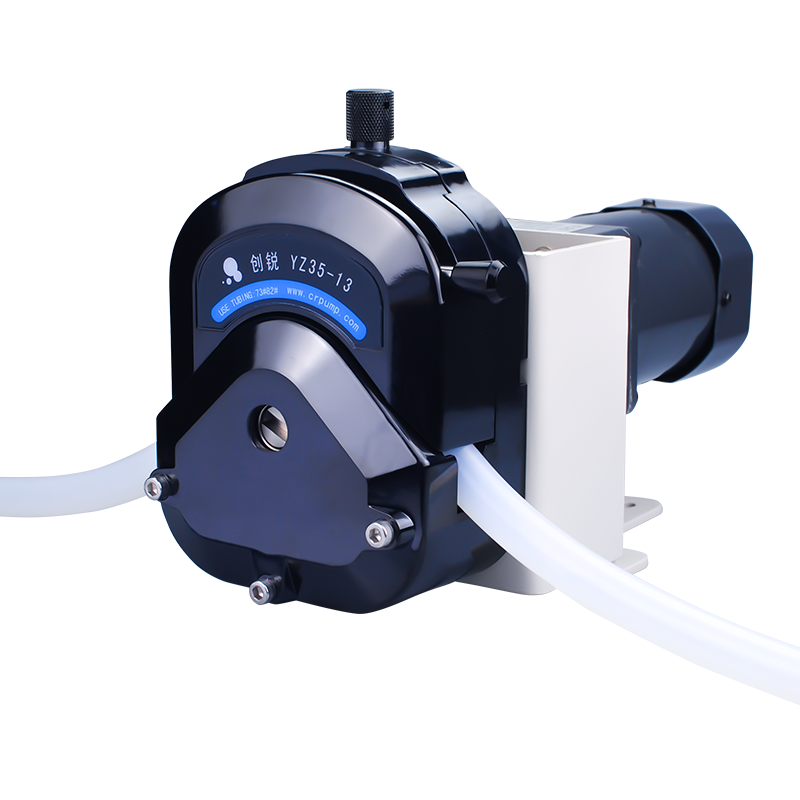

OEM200/YZ35-13

Max flow : 12000 ml/min

OEM209/WP110

Max Flow : 18 ml/min

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
