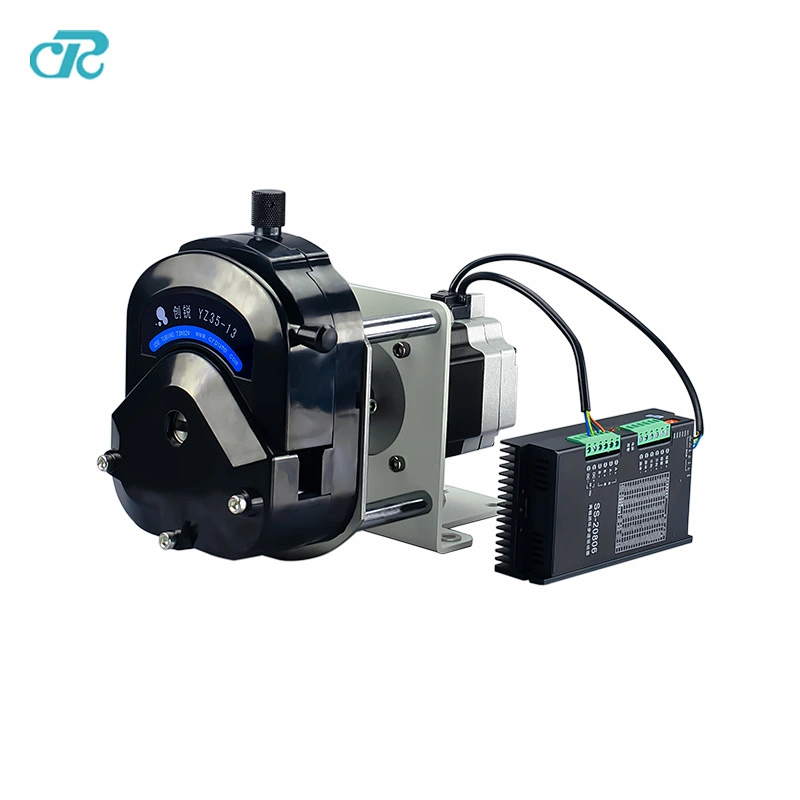

12L User Pulse control Driver Programmable Automotive Industry Flow Stepper motor Peristaltic Pump

Model NO.: UCP300/YZ35-13
Price:: US $ 400.00-600.00
Minimum order quantity: 1
Country of Origin: Tianjin,Shanghai,Guangzhou

Quantity:

Product Description

Theory:peristaltic pump
Model:UCP300
Pump head:YZ35-13
Flowrate:0.27-12000ml/min
Max speed:600rpm
Pump head material:PPS
Roller material:304 stainless steel
IP rate:IP31
Tube:73# 82#
Customized support:OEM
Customized support:ODM
Customized support:OBM
Power Source:Electric
Structure:Peristaltic Pump
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:Chuangrui
Model Number:UCP300/YZ35-13
Application:Automotive Industry
Application:Biofuel Industry
Application:Mining industry
Application:Industrial Peristaltic Pump
Horsepower:Other
Pressure:Low Pressure
Cable Length:other
Outlet Size:Max 12mm
Voltage:Other

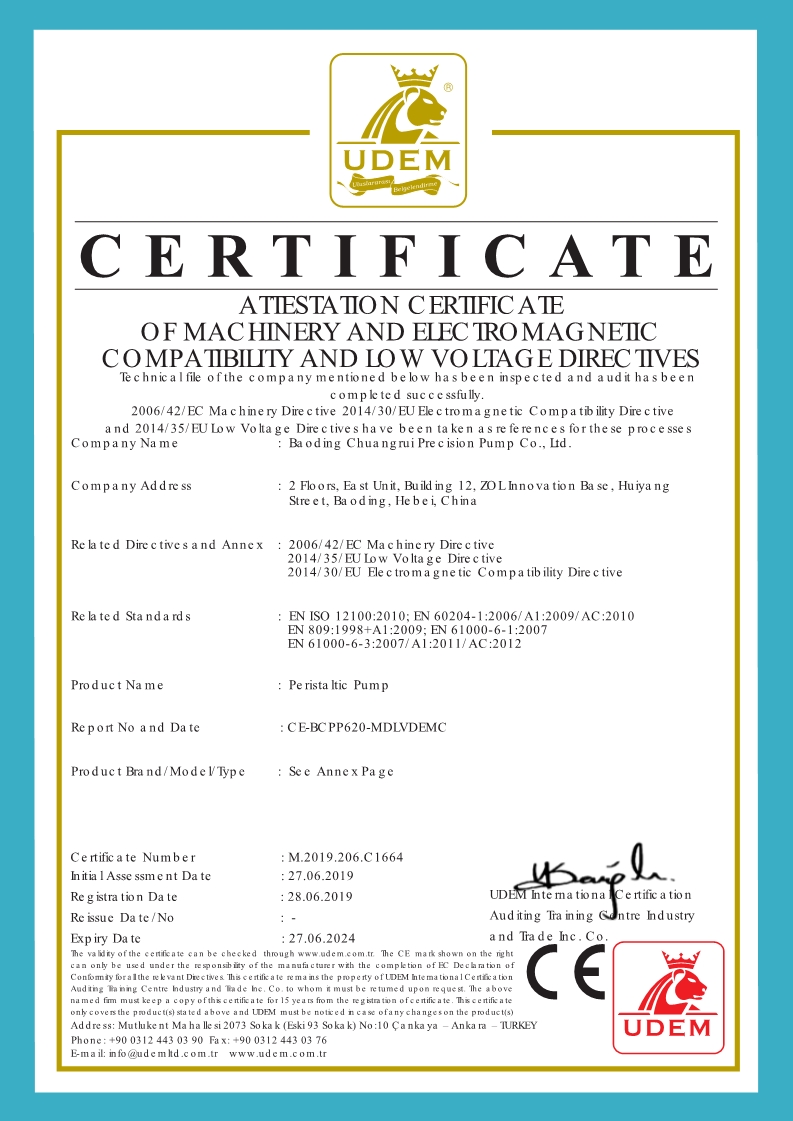

Certification:ce
Certification:TUV
Certification:ISO9001

Product Description

Chuangrui liquid handling pump

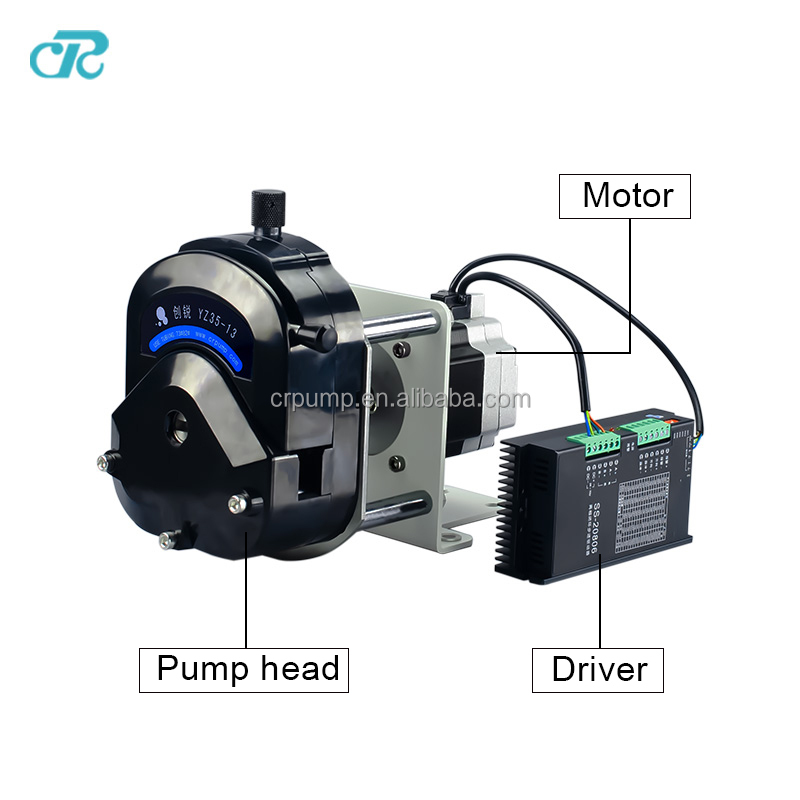

The UCP300 stepper motor peristaltic pump have superb features built-in and flexible design to meet specific customer needs.

Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump powerful functions.

Order guide

stepper motor peristaltic dosing pump

The peristaltic pump suitable for wall thickness 3.3mm Silicon tube, Pharmed bpt etc. material
tube, flow range up to12000 ml/min. The shell of pump head is made of PPS material and the roller is made of 304 SSS material. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .

Order list for the small peristaltic pump UCP300.

Noted:

1.The defaulted model we will send is UCP300A

2.Defaulted channel number is 1 ,If you need multiple pls contact us

3, The defaulted pump head material is pps (black)

4, Support multiple channels customized, more info ,pls contact us.

Order Number

Model

Pump head

Motor

Driver

Control method

Tube model

Max Flow

(ml/min)

UCP300A

UCP300

YZ35-13

NEMA34

User control

82#

12000

UCP300B

UCP300

YZ35

NEMA34

User control

82#

12000

UCP300C

UCP300

YZ35-13

NEMA34

806 DRIVER

User control

82#

12000

UCP300D

UCP300

YZ35

NEMA34

806 DRIVER

User control

82#

12000

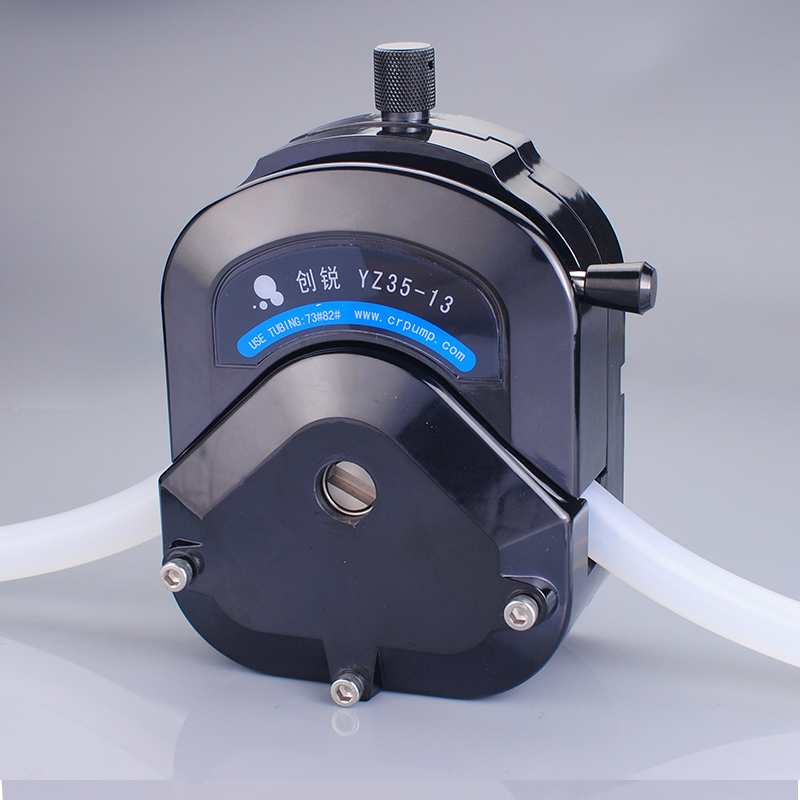

Tube specifications for the pump YZ35-13 YZ35
Tube model	ID(mm)	OD(mm)	Max flow (ml/min)	Standard material	Optional material
82#	12.7	19.3	12000	Silicon tube	pharmed BPT/Norprene A-60-F..etc.
73#	9.6	16.2	7400	Silicon tube	pharmed BPT/Norprene A-60-F..etc.

Pump head with PPS material (Black)

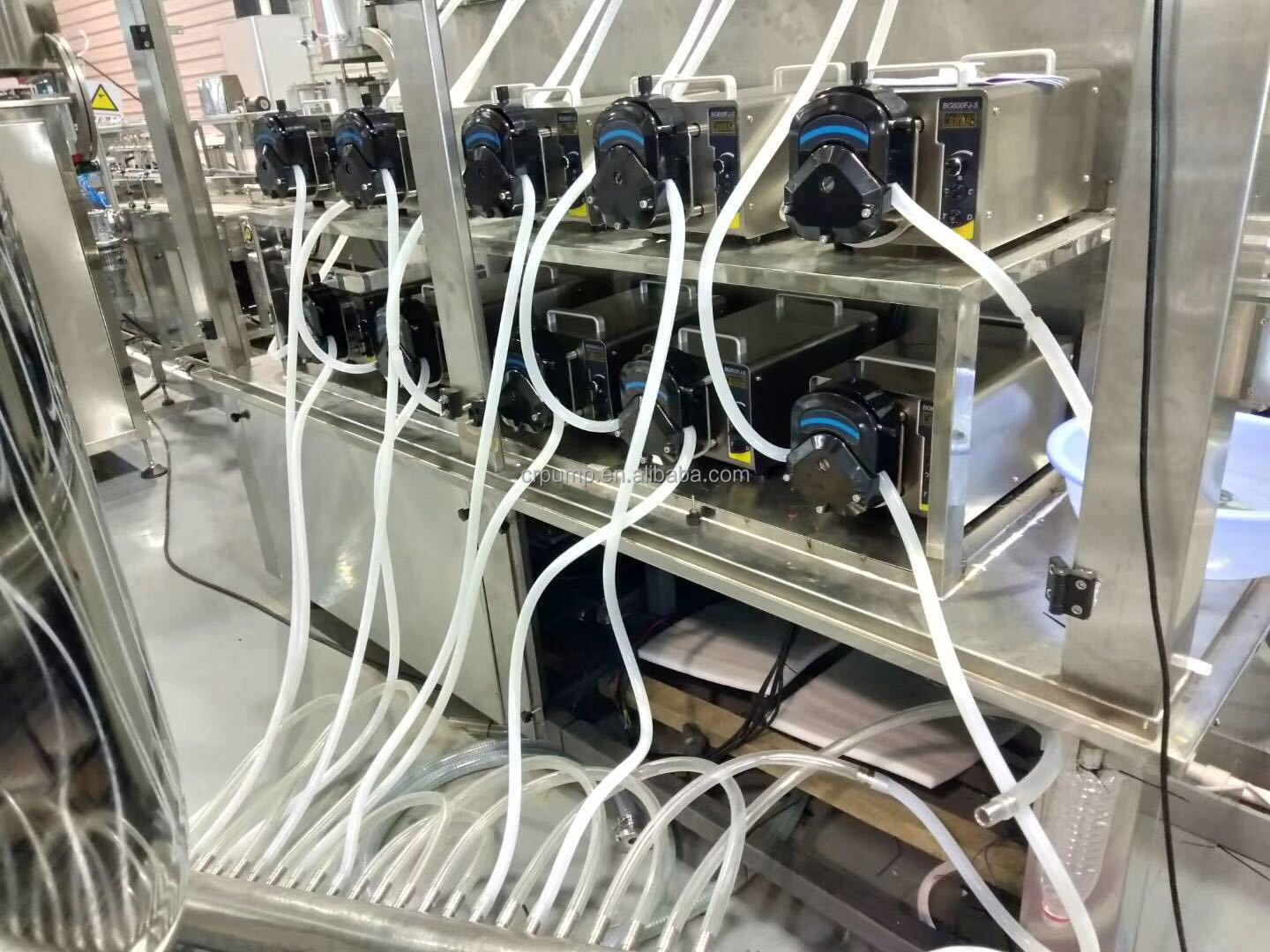

Typical application : Chemical industry/ packing machine/printing /fine chemical, laboratory, food canning, chemical reagent filling, Dispense juice, chocolate,
etc.- Refrigeration / Condensate Removal- Analytical / Fluid Transfer, Wastes- Commercial Exercise Eqpt. / Lubrication- Grease Trap Control /etc..

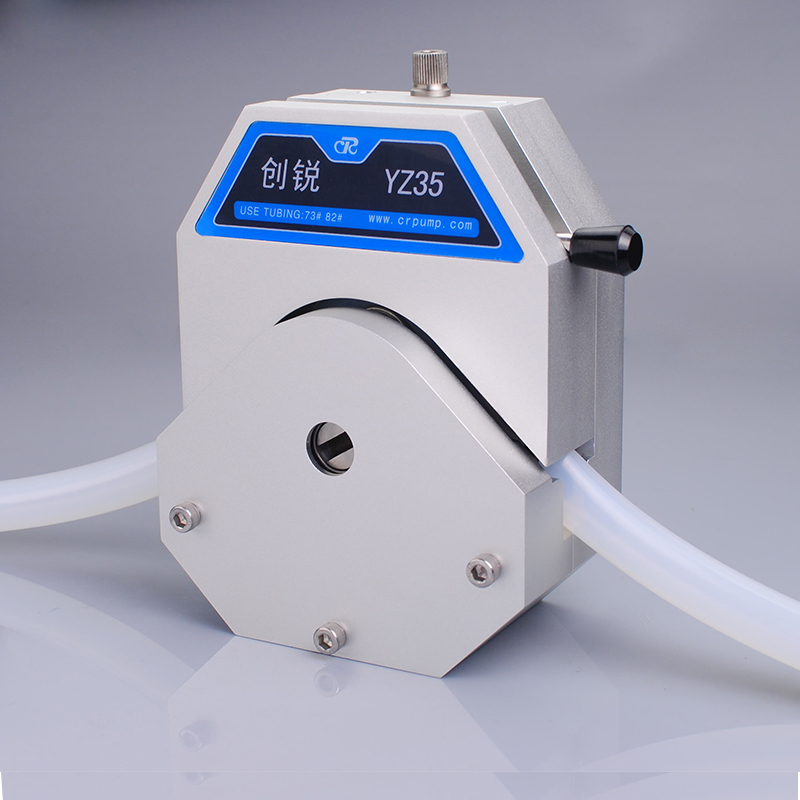

Pump head with Aluminum alloy

Typical application : Packing machine/Medical/ Lab/ Analytical Instruments ,Commercial Dish washing / Chemical Dispensing- Vending Machine / Post Mix Syrups- Beverage Dispensing /Timed Dispense of Enzymes- Fluid Sampling / Water Sampling, DC Powered- Water Conditioning / Chlorination/PH control..etc.

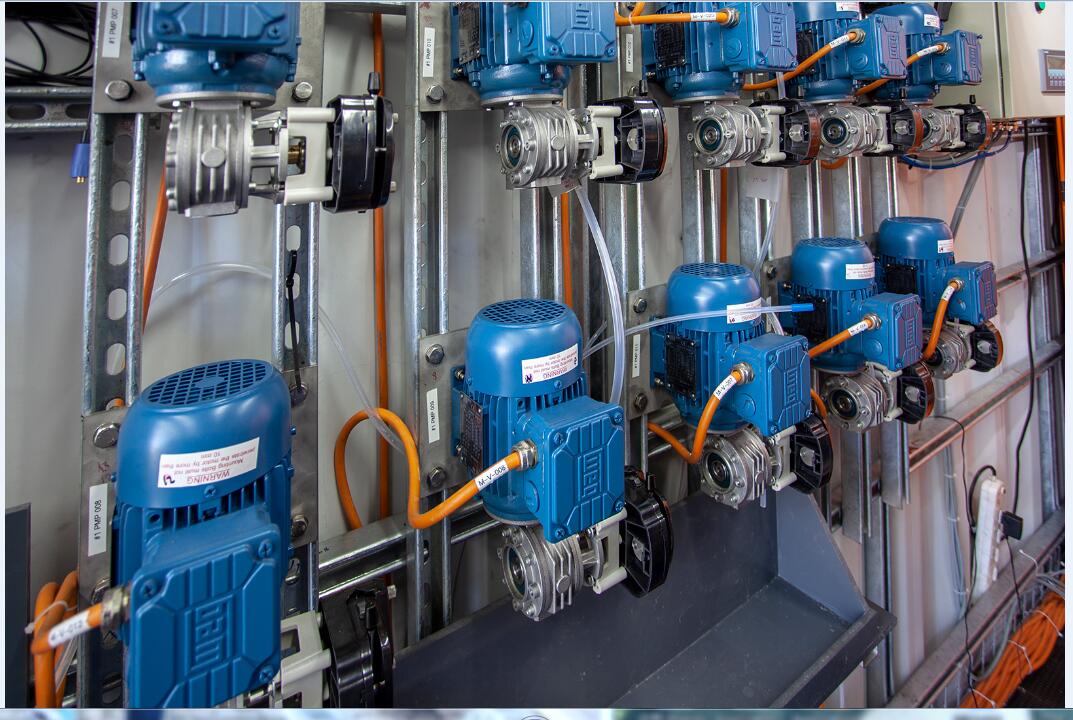

Application For additive feeding

Application For waste water application

Order Guide

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4,for bottle filling ,what's your bottle's volume? mlHow many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Packing & Delivery

OEM204/ZN25

Max flow : 1740 ml/min

OEM206/WP300

Max flow : 1000 ml/min

OEM208/KZ25

Max flow : 6000 ml/min

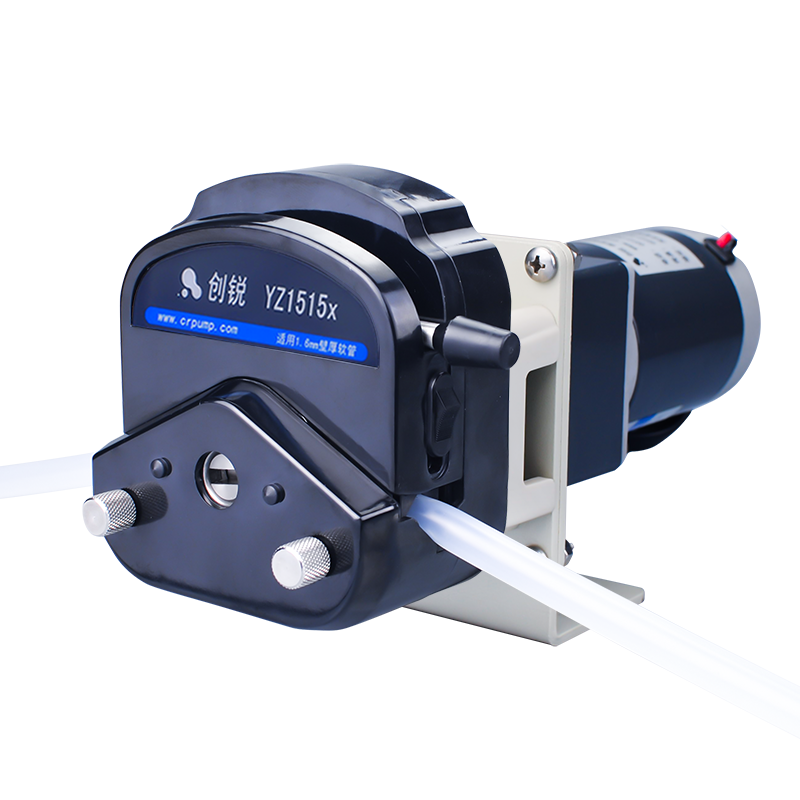

OEM201/YZ1515x

Max flow : 2280 ml/min

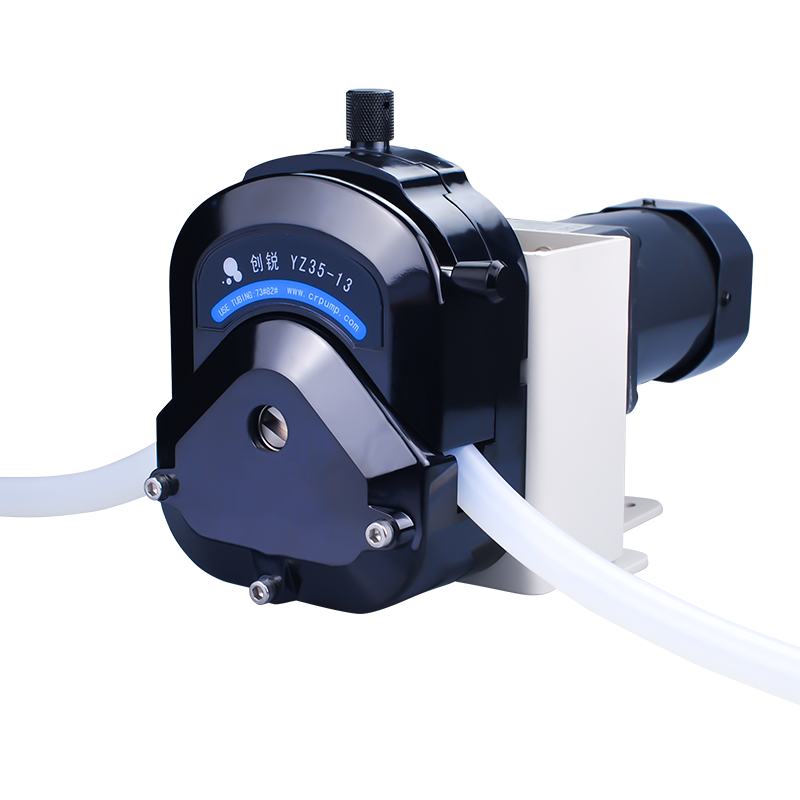

OEM200/YZ35-13

Max flow : 12000 ml/min

OEM209/WP110

Max Flow : 18ml/min
