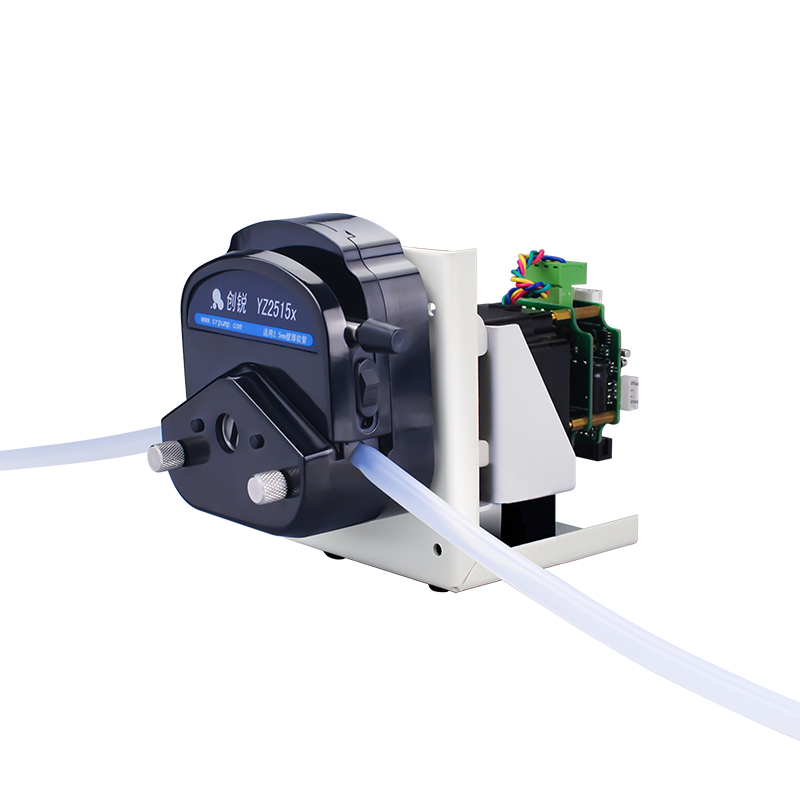

Small size Support RS485/232 communication protocol user control programmable peristaltic dosing pump

Warranty:                              1 YEAR

Customized support:           OEM, ODM, OBM

Brand Name:                        CHUANGRUI

Model Number:                    UCP302

Place of Origin:                    China

Application:                         Food and Beverage Industry, Industrial Utilities,
                                              Machining, Mining industry, Wastewater Transport and
                                              Flood Control, Water Treatment Solutions

Horsepower:                       <30W

Power Source:                     Electric

Pressure:                             LOW

Structure:                            peristaltic pump

Outlet Size:                         ID 6.4mm

Voltage:                              DC24-48V

Power:                                 <30W

Model:                                UCP302

Pump head:                        YZ2515X

Motor:                                Stepper motor

Flowrate:                            0.17-1740ml/min

Max speed:                        600rpm

Roller material:                 304 stainless steel

Tube:                                 15# 24#

Certification:                      ce

Packaging & Delivery

Selling Units:                     Single item

Single package size:          30X20X20 cm

Single gross weight:          3.000 kg

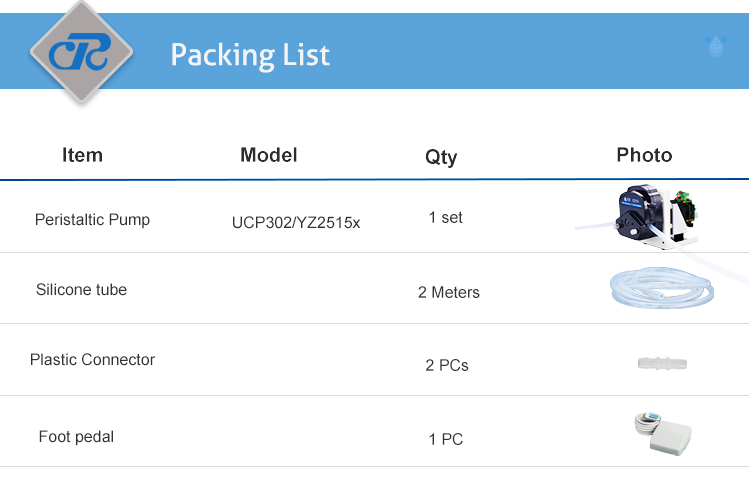

Package Type:                   1. The package contains a peristaltic pump and its accessories.
                                            2. foam and carton packaging can protect the safety of the peristaltic pump during transportation.
                                            3.If you have other packaging needs, please contact our sales staff in time.

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	7	To be negotiated

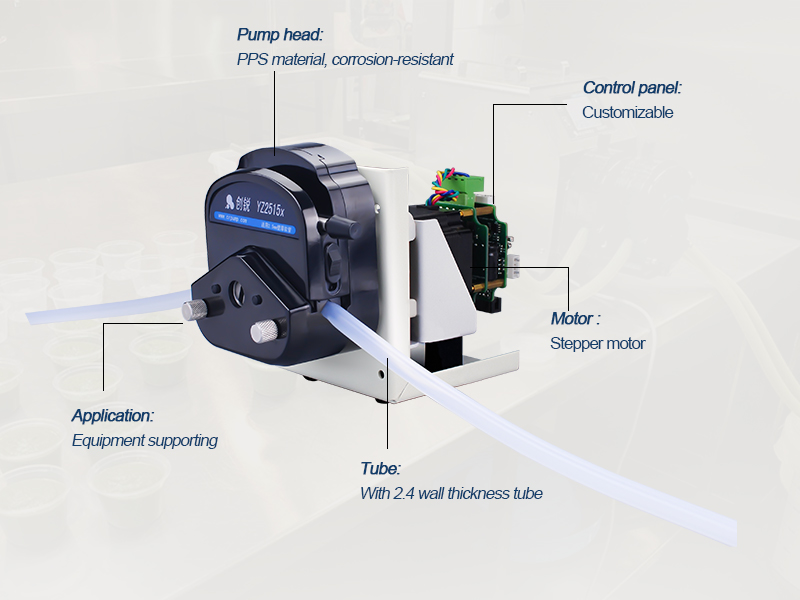

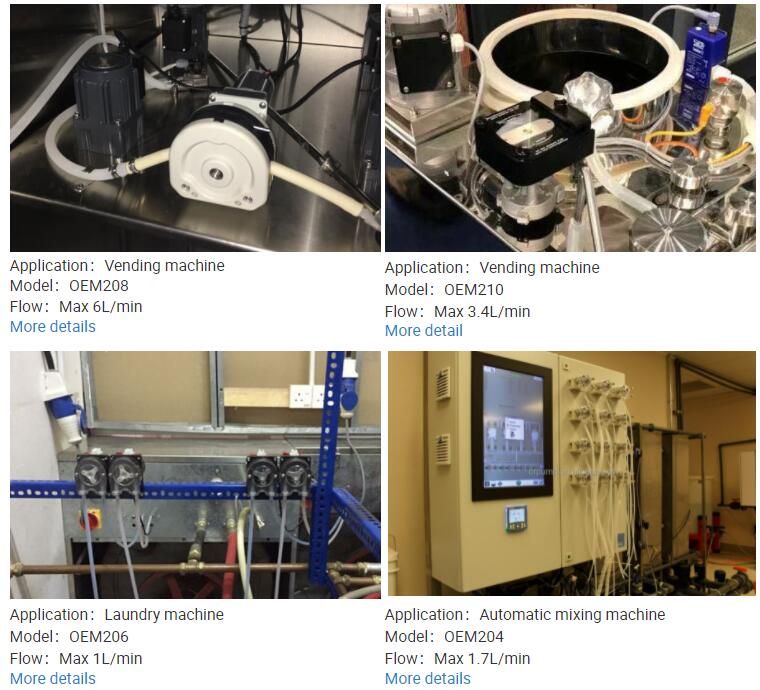

Customized OEM Peristaltic Pump

The UCP design started from the customer's requirements for small size, multi-function and high precision, and supports PLC control.Stepping motors and conventional drivers are mostly used for packaging machinery. The speed of the pump can be controlled by pulse to achieve precise filling. Chuangrui's unique control program can support analog control (0-5v 0-10v 4-20mA 0-10KHz) start-stop control, direction control. It also supports RS485 communication protocol. The pump can be better embedded and combined with the customer's equipment.

Model	UCP302
Channel	1(default) or customizable
Speed range	Max 600 rpm
Max Flow	1740ml/min
Control program	analog control/RS485 communication protocol

Tube Model	ID (mm)	Wall Thickness (mm)	Max Flow (ml/min)	Speed（rpm）
15#	4.8	2.4	1020	600
24#	6.4	2.4	1740	600

Kindly reminder:

All the data in the Above chart is based on the water.

If your liquid is viscous or corrosive, then this selection guide is not suitable for you.

Contact us, we will help you with better selection.

The above data is for reference only.
