AFS or water treatment micro Flow Peristaltic pump

AFS or water treatment micro Flow Peristaltic pump

Model NO.: UCP312
Price:: US $ 100.00-400.00

Type:peristaltic pump
Maximum Head:other
Maximum Flow Rate:36ml/min

Quantity:

Product Description

Quick Details

Warranty: 1 year, 1 Year

Customized support: OEM, ODM, OBM

Brand Name: CR

Model Number: UCP312

Place of Origin: Hebei, China

Application: Automotive Industry, Food and Beverage Industry, Metal and Equipment Manufacturers, Pharmaceutical industry, Wastewater Transport and Flood Control, Water Treatment Solutions, transfer liquid

Horsepower: other

Power Source: Electric

Pressure: low pressure

Structure: peristaltic pump

Cable Length: other

Outlet Size: Max 3mm

Voltage: other

Product name: UCP312

Flow rate: 0.002~36ml/min

Speed: 0.1 to 100 rpm, reversible

Motor tyoe: NEMA23

Function: transfer or filling (Customizable)

Speed precision: 0.1 rpm

MOQ: 1 Piece

Usage: liquid transfer/filling

PLC contorl: support

Certification: ce, TUV, ISO9001

Supply Ability

Supply Ability 3000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details 1. The package contains a peristaltic pump and its accessories. 2. Carton and foam packaging can protect the safety of the product during transportation.

Port Tianjin,shanghai,guangzhou

Lead Time:

Quantity(Pieces)	1 - 3	>3
Est. Time(days)	7	To be negotiated

Product Description

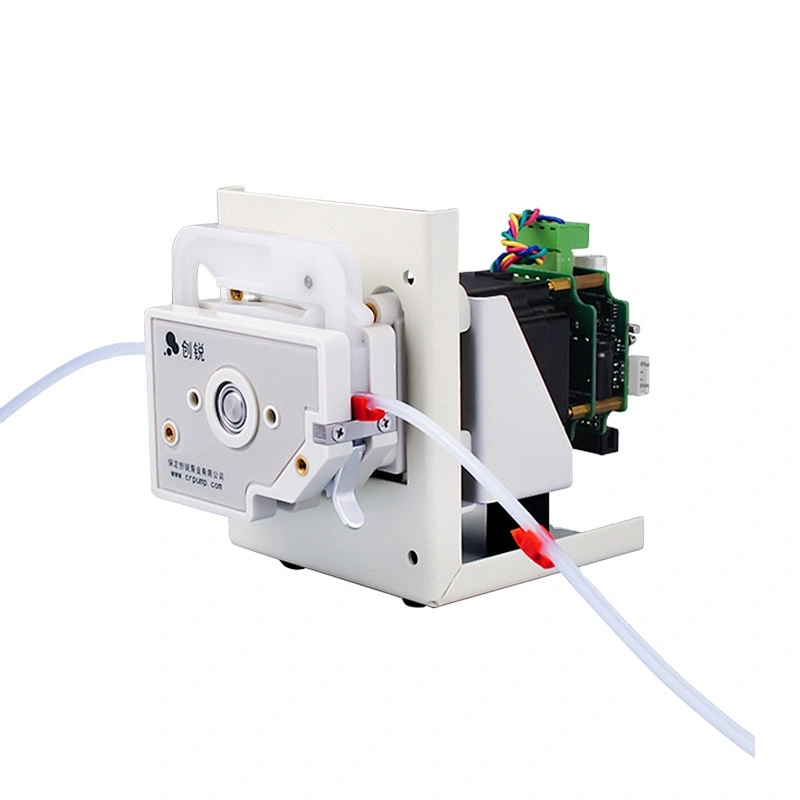

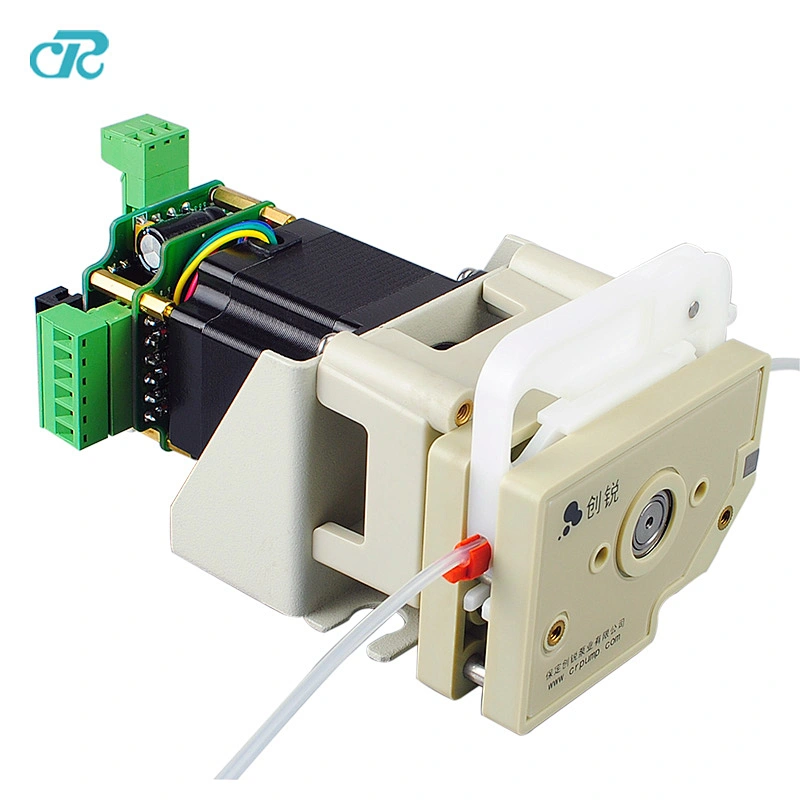

Stepper motor peristaltic pump
The UCP design started from the customer's requirements for small size, multi-function and high precision, and supports PLC control.

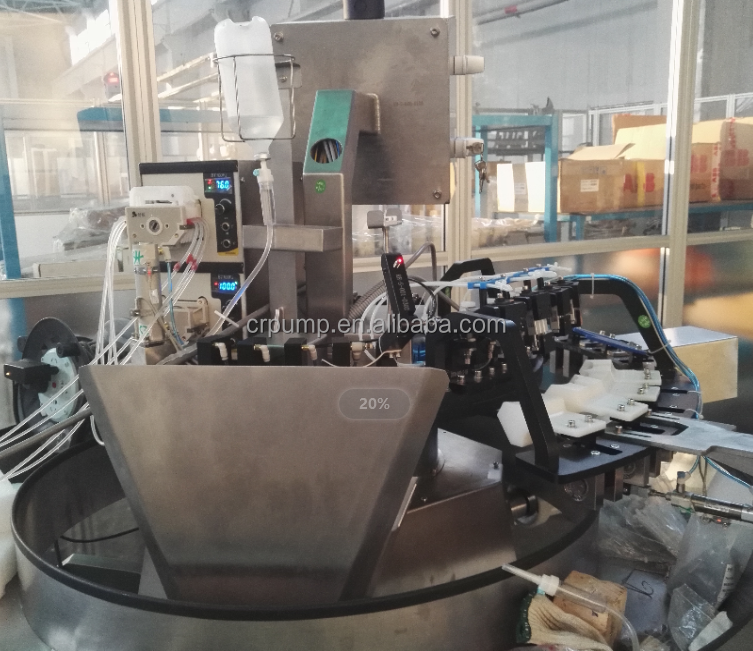

Stepping motors and conventional drivers are mostly used for packaging machinery. The speed of the pump can be controlled by pulse
to achieve precise filling. Chuangrui's unique control program can support analog control (0-5v 0-10v 4-20mA 0-10KHz) start-stop
control, direction control. It also supports RS485 communication protocol. The pump can be better embedded and combined with the customer's equipment.

Specifications

small stepper motor peristaltic pump

Custom mounting brackets available.

- Ideal for fluid transfer application

- Pump head is compact and simple in design with same side tubing entry/exit.

- Perfect for space-limited applications.

- Pump heads are compact and easy to integrate into your Fluid applications.

- Call for more information on our pump services.

Order Noted:

This product is a customized product, please contact the sales for detailed understanding before purchasing.

Order number	Pump head Model	Motor	Driver Model	Control Method	Max Speed (rpm)	Max Flow (ml/min)
UCP312A	DG-1(6)	NEMA23	NO	User Control	100	36
UCP312B			CR Driver	User Control
UCP312C			CRSCLNZFJ	Control by control switch
UCP312D			CRSCLNZM	Control by control switch
UCP312E			CRSCLNZ5V	0-5V /start stop/direction
UCP312F			CRSCLNZ10V	0-10V /start stop/direction
UCP312G			CRSCLNZ20A	4-20mA /start stop/direction
UCP312H			CRSCLNZ10K	0-10Khz /start stop/direction
UCP312 I			CRSCLNZRS	RS485 Communication protocol

Product Description

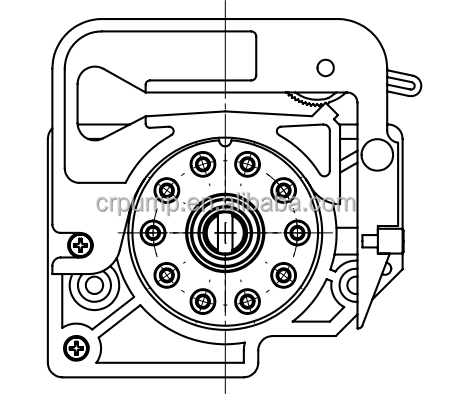

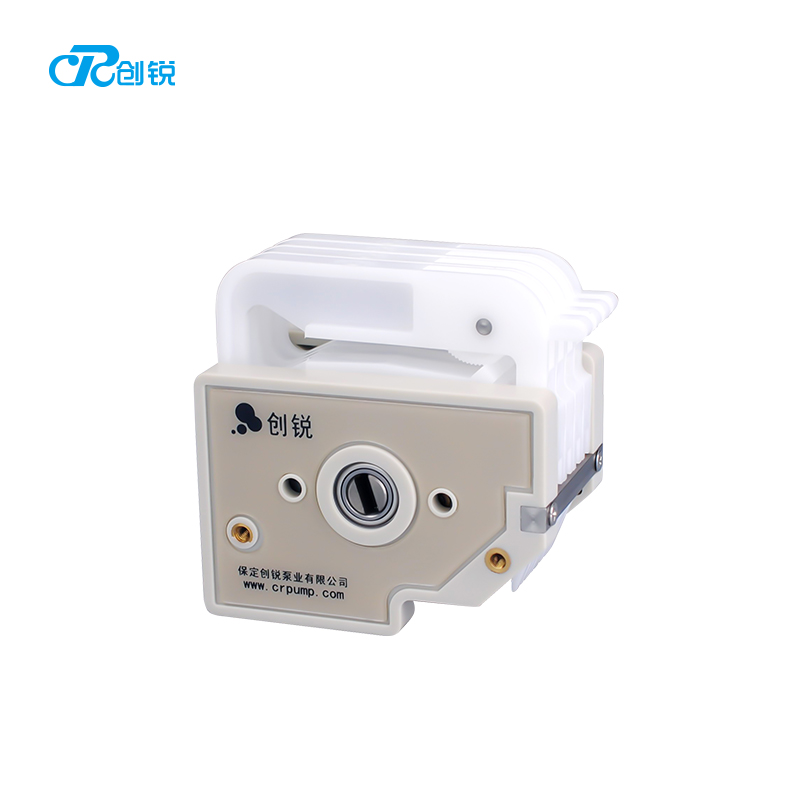

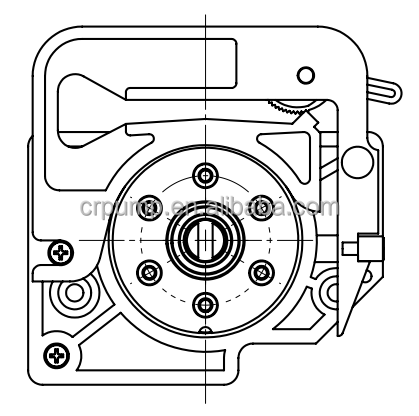

Micro Flow Lab design Multiple Channels Peristaltic pump head

The DG series micro-flow multi-channel peristaltic pump head is a separate card installation and special hose; the pressure tube
gap can be fine-tuned to adapt to different wall thickness hoses. Designed for small flow, multi-channel fluid delivery.

Specifications

DG pump heads with 6 rollers

Flow range : 0.002-36 ml/min

DG pump heads with 10 rollers

Flow range :0.0015-27ml/min

Model explanation

EX : DG-1(6) means 1 channel with 6 rollers

DG-2(10) means 2 channels with 10 rollers

Model	Roller number	Channel number	Model	Roller number	Channel number
DG-1(6)	6	1	DG-1(10)	10	1
DG-2(6)	6	2	DG-2(10)	10	2
DG-4(6)	6	4	DG-4(10)	10	4
DG-6(6)	6	6	DG-6(10)	10	6
DG-8(6)	6	8	DG-8(10)	10	8
DG-12(6)	6	12	DG-12(10)	10	12

Tube model	ID(mm)	OD(mm)	Speed(rpm)	Flow range for 6 rollers (ml/min)	Flow range for 10 rollers (ml/min)
0.5*0.8	0.5	2.1	0.1-100	0.002-0.2	0.0015-1.5
1*1	1	3	0.1-100	0.006-6	0.004-4
2*1	2	4	0.1-100	0.019-19	0.013-13
2.4*0.8	2.4	4	0.1-100	0.024-24	0.017-17
3*1	3	5	0.1-100	0.036-36	0.0.027-27
