crpump DC12V 24V motor 1 liter Small dosing pump Peristaltic Pumps

Warranty:                                1 year

Customized support:             OEM, ODM, OBM

Brand Name:                          Chuangrui

Model Number:                      OEM206

Place of Origin:                       Hebei, China

Application:                            Automotive Industry, Food and Beverage Industry, Machining, Metal and Equipment
                                               Manufacturers,Pharmaceutical industry, Washing and Cleaning, Wastewater Transport
                                               and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions

Horsepower:                          none

Power Source:                        Electric

Pressure:                                low pressure

Structure:                               peristaltic pump

Cable Length:                        none

Outlet Size:                            Max 7.9mm

Voltage:                                  DC12V or 24V, DC24V DC12V

Power:                                    6w

Model:                                     OEM206/WP300

Max Flow rates:                     1000ml/min

Rotating speed:                     300 rpm

Suitable tubing type:             16# 25# 17# 18#

Usage:                                    liquid transfer

Packaging & Delivery

Selling Units:                         Single item

Single package size:              19X19X19 cm

Single gross weight:              1.000 kg

Package Type:                        1.1 set of Small Peristaltic Pump/carton
                                                 2.Carton with plastic foam, make sure the Small Peristaltic Pump is safe during shipping.

Lead Time:

Quantity(Pieces)	1 - 5	>5
Est. Time(days)	7	To be negotiated



Product Description

small peristaltic pump

Custom mounting brackets available.

- Ideal for fluid transfer application which require high accuracy and repeatability.
- Pump head is compact and simple in design with same side tubing entry/exit.
- Perfect for space-limited applications.
- Pump heads are compact and easy to integrate into your OEM applications.
- Call for more information on our OEM services.

Specifications

Order number	Model	Pump head	Motor Voltage	Motor speed	Flow with tube 18#
20624125	OEM206-1	WP300-3	DC24V	125rpm	400 ml/min
20624300	OEM206-1	WP300-3	DC24V	300 rpm	1000 ml/min
20612300	OEM206-1	wp300-3	DC12V	300 rpm	1000 ml/min

Tube model	ID(mm)	OD(mm)	Max Flow with 125 rpm(ml/min)	Max Flow with 300 rpm(ml/min)
18#	7.9	11.2	400	1000
17#	6.4	9.6	300	750
25#	4.8	8	200	500
14#	1.6	4.8	20	50

Noted: The default order number is 20624300 with silicon tube 18# 1 meter

If you need other model pump or tube pls contact our sales .

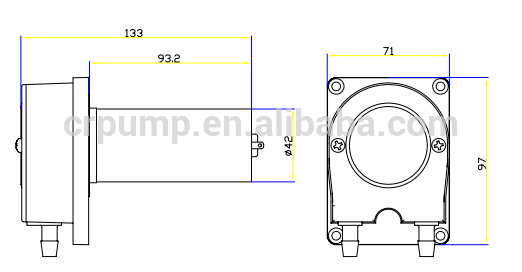

Small dimension
Compact structure design, simple installation design, and good working performance, widely used in various liquid processing equipment
The OEM206 pumps have superb features built-in and flexible design to meet specific customer needs.

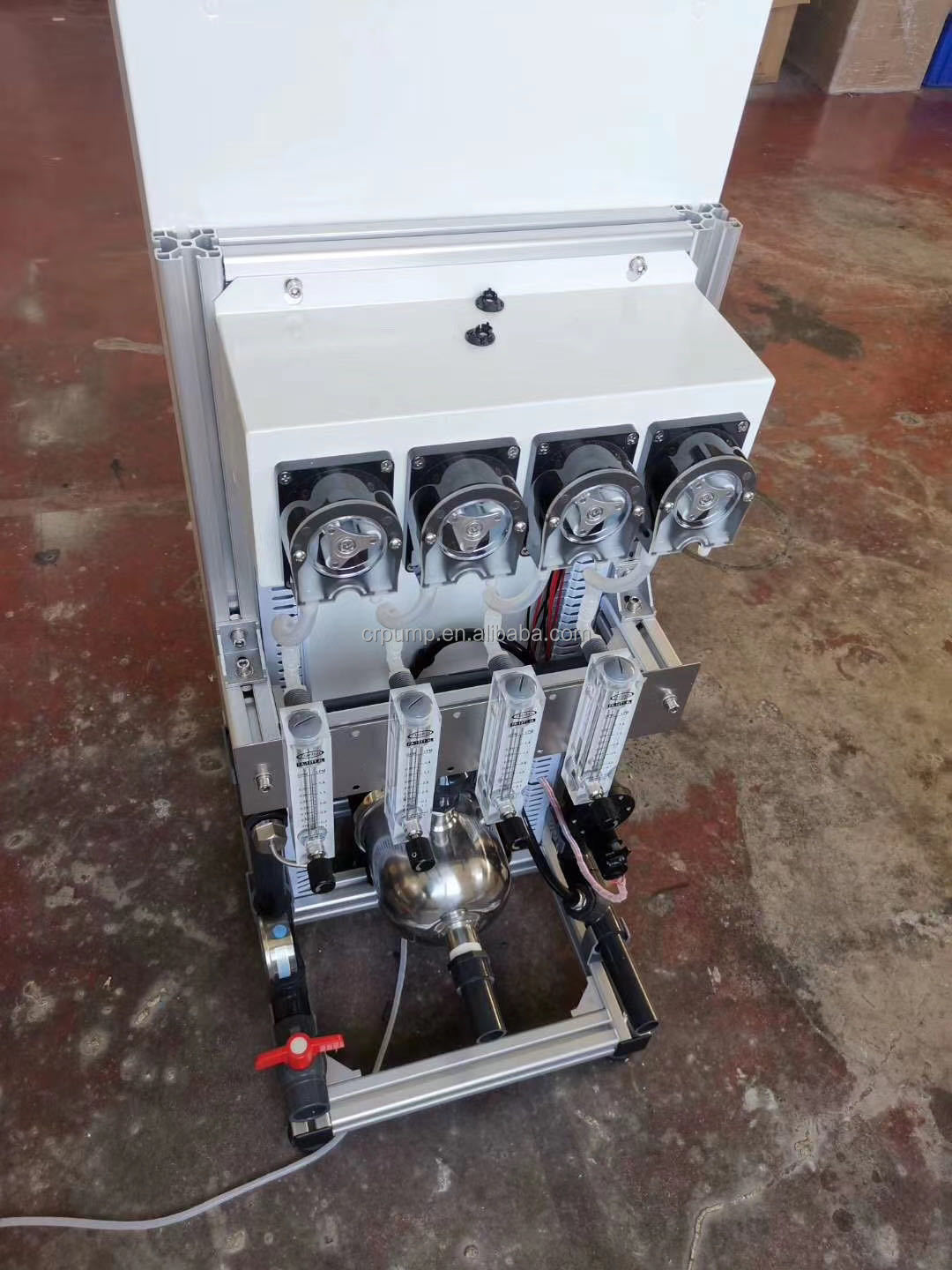

Typical Application
* Washing machine matching
*COD water treatment
* Detergent Liquid Transferring



Order guide OEM

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ?bottle filling or constant transfer ?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?


5, For the OEM pump. pls tell me the model no. you want ? Thanks

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .
