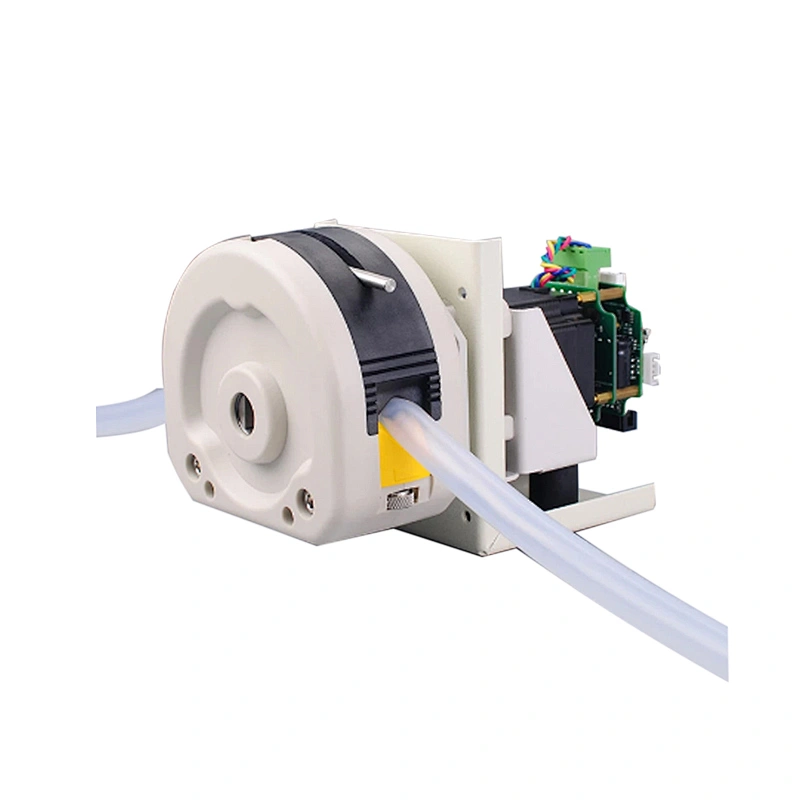

Customizable Peristaltic Pump Vending Machine Matching Peristaltic Pump

Warranty:                                    1 year

Customized support:                  OEM, ODM

Brand Name:                               Chuangrui

Model Number:                          UCP308/KZ25

Place of Origin:                           Hebei, China

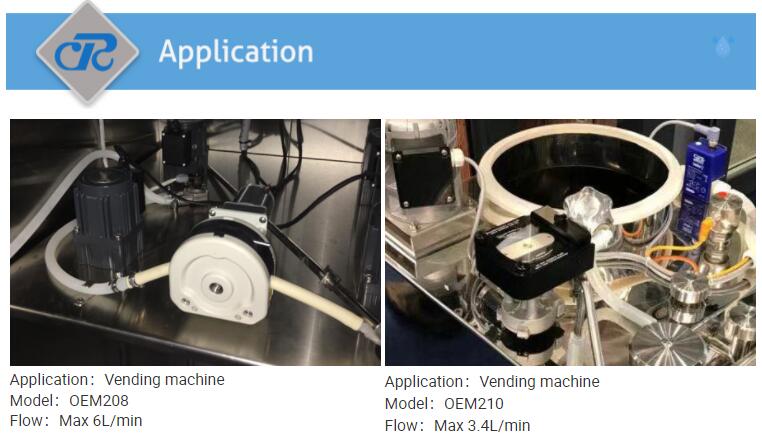

Application:                                Supporting Packing Machine, vending machine pump

Horsepower:                               None

Power Source:                             Electric

Pressure:                                     Low Pressure

Structure:                                    peristaltic pump

Cable Length:                             none

Outlet Size:                                 Max 9.6mm

Voltage:                                      Other

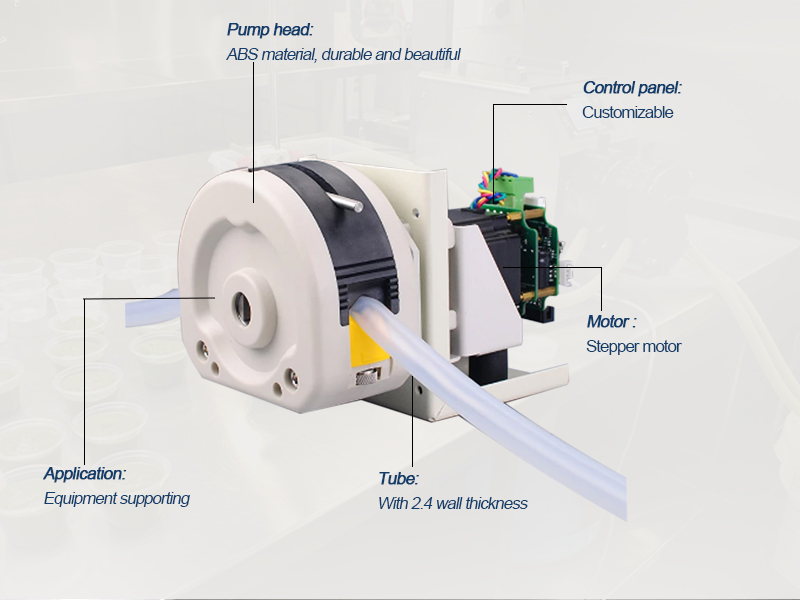

Model:                                        UCP308

Pump head:                                KZ25

Motor:                                         Stepper motor

Flowrate:                                     Max 3000ml/min

Max speed:                                 300rpm

Tube:                                           15# 24# 35# 36#

Certification:ce

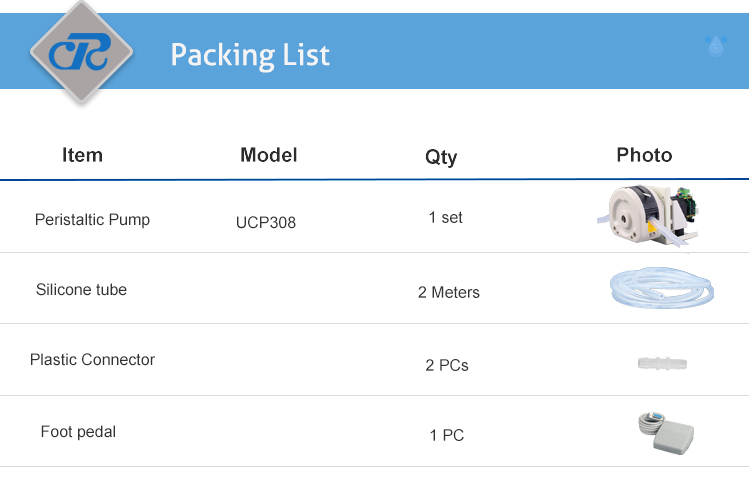

Packaging & Delivery

Selling Units:                               Single item

Single package size:                    29X19X19 cm

Single gross weight:                    4.000 kg

Package Type:                             1. The peristaltic pump is carton with plastic foam.
                                                      2. The peristaltic pump can also be packed strictly
                                                      according to the customer's requirements.

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	7	To be negotiated



Customized OEM Peristaltic Pump

The UCP design started from the customer's requirements for small size, multi-function and high precision, and supports PLC control.Stepping motors and conventional drivers are mostly used for packaging machinery. The speed of the pump can be controlled by pulse to achieve precise filling. Chuangrui's unique control program can support analog control (0-5v 0-10v 4-20mA 0-10KHz) start-stop control, direction control. It also supports RS485 communication protocol. The pump can be better embedded and combined with the customer's equipment.

Model	UCP308
Channel	1(default) or customizable
Speed range	Max 300 rpm
Max Flow	3000ml/min
Control program	analog control/RS485 communication protocol



Model	UCP308/KZ25
Speed range	0.1-300rpm
Flow range	Max 3000ml/min
Speed resolution	0.1 rpm
Control method	encoded switch or PLC
Power supply	DC24V-48V or AC Adaptor optional
PLC Control	Support RS485 communication protocol /analog control (0-5v 0-10v 4-20mA) etc.

Kindly reminder:

All the data in the Above chart is based on the water.

If your liquid is viscous or corrosive, then this selection guide is not suitable for you.

Contact us, we will help you with better selection.

The above data is for reference only.









Baoding Chuang Rui  Precision Pump Co., Ltd. Started production  of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
