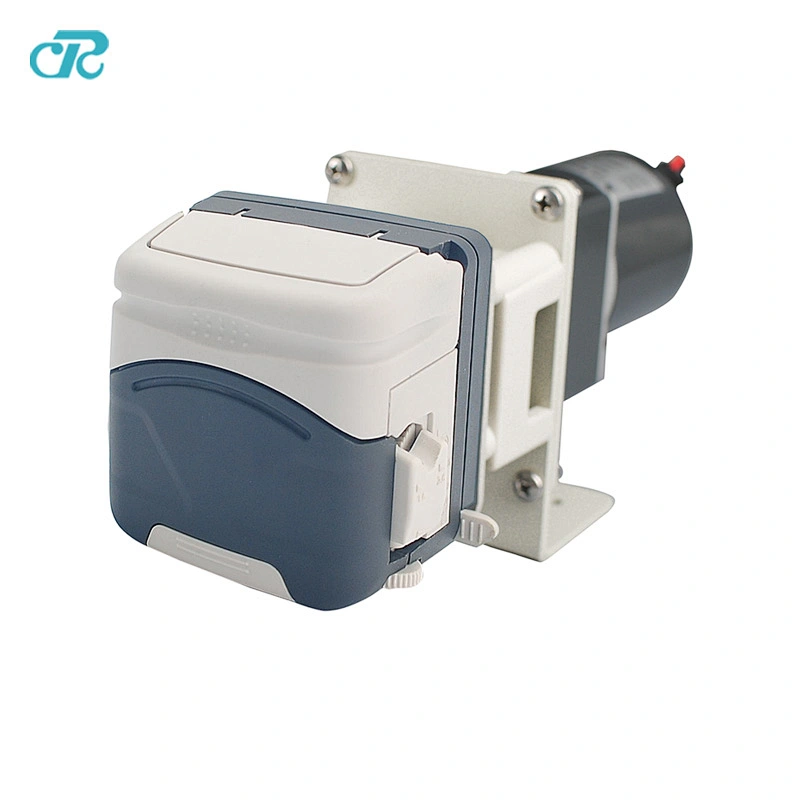

Economical Quick-installation Transfer OEM Peristaltic Pump

Model NO.: OEM203

Flow Range: Max 2000 Ml/min

Quantity:

Product Description

This economical quick-installation transfer OEM Peristaltic Pump is newly developed by the Chuangrui R&D team based on market demands, this OEM Peristaltic Pump is more focused on its products on-site operation and actual experience, and creatively added a series of humanized detail processing, both in terms of performance and structure, to meet the customer's multiple application requirements. it's a medium flow Small Peristaltic Pump, widely be used as Laboratory Peristaltic Pumps and Dosing Pump.

Typical Applications:

Food machinery: e g. Beverage Dispensing, liquid food fountains RO pure water machines

Detergent infusion : e g. Washing machine, Dishwasher,Kitchenware Equipments

Print equipments: printing ink infu sions

Analytical instruments

Car wash Equipments

Pharmaceutical Equip ments

Order guide:

The micro peristaltic pump suitable for wall thickness 1.6mm Silicon tube, Pharmed bpt etc. material
tube, flow range up to 2000 ml/min. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .

P.S.: 400 rpm is a regular specification, the DC motor peristaltic pump supports other speed customization.

Order Number	Model	Pump head	Motor Voltage	Motor Power	Motor Speed	Tube model	Max Flow	Speed control
20314A	OEM203-1	TX315	DC24V	15W	400rpm	18#	2000ml/min	NO
20314B	OEM203-1	TX315	DC24V	15W	400rpm	18#	2000ml/min	NO
20324C	OEM203-2	TX315	DC12V	15W	400rpm	18#	2000ml/min	NO
20324D	OEM203-2	TX315	DC12V	15W	400rpm	18#	2000ml/min	NO
