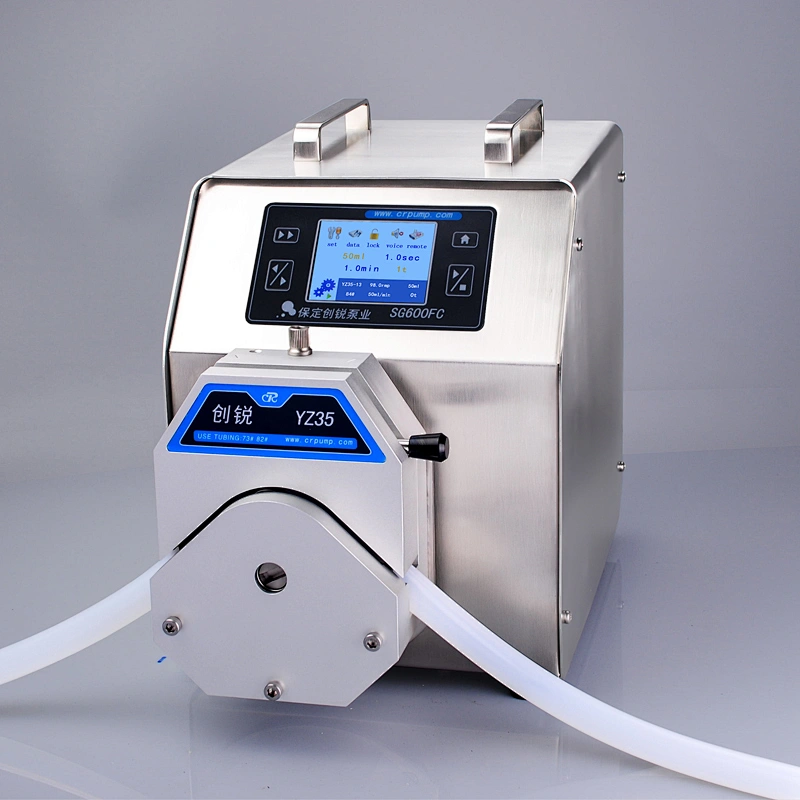

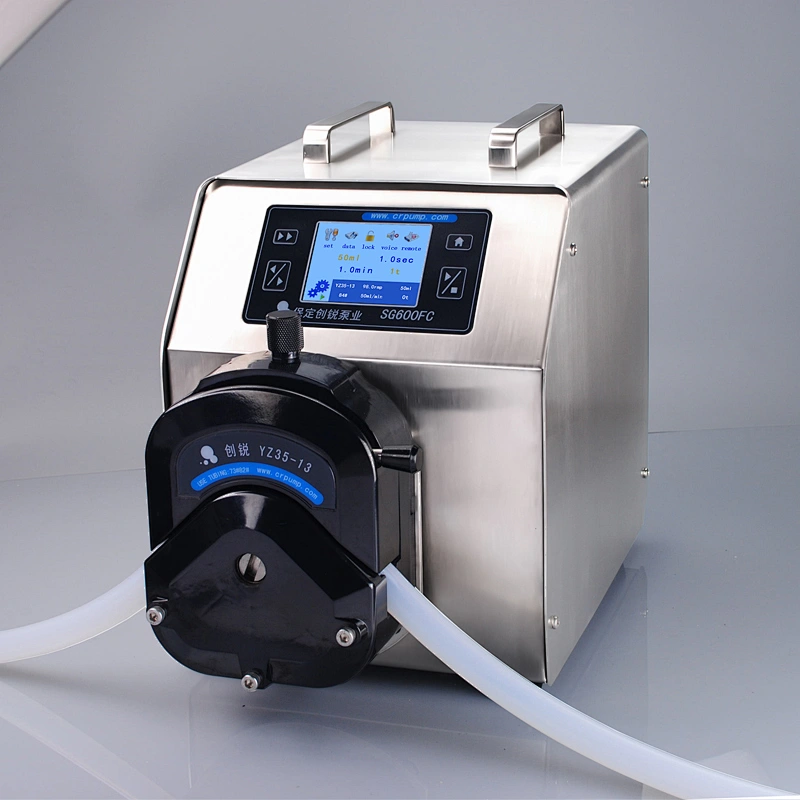

Industrial Touchscreen Filling Pump Flow Rate 0-12000ml/min
Industrial Touchscreen Filling Pump Flow Rate 0-12000ml/min
Industrial Touchscreen Filling Pump Flow Rate 0-12000ml/min
Industrial Touchscreen Filling Pump Flow Rate 0-12000ml/min
Industrial Touchscreen Filling Pump Flow Rate 0-12000ml/min

Industrial Touchscreen Filling Pump Flow Rate 0-12000ml/min

Model NO.
SG600FC/YZ35-13
* Drive Model: SG600FC
* Pump Head :YZ35-13 YZ35
* Speed range : 0.1-600 rpm（reversible）
* Flow range : 1.3-12000 ml/min
* Max channels :2
* Remote control : optional
* Foot pedal : optional
Quantity:
ModelSG600FC/YZ35-13Display ModeLCD screen
Speed Range0.1-600 rpmControl MethodTouch screen + keypad
speed resolution0.1 rpmEnvironment Temperature0-40℃
Max Flow12000ml/minRelatively Humidity<80%
Filling Accuracy<±0.5%Power consumption<50w
Filling volume range0.01-9999mlPower supplyAC220V or  AC110V
Filling time range0.1s-9999minMotor TypeStepper motor
Pause Time range0.1s~9999minExternal control
copy number range0~9999tStart & stop, direction control, speed control( Analog control :0-5v, 0-10v, 4-20mA optional )RS232 and RS485 communication interface, support MODBUS Communication Protocol
Suckback angle10°~720° (1° Stepping)

Tube parameter

TubeID(mm)Wall thickness
(mm) 		OD
(mm)		Speed
(rpm)		Flow rate
(ml/min)
73#9.63.316.20.1-6001.3-7400
82#133.319.60.1-6002-12000
