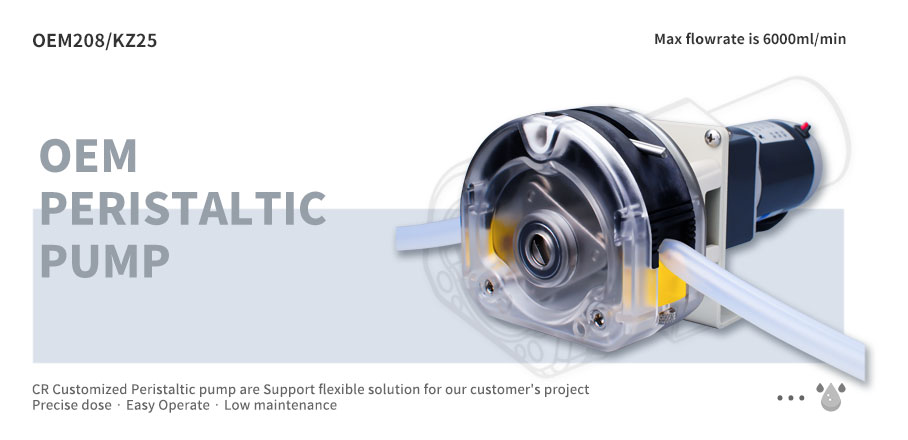

Milking Vending Machine pump DC 24V Peristaltic Pump
Our model OEM208 series is a versatile OEM peristaltic pump with 4 different tube sizes optionial, with adjustable speed motor available. It is one of the top selling OEM pumps. You will often find these peristaltic tubing pumps in vending machines, soft serve ice cream machines, milk vending machines, printers and other ink machines.The max flow up to 6000 ml/min
1. The corrosion resistance OEM208/KZ25 peristaltic pump has superb features built-in and flexible design to meet specific customer needs.
2. Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump a longer life.
Order Number | Model | Pump head | Motor Voltage | Motor Power | Motor Speed | Tube model | Flow | Speed control |
20816A | OEM208-1 | KZ25(PPS) | DC24V | 15W | 600rpm | 36# | 6000ml/min | NO |
20816B | OEM208-1 | KZ25(ABS) | DC24V | 15W | 600rpm | 36# | 6000ml/min | NO |
20816C | OEM208-1 | KZ25(PC) | DC24V | 15W | 600rpm | 36# | 3000ml/min | NO |
20826A | OEM208-2 | KZ25(PPS) | DC12V | 15W | 600rpm | 36# | 6000ml/min | NO |
20826B | OEM208-2 | KZ25(ABS) | DC12V | 15W | 600rpm | 36# | 6000ml/min | NO |
20826C | OEM208-2 | KZ25(PC) | DC12V | 15W | 600rpm | 36# | 6000ml/min | NO |
Motor speed with 400rpm | ||||||||
Order Number | Model | Pump head | Motor Voltage | Motor Power | Motor Speed | Tube model | Flow | Speed control |
20814A | OEM208-1 | KZ25(PPS) | DC24V | 15W | 400rpm | 36# | 4000ml/min | NO |
20814B | OEM208-1 | KZ25(ABS) | DC24V | 15W | 400rpm | 36# | 4000ml/min | NO |
20814C | OEM208-1 | KZ25(PC) | DC24V | 15W | 400rpm | 36# | 4000ml/min | NO |
20824A | OEM208-2 | KZ25(PPS) | DC12V | 15W | 400rpm | 36# | 4000ml/min | NO |
20824B | OEM208-2 | KZ25(ABS) | DC12V | 15W | 400rpm | 36# | 4000ml/min | NO |
20824C | OEM208-2 | KZ25(PC) | DC12V | 15W | 400rpm | 36# | 4000ml/min | NO |
