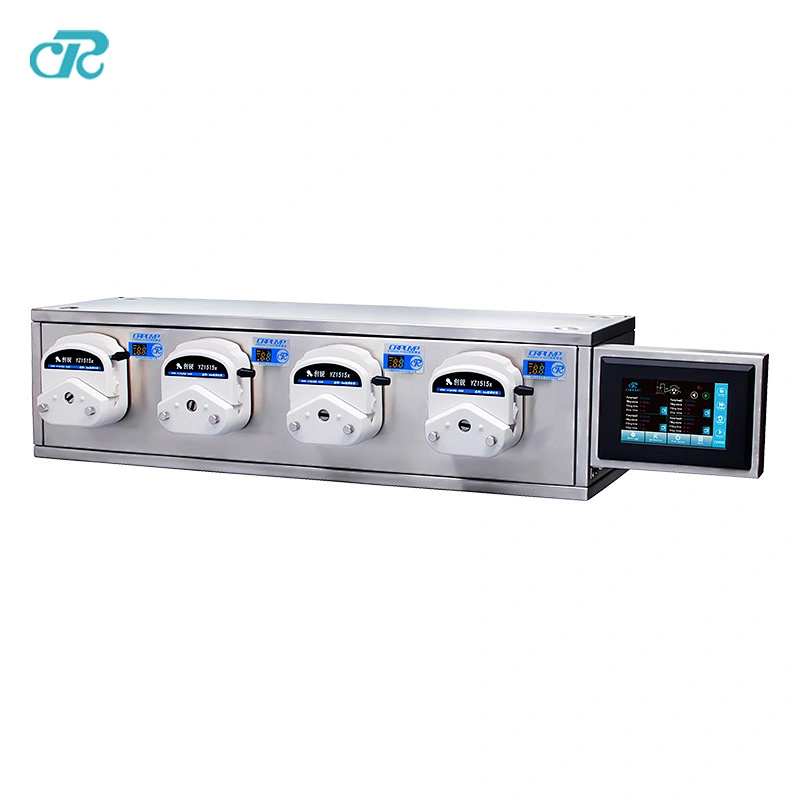

  5. Multi-channel Liquid Dispensing Peristaltic Pump Filling System Flow Rate: 0-2280ml/min
Multi-channel Liquid Dispensing Peristaltic Pump Filling System Flow Rate: 0-2280ml/min
Multi-channel Liquid Dispensing Peristaltic Pump Filling System Flow Rate: 0-2280ml/min

Multi-channel Liquid Dispensing Peristaltic Pump Filling System Flow Rate: 0-2280ml/min

Model NO.
GS600
* Drive Model: GS600
* Pump Head:YZ1515x
* Speed range : 0.1-600 rpm（reversible）
* Flow range: 0.007-2280ml/min
* Max channels :16
* Remote control : optional
* Foot pedal : optional
Quantity:
Filling system
Main controller
Independent drive unit for easy mechanical matching
Large screen touch (7 inch / 10 inch) simple and intelligent
Independent key setting address /fine-tune flow
Manual touch screen /communication instruction, dual operation
Cascadable structure to 32 channels
Arbitrary control of each channel start /stop, forward / reverse
Online / offline flexible dual working mode
Arbitrar hannel simultaneousfilling or suck back
Support internal control /externalcontrol/communication control
Supports simultaneous suck back function of all channels (angle / delay)
Single channel No bottle No filling functiondrive
Support customer parameter scheme saving and retrievalmatching
Fine adjustment / calibration during filling processmatching
Provide scale adjustment / volume calibration function
Stable operation, strong anti-interference ability
Provide online filling volume adjustment function
Fault alarm to ensure safe production
Provide WiFi function (optional)
Stainless steel housing, sturdy, corrosion-resistant and easy to clean
RS485 bus communication interface, easy external control

About chuangrui Chemical Drug multi-channel Dispensing Peristaltic Pump  Techncial Parameters

Flow range
Max 6000ml/min
Speed range
0.1-600rpm
Filling Accuracy
<±2%
Display mode
7 inch / 10 inches - LCD screen + 4- LED display
Pump head optional
YZ1515x、YZ2515x、DG series 、TX315、KZ25
Outlet pressure
0.1-0.12MPa
Customer data Storage
20 groups
Motor
stepper motor
Calibration method
Scale adjustment, volume calibration
Pump Head
Tube Model
ID *OD (mm)
Speed ( rpm)
Flowrate ( ml/min)
YZ1515X
13#
0.8*4.0
600
42
14#
1.6*4.8
600
162
19#
2.4*5.6
600
306
16#
3.1*6.3
600
492
25#
4.8*8.0
600
1020
17#
6.4*9.6
600
1740
18#
7.9*11.2
600
2280
YZ2515X
15#
4.8*9.6
600
1020
24#
6.4*11.2
600
1740
KZ25
15#
4.8*9.6
600
1800
24#
6.4*11.2
600
3000
35#
7.9*12.7
600
4200
36#
9.6*14.4
600
6000
