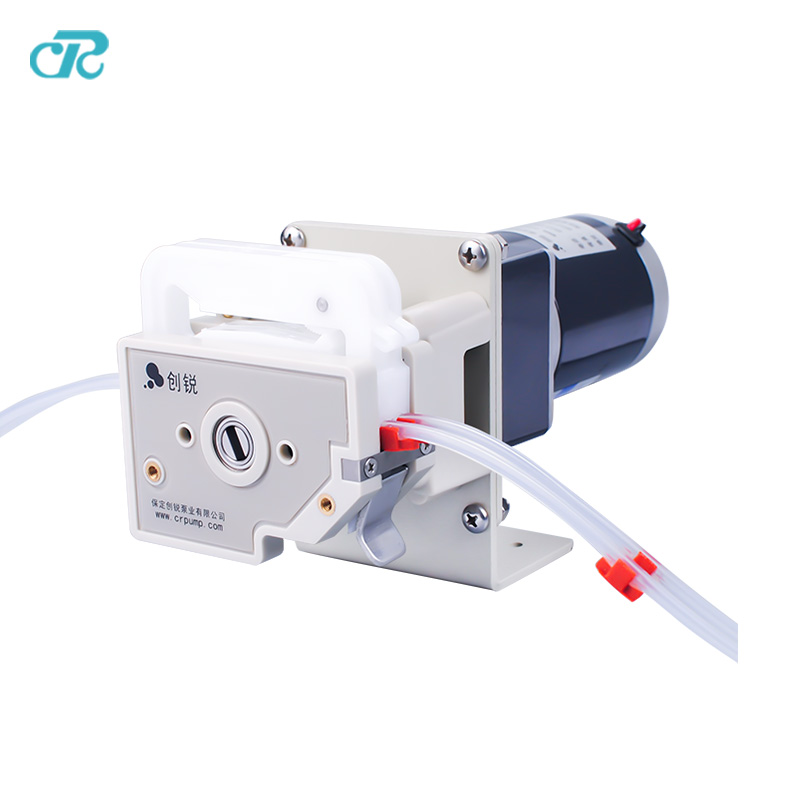

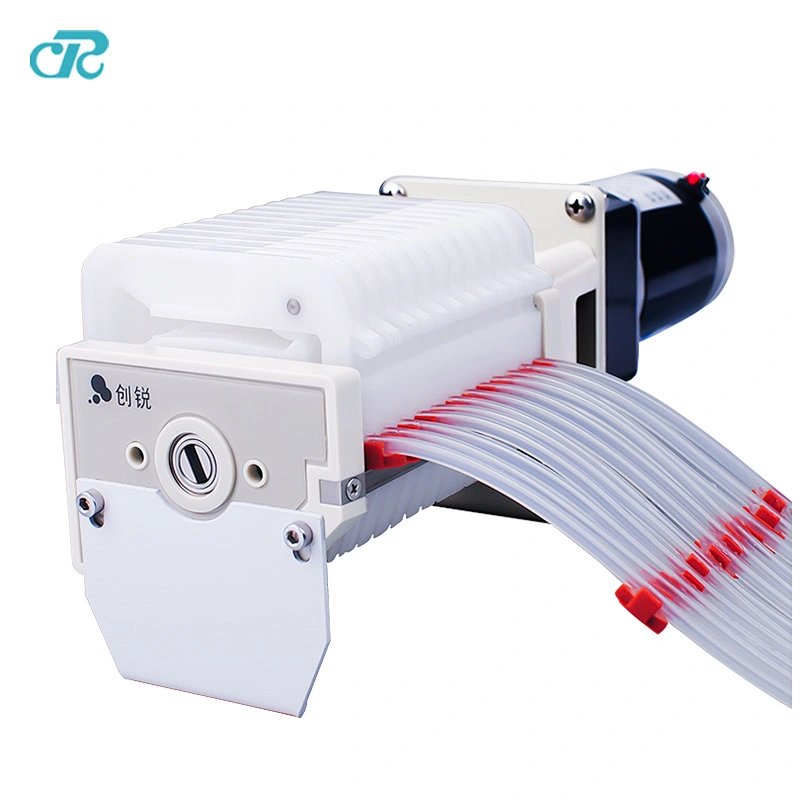

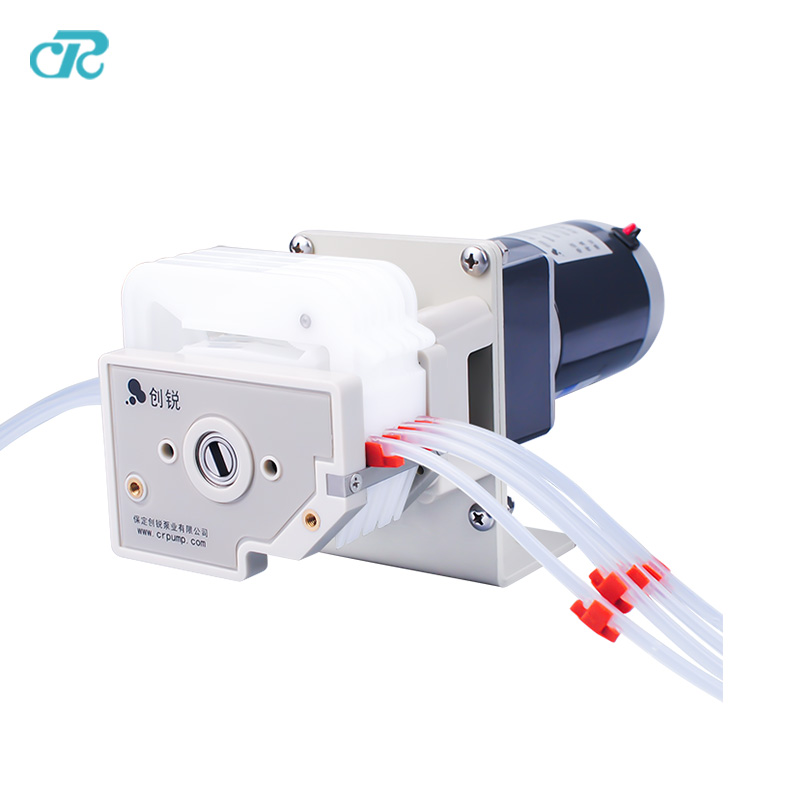

Multi-channel Small Liquid Transfer OEM Peristaltic Pump with DG Pump Head

Multi-channel Small Liquid Transfer OEM Peristaltic Pump with DG Pump Head

Model NO.: OEM212
Price:: US $ 150.00-300.00

Quantity:

Product Description

Quick Details

Warranty: 1 year, 1 Year

Customized support: OEM, ODM

Brand Name: CR

Model Number: oem 212

Place of Origin: Hebei, China

Application: Multi-channel Small Liquid Transfer, transfer liquid

Horsepower: None

Power Source: Electric

Pressure: Low Pressure

Structure: OEM peristaltic pump

Cable Length: none

Outlet Size: Max 3mm

Voltage: None

Power: None

Product name: Multi-channel Small Liquid Transfer OEM Peristaltic Pump

Model: OEM212

Pump head: DG series

Motor: DC Motor

Max Flow: 36ml/min/channel

Channel number: 1~24 optional

MOQ: 1 Piece

Usage: small liquid transfer

Certification: ce, ISO9001

Supply Ability

Supply Ability 3000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details 1. The package contains a peristaltic pump and its accessories. 2. Carton and foam packaging can protect the safety of the product during transportation.

Port tianjin,shanghai,guangzhou

Lead Time:

Quantity(Pieces)	1 - 5	>5
Est. Time(days)	7	To be negotiated

Product Description

This product can be installed by DG series pump heads, with a flowrate of Max 36ml/min.

Flow speeds can be adjusted either by hand through switching knobs, instead of the traditional way of membrane keypad, which reduces obviously the failure rate, or by automatic control through the external controller interface, with three available modes: 0-5V, 0-10V, and 4-20mA.

Memory function is also available in the product in case of power off. Besides, switching knobs are designed clearly so that it is easy to operate for customers.

Pump head	DG-1	DG-2	DG-4	DG-6	DG-8	DG-12
Channel no.	1	2	4	6	8	12
*Suitable tube(IDOD)**	0.52.1, 13, 24, 2.44, 3*5(mm)
6 Rollers flowrate	0.0015~36.5ml/min
10 Rollers flowrate	0.0015~27ml/min
Card material	POM
Roller material	304 Stainless steel

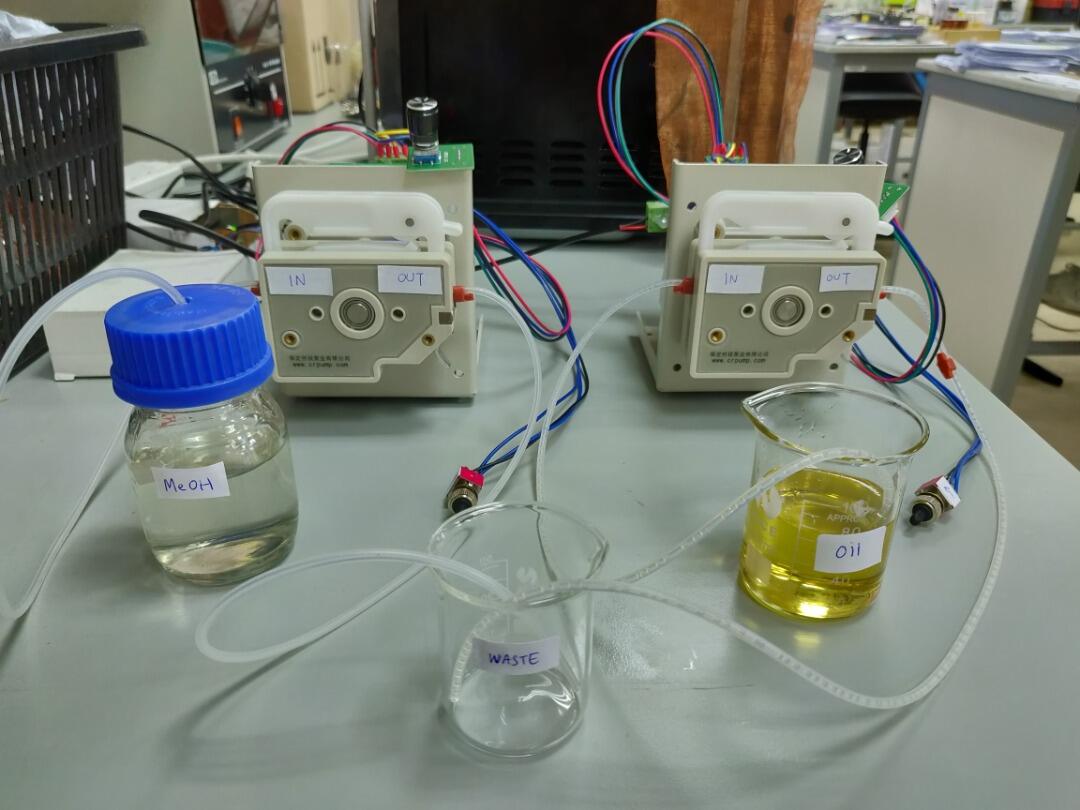

Application

Why choose us

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
