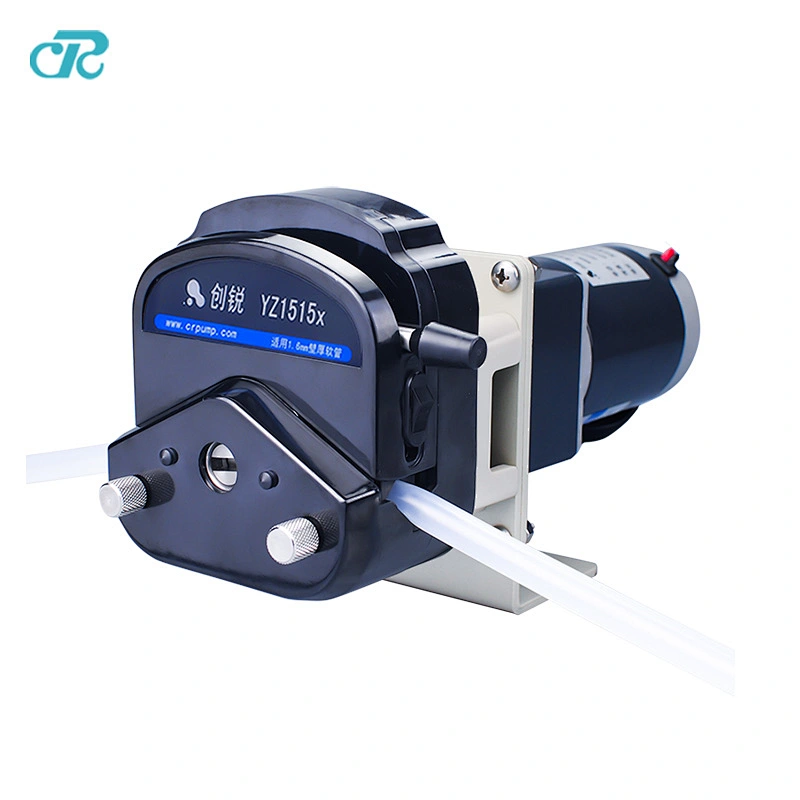

OEM Liquid Transfer Peristaltic Pump For Supporting Machine
The OEM 201 small peristaltic pump have superb features built-in and flexible design to meet specific customer needs.Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump powerful functions.
The Oem Peristaltic Pump suitable for wall thickness 1.6mm Silicon tube, Pharmed bpt etc. material tube, flow range up to 2280 ml/min. The shell of pump head is made of PPS material and the roller is made of 304 SSS material. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature . | Order list for the small peristaltic pump OEM201. Noted: 1.The defaulted model we will send is 20116A with DC24V motor and flow is 2280ml/min 2.Defaulted channel number is 1 ,If you need multiple pls contact us 3, The speed controller is not defaulted, if you need pls contact our sales. 4, The defaulted pump head material is pps (black) 5, Support multiple channels customized, more info ,pls contact us. | |
Order Number | Model | Pump head | Motor Voltage | Motor Power | Motor Speed | Tube model | Max Flow | Speed control | 20116A | OEM201-1 | YZ1515x(Black) | DC24V | 15W | 600rpm | 18# | 2280ml/min | NO | 20114A | OEM201-1 | YZ1515x(Black) | DC24V | 15W | 400rpm | 18# | 1520ml/min | NO | 20116B | OEM201-1 | YZ1515x(white) | DC24V | 15W | 600rpm | 18# | 2280ml/min | NO | 20114B | OEM201-1 | YZ1515x(white) | DC24V | 15W | 400rpm | 18# | 1520ml/min | NO | 20126A | OEM201-2 | YZ1515x(Black) | DC12V | 15W | 600rpm | 18# | 2280ml/min | NO | 20124A | OEM201-2 | YZ1515x(Black) | DC12V | 15W | 400rpm | 18# | 1520ml/min | NO | 20126B | OEM201-2 | YZ1515x(White) | DC12V | 15W | 600rpm | 18# | 2280ml/min | NO | 20124B | OEM201-2 | YZ1515x(White) | DC12V | 15W | 400rpm | 18# | 1520ml/min | NO |
| Tube specifications for the pump YZ1515x Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance. | Tube model | ID(mm) | OD(mm) | Standard material | Flow with 400 rpm(ml/min) | Flow with 600 rpm(ml/min) | 18# | 7.9 | 11.1 | Silicon tube | 1520 | 2280 | 17# | 6.4 | 9.6 | Silicon tube | 1160 | 1740 | 25# | 4.8 | 8 | Silicon tube | 680 | 1020 | 16# | 3.2 | 6.4 | Silicon tube | 328 | 492 | 19# | 2.4 | 5.6 | Silicon tube | 204 | 306 | 14# | 1.6 | 4.8 | Silicon tube | 108 | 162 | 13# | 0.8 | 4 | Silicon tube | 28 | 42 |
|
| | | | | | | | |
