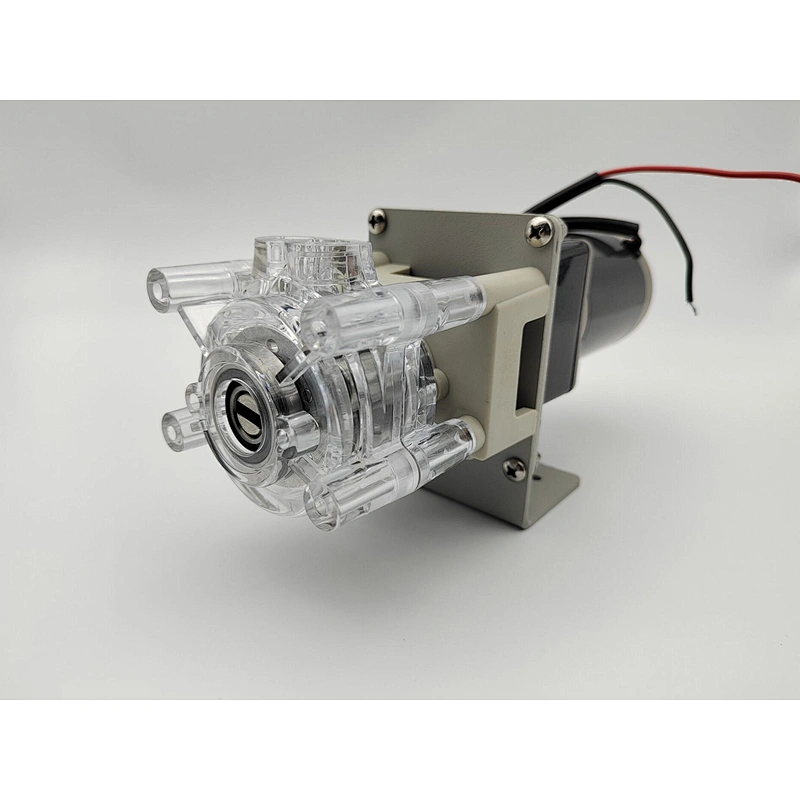

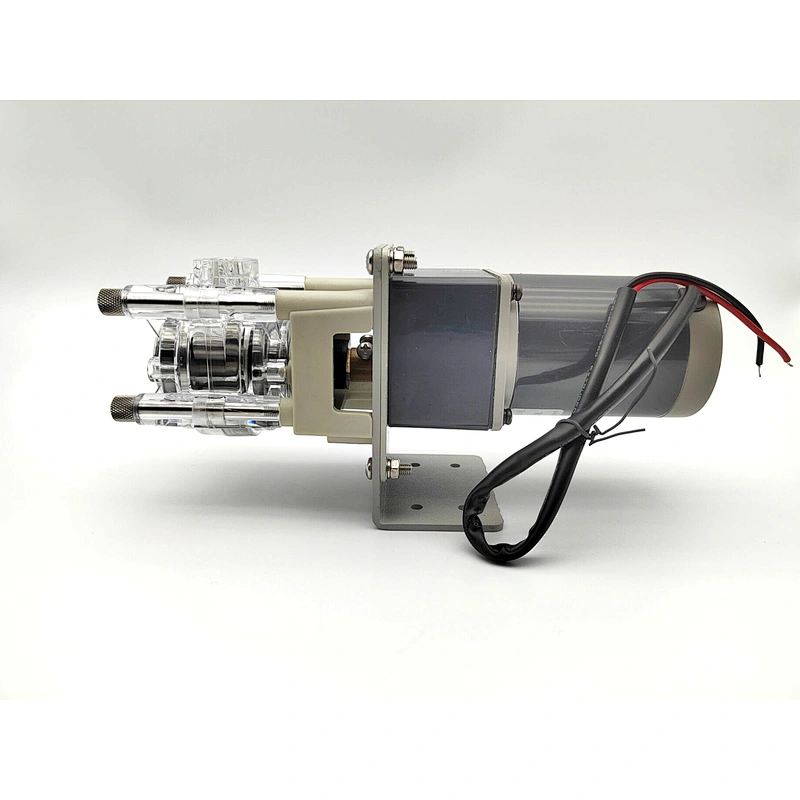

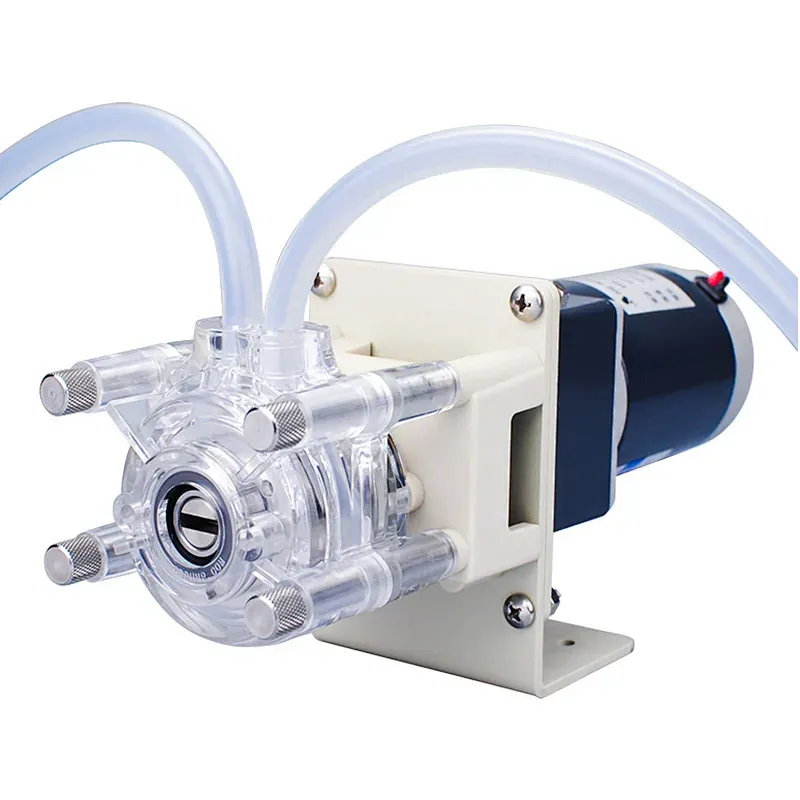

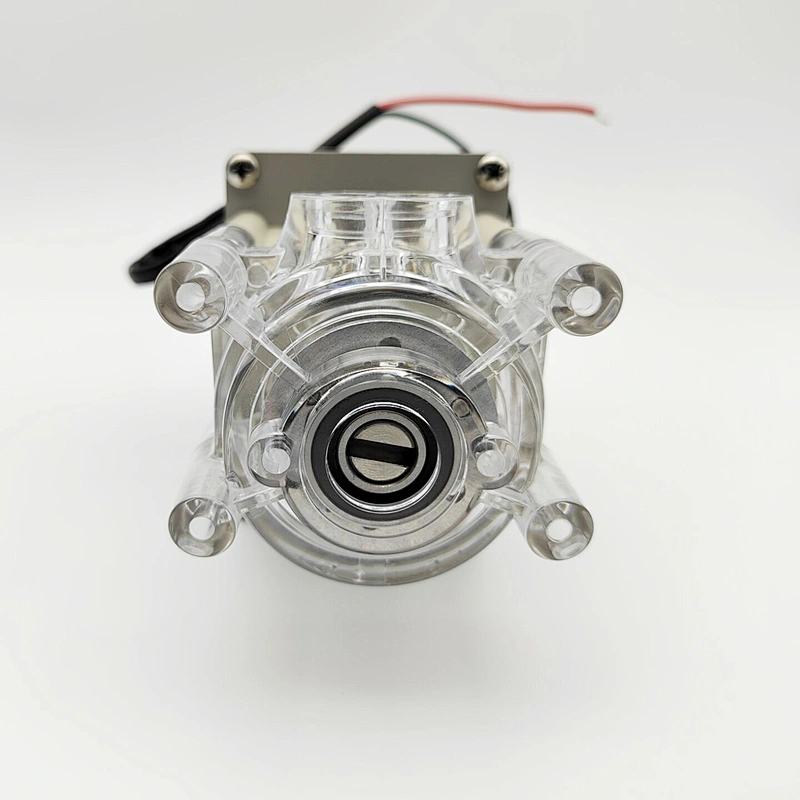

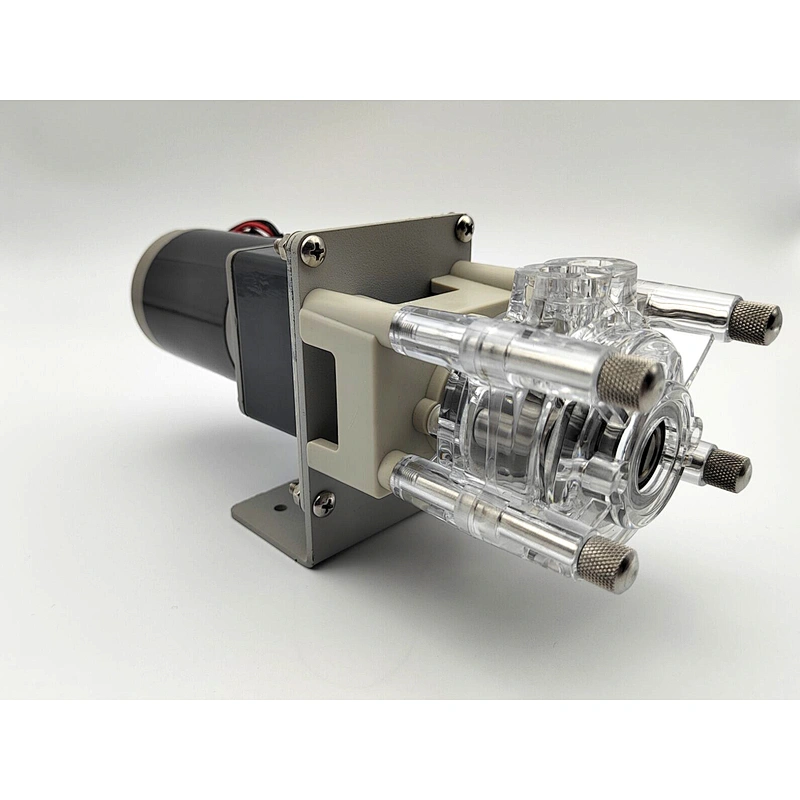

small DC 12v mini peristaltic pump for liquid transfer

Warranty:                              1 Year, 1 Year

Customized support:           OEM, ODM, OBM

Model Number:                     OEM204

Place of Origin:                     Hebei, China

Application:                          liquid transfer

Horsepower:                         Other

Power Source:                      Electric

Pressure:                              Low Pressure

Structure:                             Peristaltic Pump

Cable Length:                      other

Outlet Size:                          Max6.4mm

Voltage:                               DC 12V or DC 24V

Type:                                   OEM204

Pump head:                         ZN25

Flow range:                         Max 1740ml/min

Speed:                                400 OR 600 rpm

MOQ:                                   1 Set

Certification:                       RoHS, ce, ISO9001

Packaging & Delivery

Selling Units:                      Single item

Single package size:           28X18X16 cm

Single gross weight:           3.000 kg

Package Type:                    1. The package contains a peristaltic pump and its accessories.
                                             2. Carton and foam packaging can protect the safety of the product during transportation.
                                             3. If you have special packaging needs, please contact us in time.

Lead Time:

Quantity(Pieces)	1 - 4	>4
Est. Time(days)	10	To be negotiated

Product Description

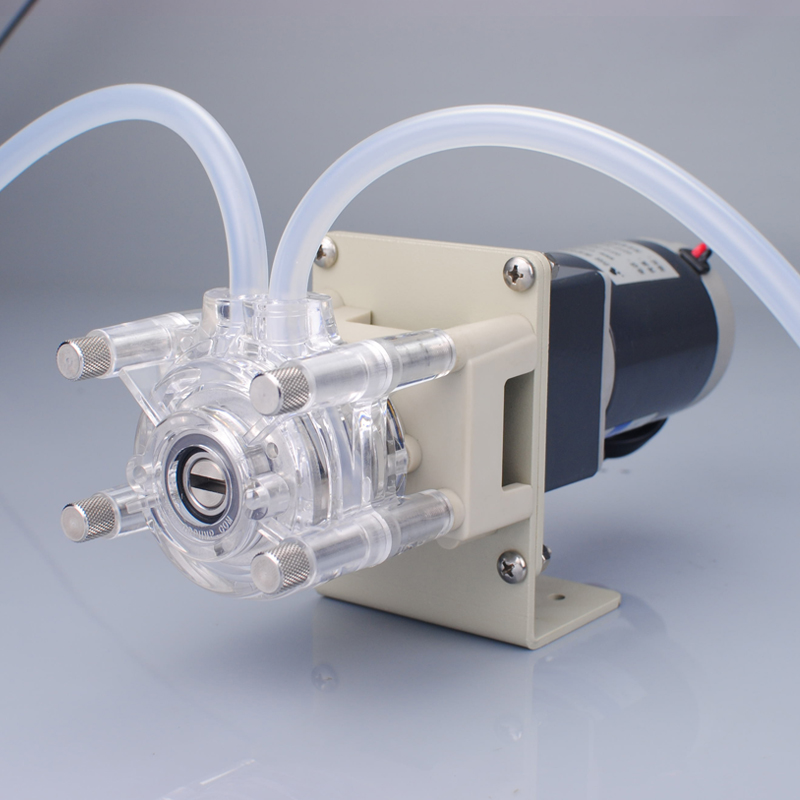

small DC 12v mini peristaltic pump for liquid transfer

*304SSS roller

*Transparency pump head,can check the liquid work status easily.

*With L bracket and installation screw holes ,easy to install.
*Support bracket customized,that means we can design and produce the suitable bracket to meet your installation requirement .
*The flow with silicon tube 24# can reach 1740 ml/min and the liquid based on water .
Noted: The thick liquid will cause the flow become slow



Technical Parameters

Order number	Model	Pump Head	Motor	Motor Speed  ( RPM)	Tube	Flowrate (ml/min)
20416A	OEM204-1	ZN25-24	DC24V	600	24#	1740
20414A	OEM204-1	ZN25-24	DC24V	400	24#	1160
20426A	OEM204-2	ZN25-24	DC12V	600	24#	1740
20424A	OEM204-2	ZN25-24	DC12V	400	24#	1160

Pump Head	Tube Model	Tube Size	Flow Rate in 600rpm
ZN25-24	24#	ID6.4 OD 11.2mm	1740ml/min

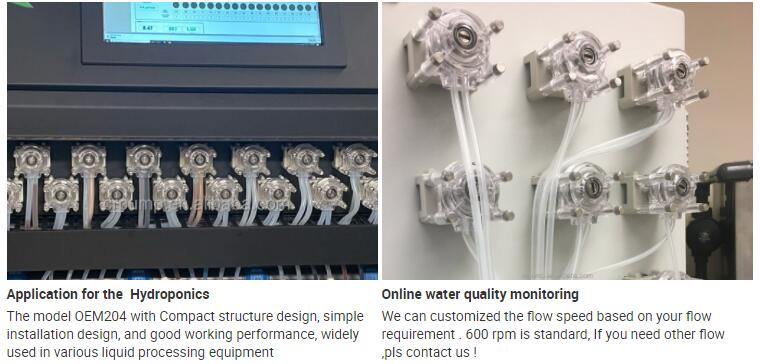

Applications

Chuangrui peristaltic pump is widely used in various fields

Commercial Dishwashing / Chemical Dispensing- Vending Machine / Post Mix Syrups- Beverage Dispensing / Dispense juice, chocolate, etc.- Refrigeration / Condensate Removal- Analytical / Fluid Transfer, Wastes- Commercial Exercise Eqpt. / Lubrication- Grease Trap Control / Timed Dispense of Enzymes- Fluid Sampling / Water Sampling, DC Powered- Water Conditioning / Chlorination/PH control

Why Choose Us

Baoding Chuang Rui  Precision Pump Co., Ltd. Started production  of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
