This pump can work with AC220V synchronous motor
1.The TH15 pumps have superb features built-in and flexible design to meet specific customer needs.
2.Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump a good performance.
Application:
Environmental Protection Equipment,Discharge of flue gas analyzer,Delivery liquid into the fermentation tank
Quick Details
Supply Ability
Packaging & Delivery
- Warranty: 1 year
- Customized support: OEM, ODM, OBM
- Brand Name: Chuangrui
- Model Number: OEM205/TH15
- Place of Origin: Hebei, China
- Application: Automotive Industry, Food and Beverage Industry, Machining,
Pharmaceutical industry, Wastewater Transport and Flood Control,
Water Distribution, transfer liquid
- Horsepower: None
- Power Source: Electric
- Pressure: Low Pressure
- Structure: Peristaltic Pump
- Cable Length: none
- Outlet Size: Max 4.8mm
- Voltage: AC220V
- Power: LOW
- Model: OEM205
- Pump head: TH15
- Motor: Synchronous motor
- Max speed: 100rpm,
- Max flowrate: 290ml/min
- MOQ: 1 Set
- Certification: ce
Supply Ability
- Supply Ability 10000 Set/Sets per Year
Packaging & Delivery
- Packaging Details 1. The peristaltic pump is carton with plastic foam.
2. The peristaltic pump can also be packed strictly according to the customer's requirements.
- Port Tianjin, Beijing, Guangzhou, Shanghai, etc.
- Lead Time:
Quantity(Sets) 1 - 3 >3 Est. Time(days) 7 To be negotiated
- Product Description

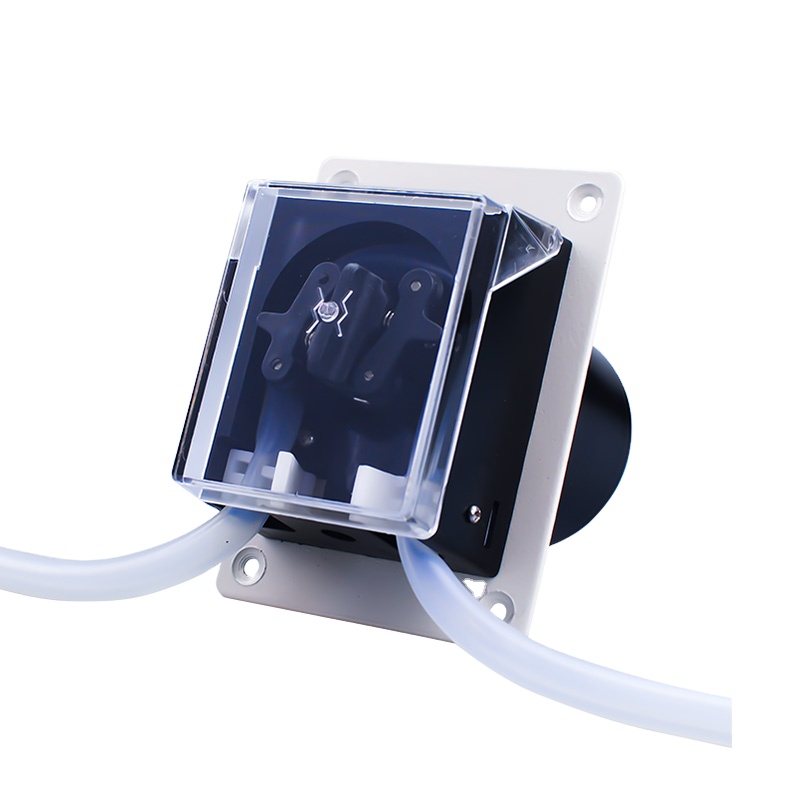

TH15 Micro liquid transfer Peristaltic Pump
Functions and features
*A special part links the roller box with the motor shaft to ensures stable
*Snaps into the tube, not slippery silk, more fixture
*Crust use streamlined design, With card bit, easily snaps into the pump
. Easy to change and fix the tubing. Occlusion can be adjusted slightly by ratchet wheel.
* Small size, compact and robust design
* Trouble-free continuous tube loading in seconds
* Reliable performance without any operator adjustments
* Safe and closed with visible rotor movement
* Spring-loaded operation for good pressure control
* 2 roller pump head, low pulsation
* Smooth, cog-free operation
Noted:Run clockwise can get large flow,and operation counterclockwise can get biger outlet pressure.
Load import tube or harder tube,please counterclockwise operation to increase the pressure tube torque.
Order guideTypical Application1.Pumps for flue gas analysis

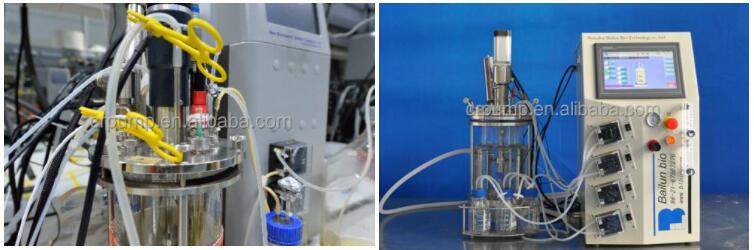

2., pumps for fermentation tanks
Why Choose Us
Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
