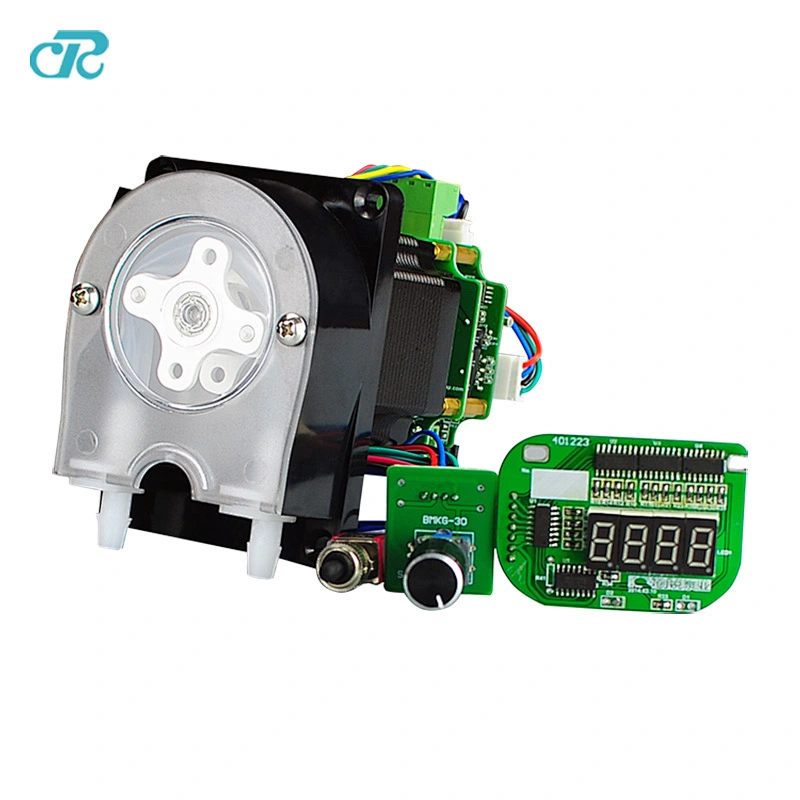

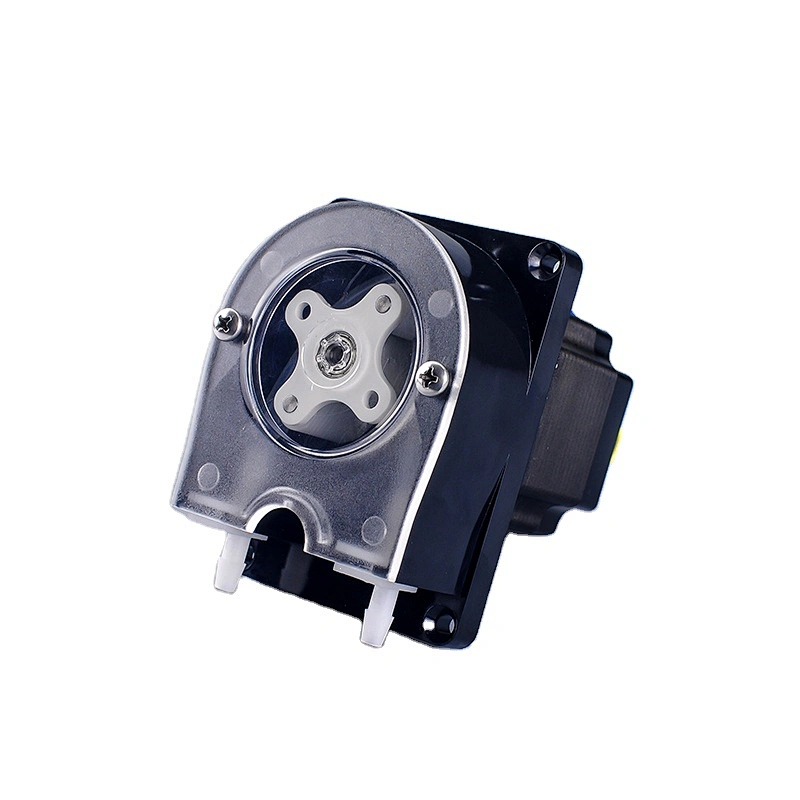

Stepper Motor Laundry Dosing Pump Peristaltic Pump

Stepper Motor Laundry Dosing Pump Peristaltic Pump

Model NO.: UCP306
Price:: US $ 90.00-180.00

Type:Peristaltic Pump
Maximum Head:5--10m
Maximum Flow Rate:1000ml/min

Quantity:

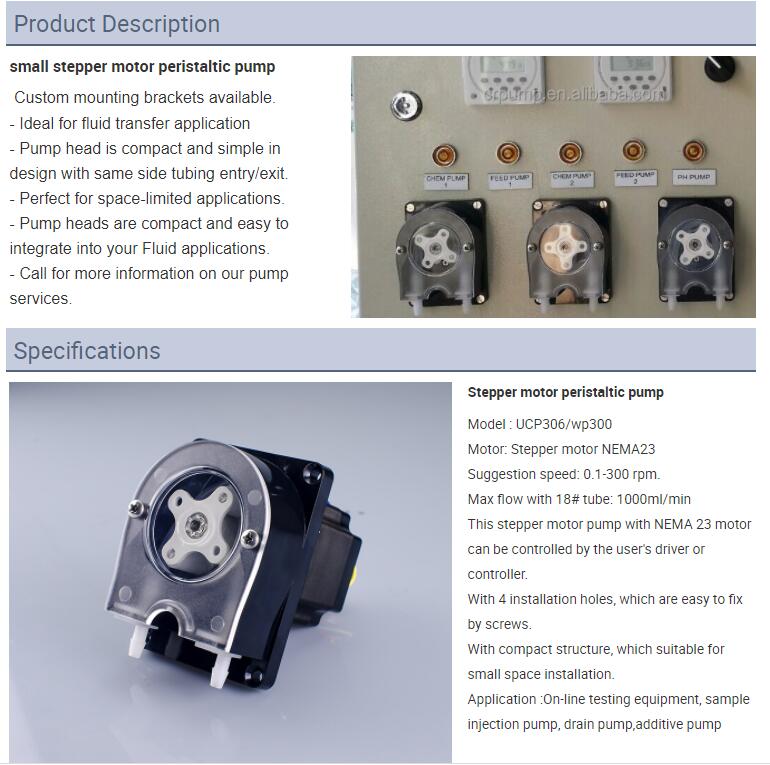

Product Description

Quick Details

Warranty: 1 year

Customized support: OEM, ODM, OBM

Brand Name: ChuangRui

Model Number: UCP306/WP300

Place of Origin: Hebei, China

Application: Laundry Dosing Pump, stepper motor peristaltic pump for liquid

Horsepower: None

Power Source: Electric

Pressure: Low Pressure

Structure: stepper motor peristaltic pump

Cable Length: none

Outlet Size: Max 7.9mm

Voltage: DC12V or DC24V

Pump model: UCP306

Pump head: WP300

Pump head material: PC

Roller: 3

Max speed: 300

Flowrate: 0~1000ml/min

Usage: Laundry dosing transfer

Certification: ce, ISO9001

Supply Ability

Supply Ability 3000 Set/Sets per Month

Packaging & Delivery

Packaging Details 1. The stepper motor peristaltic pump is carton with plastic foam. 2. The peristaltic pump can also be packed strictly according to the customer's requirements.

Port Tianjin,beijing,qingdao,guangzhou

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	7	To be negotiated

For the stepper motor , we have several different control driver .If you want more details ,pls contact our sales.

Order Model	Drive Model	Motor	Product configuration	Control Method	Max Speed
UCP306A	CRSCS42	NEMA23	NO	User control	300rpm
UCP306B	CRSCLNZFJ	NEMA23	CR driver+Control Swtich	User control	300rpm
UCP306C	CRSCLNZM	NEMA23	CR driver+Control Swtich	Switch Control	300rpm
UCP306D	CRSCLNZ5V	NEMA23	CR driver+Control Swtich+0-5V control Cable	0-5V /start stop/direction	300rpm
UCP306E	CRSCLNZ10V	NEMA23	CR driver+Control Swtich+0-10Vcontrol Cable	0-10V /start stop/direction	300rpm
UCP306F	CRSCLNZ20A	NEMA23	CR driver+Control Swtich+4-20mA control Cable	4-20mA /start stop/direction	300rpm
UCP306G	CRSCLNZ10K	NEMA23	CR driver+Control Swtich+0-10KHz control Cable	0-10Khz /start stop/direction	300rpm
UCP306H	CRSCLNZRS	NEMA23	CR driver+Control Swtich+RS485 control Cable	RS485 Communication protocol	300rpm

Tube model	ID(mm)	OD(mm)	Max speed (rpm)	Max flow(ml/min)
14#	1.6	4.8	300	50
25#	4.8	8	300	500
17#	6.4	9.6	300	750
18#	7.9	11.1	300	1000

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
WHY CHOOSE US

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
