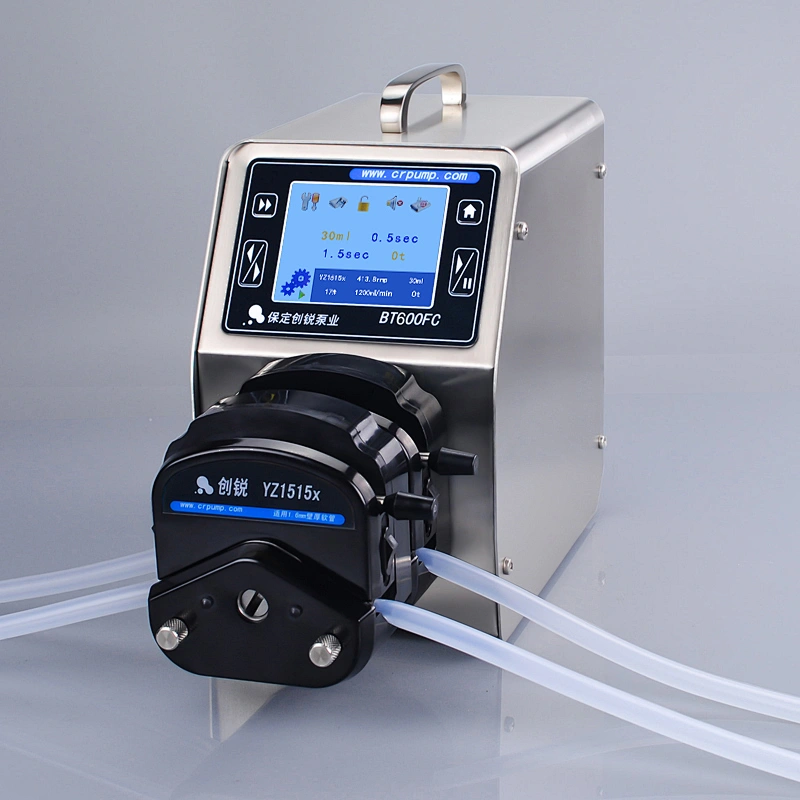

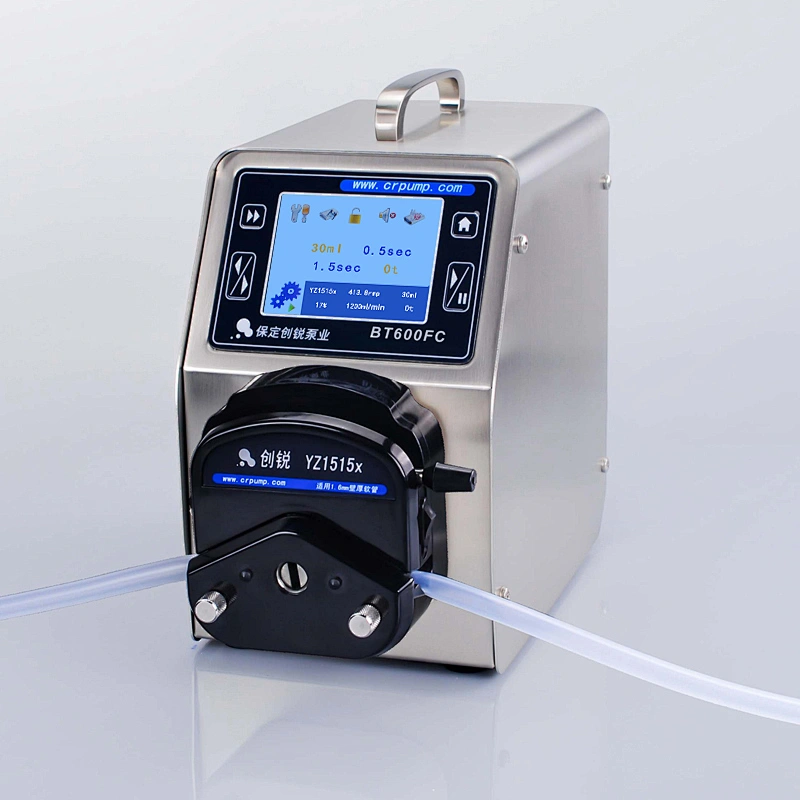

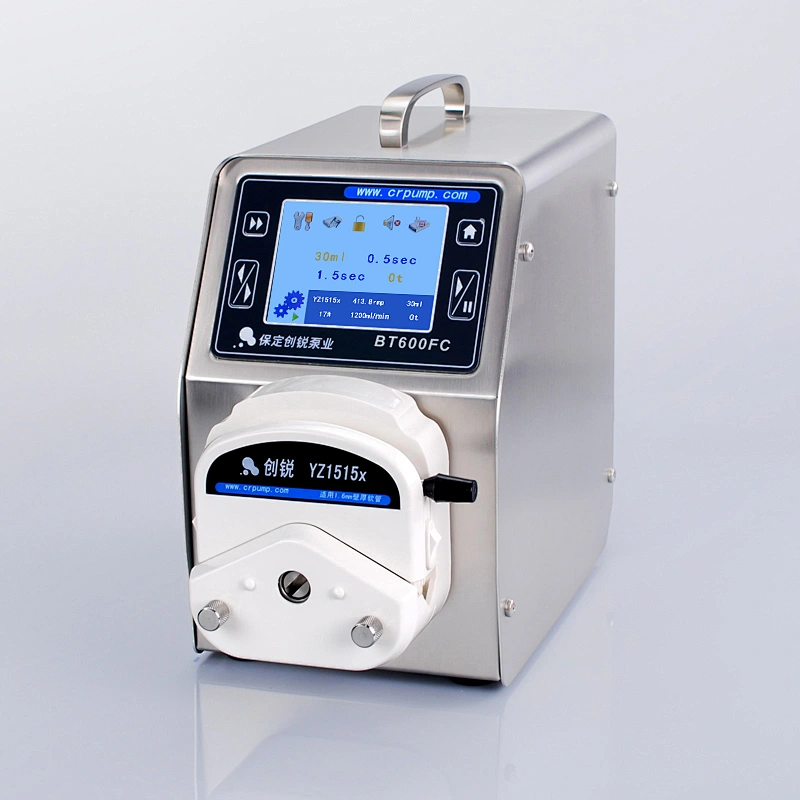

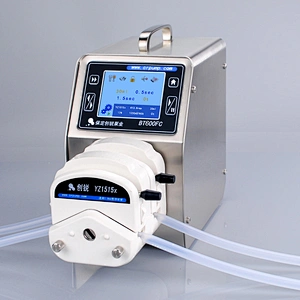

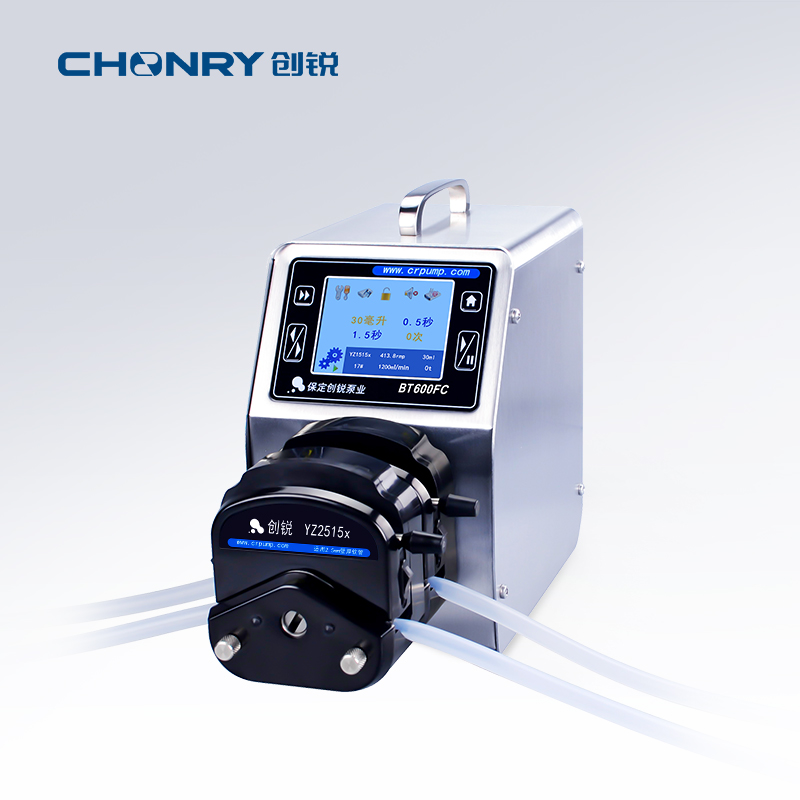

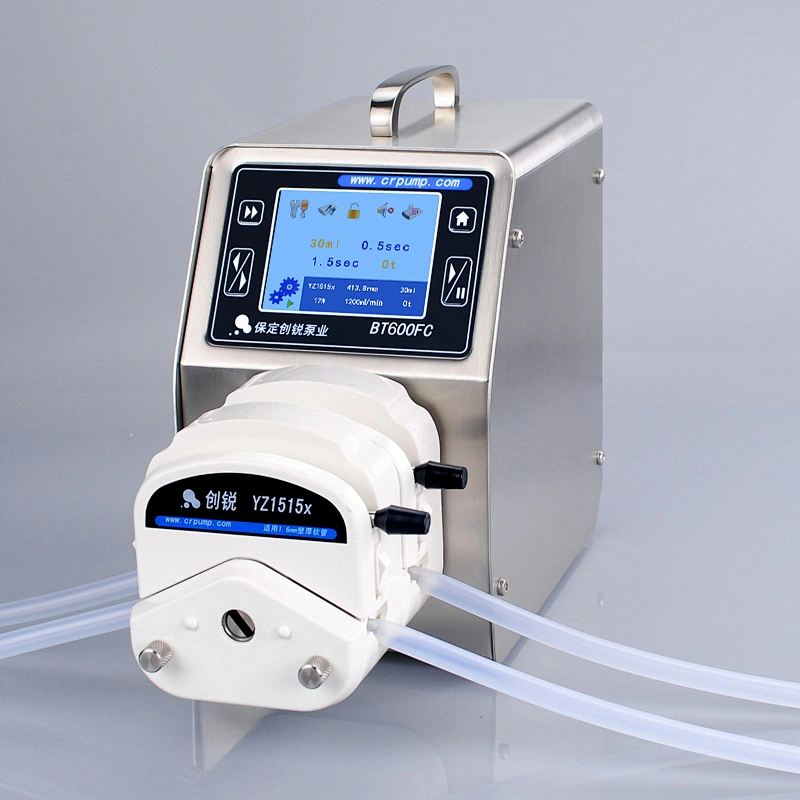

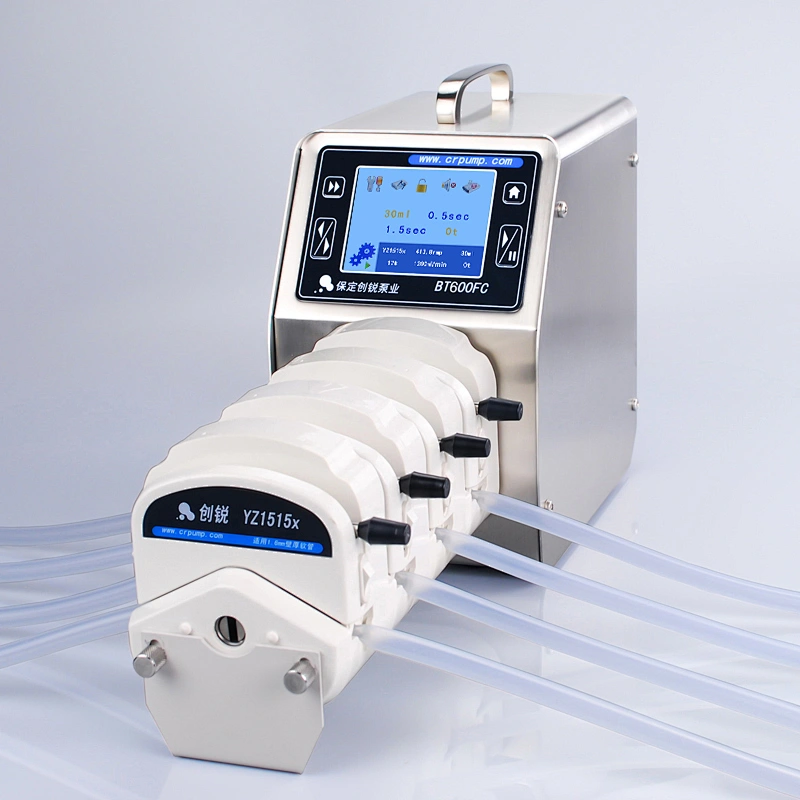

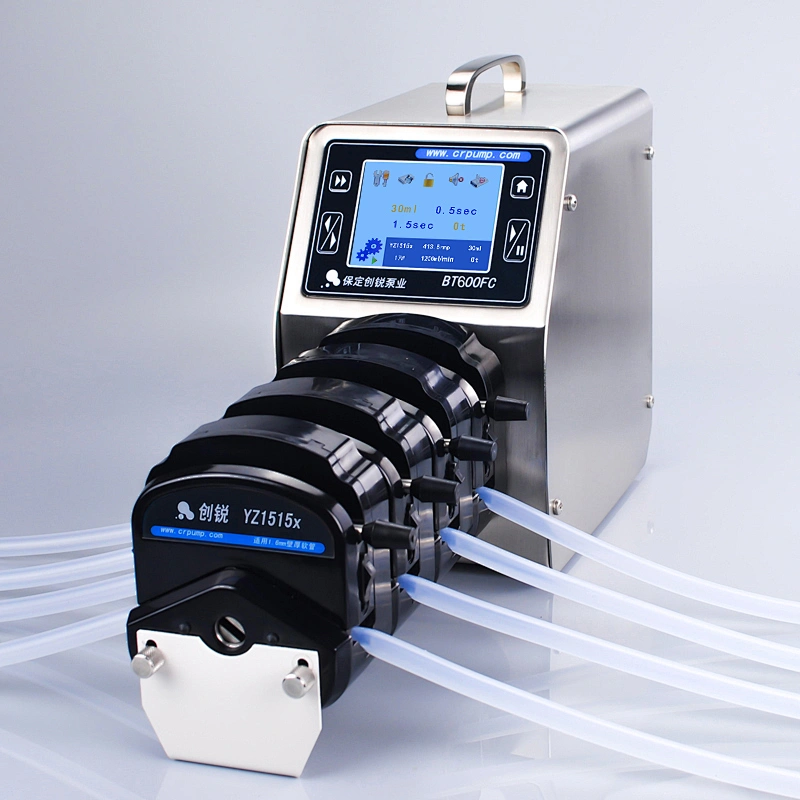

Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min
Touchscreen Filling Pump Flow Rate 0-2280ml/min

Touchscreen Filling Pump Flow Rate 0-2280ml/min

Model NO.
BT600FC/YZ1515x
* Drive Model: BT600FC
* Pump Head :YZ1515x,YZ2515x, ZN series
* Speed range : 0.1-600 rpm（reversible）

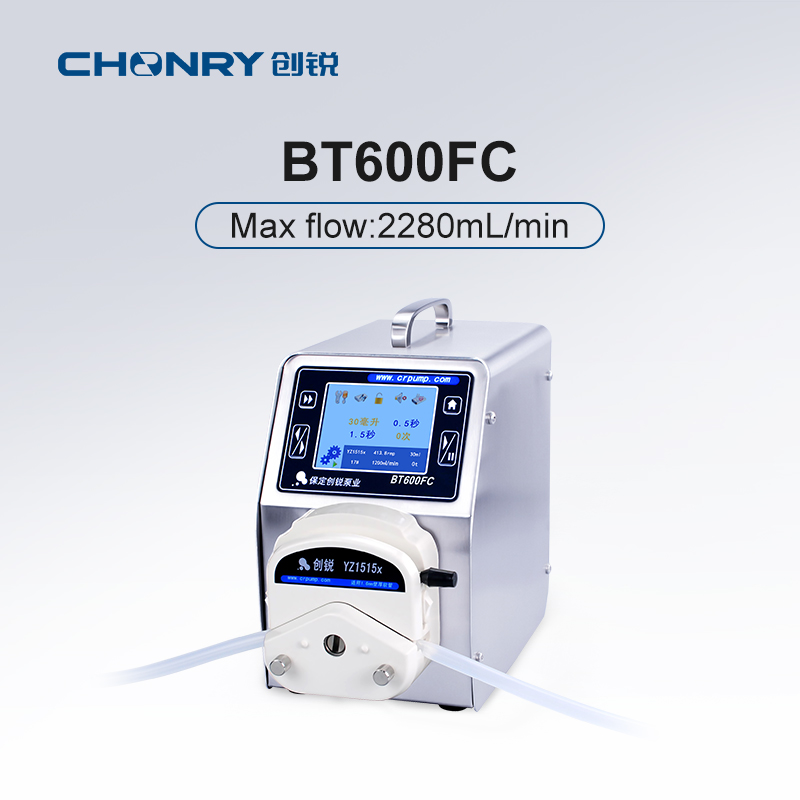

* Flow range : 0.007~2280ml/min
* Max channels :2
* Remote control : optional
* Foot pedal : optional
Quantity:

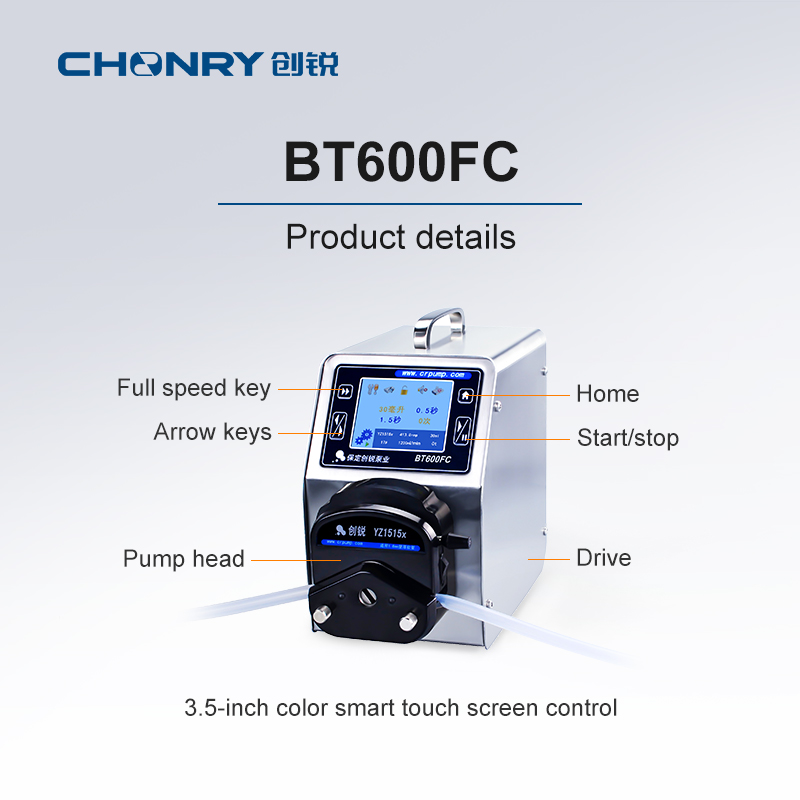

ModelBT600FCDisplay ModeLCD screen
Speed Range0.1-600 rpmControl MethodTouch screen + keypad
speed resolution0.1 rpmEnvironment Temperature0-40℃
Max Flow0.007-2280 ml/minRelatively Humidity<80%
Filling Accuracy<±0.5%Power consumption<50w
Filling volume range0.01-9999mlPower supplyAC220V or  AC110V
Filling time range0.1s-9999minMotor TypeStepper motor
Pause Time range0.1s~9999minExternal control
copy number range0~9999tStart & stop, direction control, speed control( Analog control :0-5v, 0-10v, 4-20mA optionl )RS232 and RS485 Communication interface, support MODUBUS Communication Protocol
Suckback angle10°~720° (1° Stepping)

Tube For pump head MODEL ; YZ1515x
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate ml/min
13#
0.8
1.6
4
0.007-42
14#
1.6
1.6
4.8
0.027-162
19#
2.4
1.6
5.6
0.051-306
16#
3.1
1.6
6.3
0.082-82492
25#
4.8
1.6
8
0.17-1020
17#
6.4
1.6
9.6
0.29-1740
18#
7.9
1.6
11.1
0.38-2280
