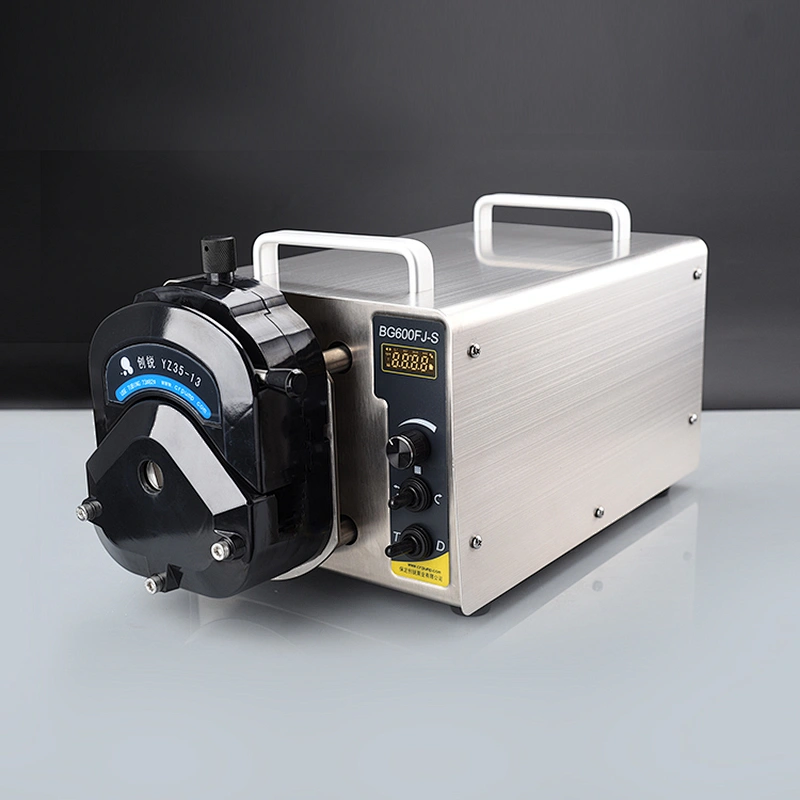

wastewater treatment pump Industrial Membrane bioreactor peristaltic pump

Warranty:                                       1 year, 1 Year

Customized support:                     OEM, ODM

Brand Name:                                  CR

Model Number:                             BG600FJ-S/YZ35-13

Place of Origin:                              China

Application:                                   Automotive Industry, Food and Beverage Industry,
                                                        Mining industry, Pharmaceutical industry, Washing and Cleaning,
                                                        Wastewater Transport and Flood Control, wastewater treatment,
                                                        Water Treatment Solutions, Industrial peristaltic pump

Horsepower:                                 None

Power Source:                               Electric

Pressure:                                       Low Pressure

Structure:                                      peristaltic pump

Cable Length:                                none

Outlet Size:                                   Max 13mm

Voltage:                                         AC 110V or AC 220V

Power:                                          <500W

Model:                                          BG600FJ-S/YZ35-13

Speed range:                                0.1-600 rpm

speed resolution:                         0.1 rpm

Flow range:                                  1.3-12000 ml/min

Display:                                         4-LED

Operating:                                    Knob

MOQ:                                            1 Set

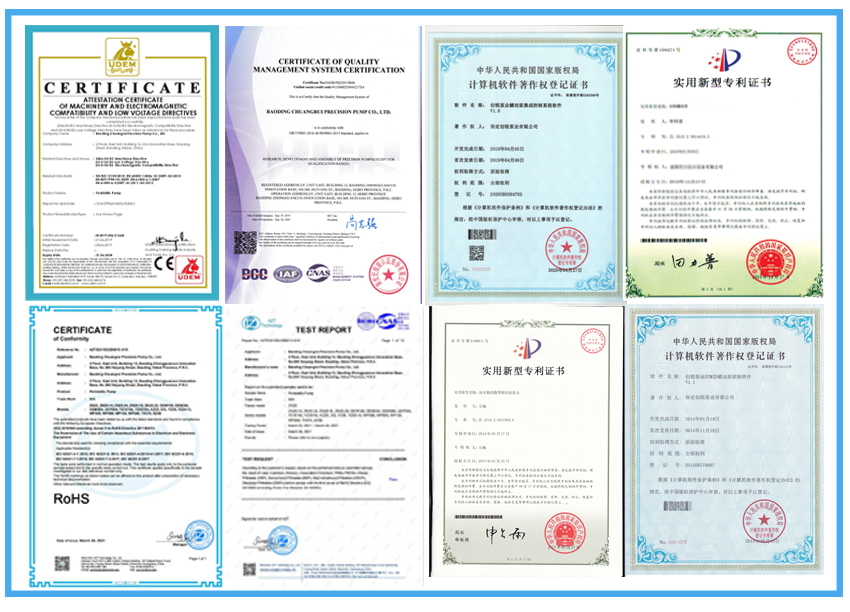

Certification:                                 ce

Packaging & Delivery

Selling Units:                               Single item

Single package size:                   62X37X37 cm

Single gross weight:                   18.000 kg

Package Type:After the pump body is wrapped in a plastic bag, the pump is packed
in a custom special hard foam and placed in a carton that meets the export standards.
After the other accessories have been properly placed, they are packed with tape, and
the plastic film is wrapped around the whole box to prevent water ingress.

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	5	To be negotiated



Industrial peristaltic pump

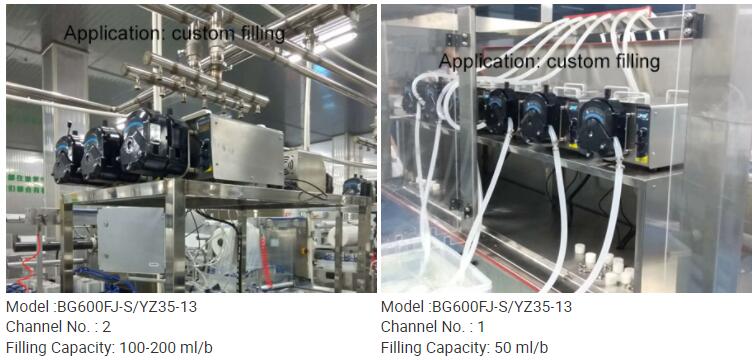

Industrial polishing liquid transfer peristaltic pump BG600FJ-S/YZ35-13 with flow range 1.3-12000 ml/min. which can work with 2 tube sizes (73# 82 # ) to meet different flow requests. 2 work modes suitable for various Liquid Transfer or Filling. The Pump can easily adjust the speed by the knob and you can see the speed that showed on the 4-led. Direction can be changed based on your different work status. When you want to work with the fast speed of the pump you only need to push the speed knob continually, then it will work at full speed. Your ideal choice for liquid handling. Suitable for various industrial applications.

Model	BG600FJ-S/YZ35-13
Channel	1 (standard)   or 2 (optional)
Max Flow	12 L/min
External control	RS485/ 0-5V/0-10V/4-20mA /Startstop Optional

Drive model ：BG600FJ-S	Pump Head Model: YZ35-13
Speed range: 0.1~600rpm（reversible）	speed resolution : 0.1rpm
Flow range : 1.3-12000ml/min	Suck back speed : 10~300rpm
Display Mode: 4-LED display	Control Method : Knob+Switch
Power supply: AC220V/AC110V Optional	Work Temperature: 0~40℃
Function : Transfer or Filling	IP grade : IP31
External control Support RS485/MODBUS communication protocol/ analog quantity control (0-5V / 0-10V / 4-20mA ...), Start/stop Optional.

Tube Model	ID  (mm)	Wall Thickness (mm)	Max Flow  (ml/min)
73#	9.6	3.3	7400
82#	13	3.3	12000
The above data is for reference only.

Kindly reminder:

All the data in the Below chart is based on the water.

If your liquid is viscous or corrosive, then this selection guide is not suitable for you.

Contact us, we will help you with better selection.













Baoding Chuang Rui  Precision Pump Co., Ltd. Started production  of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
