- Model:UCP313/WP120-15
- Speed:Max 150 rpm
- Flow Rate:Max 115 ml/min
- Channel:1
- Motor:Stepper Motor
- Applicable pump tube:13# 14# 19# 16# 25#
- MOQ:1 Set
- Warranty:1 Year
- Customized support:OEM
- Customized support:ODM
- Application:Food and Beverage Industry
- Application:Pharmaceutical industry
- Application:Washing and Cleaning
- Application:Wastewater Transport and Flood Control
- Application:wastewater treatment
- Application:Water Treatment Solutions
- Power Source:Electric
- Structure:Peristaltic Pump

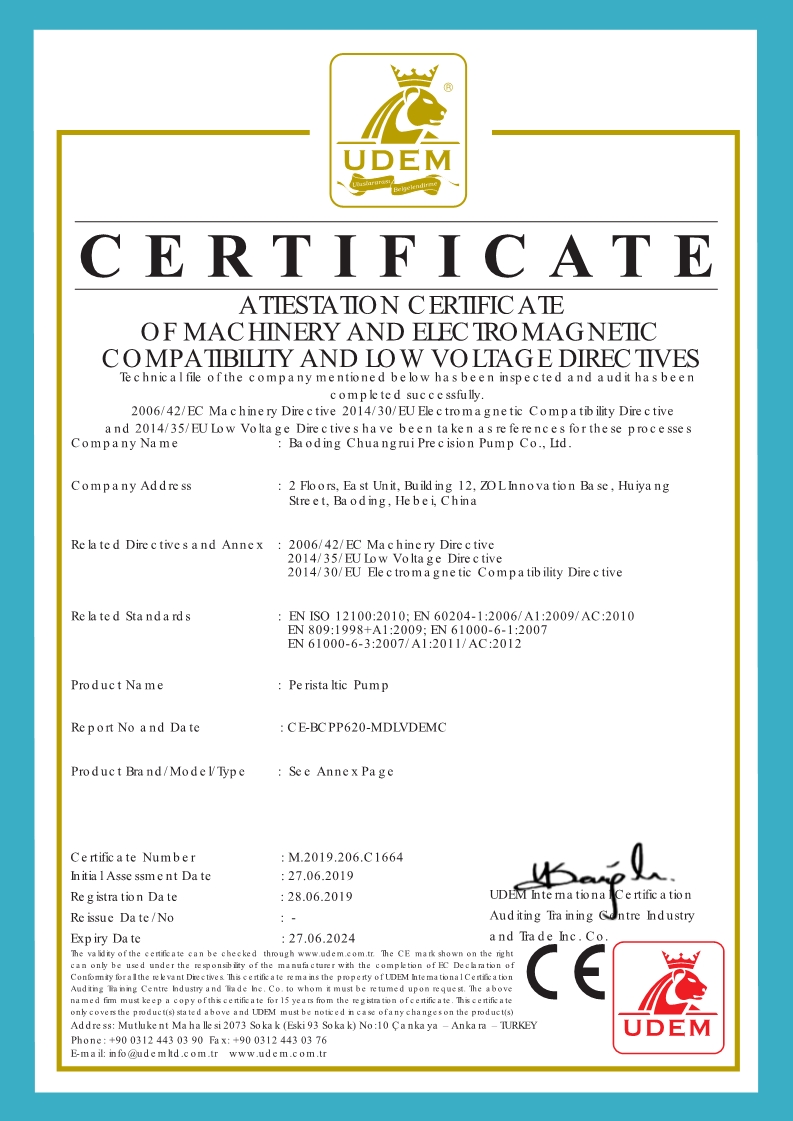

- Certification:ce
- Place of Origin:CN
- Warranty:1Year
- Brand Name:Chuangrui
- Model Number:UCP3131
- Horsepower:Other
- Pressure:Low Pressure
- Cable Length:other
- Outlet Size:Max 3mm
- Voltage:other
Product Description

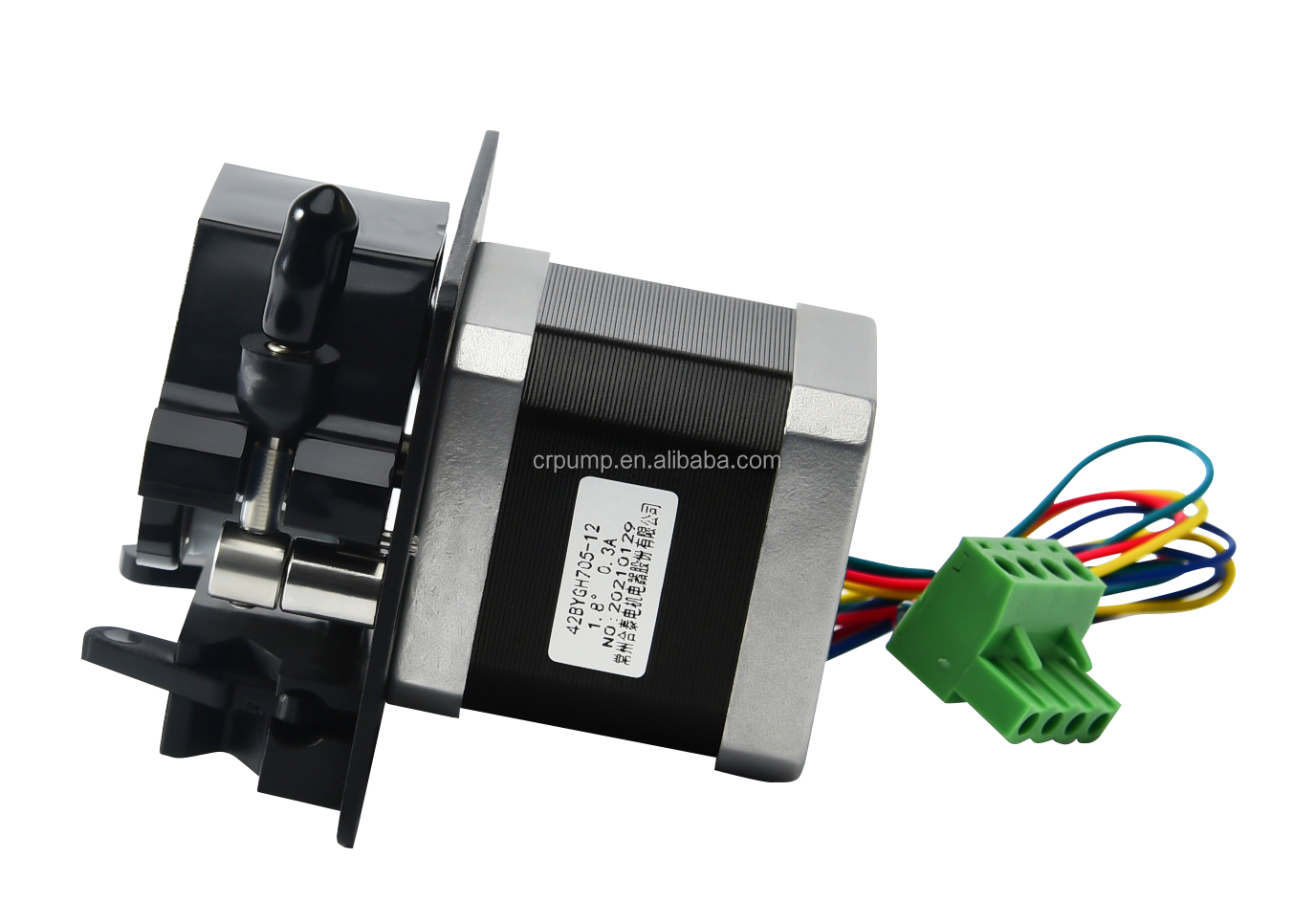

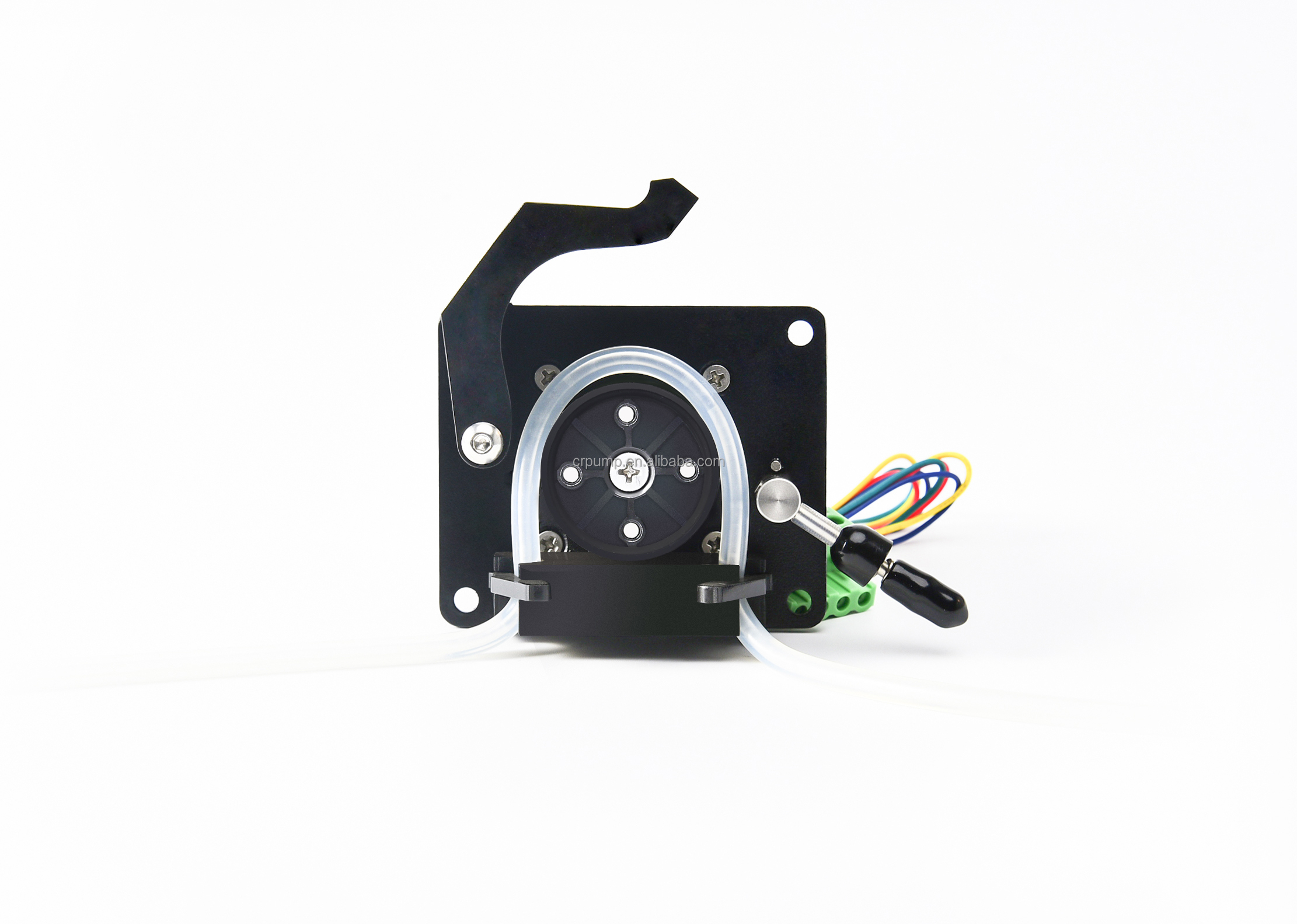

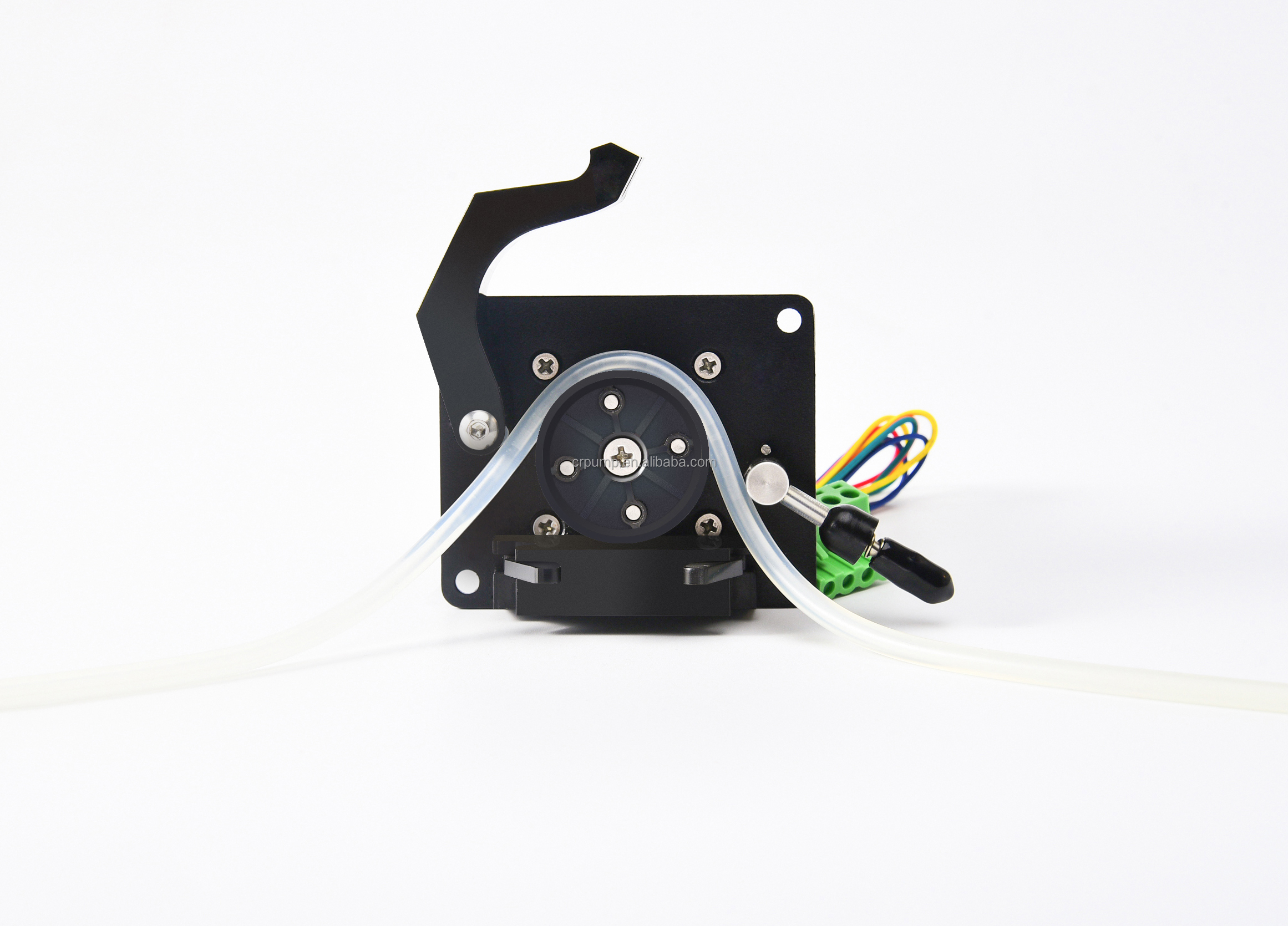

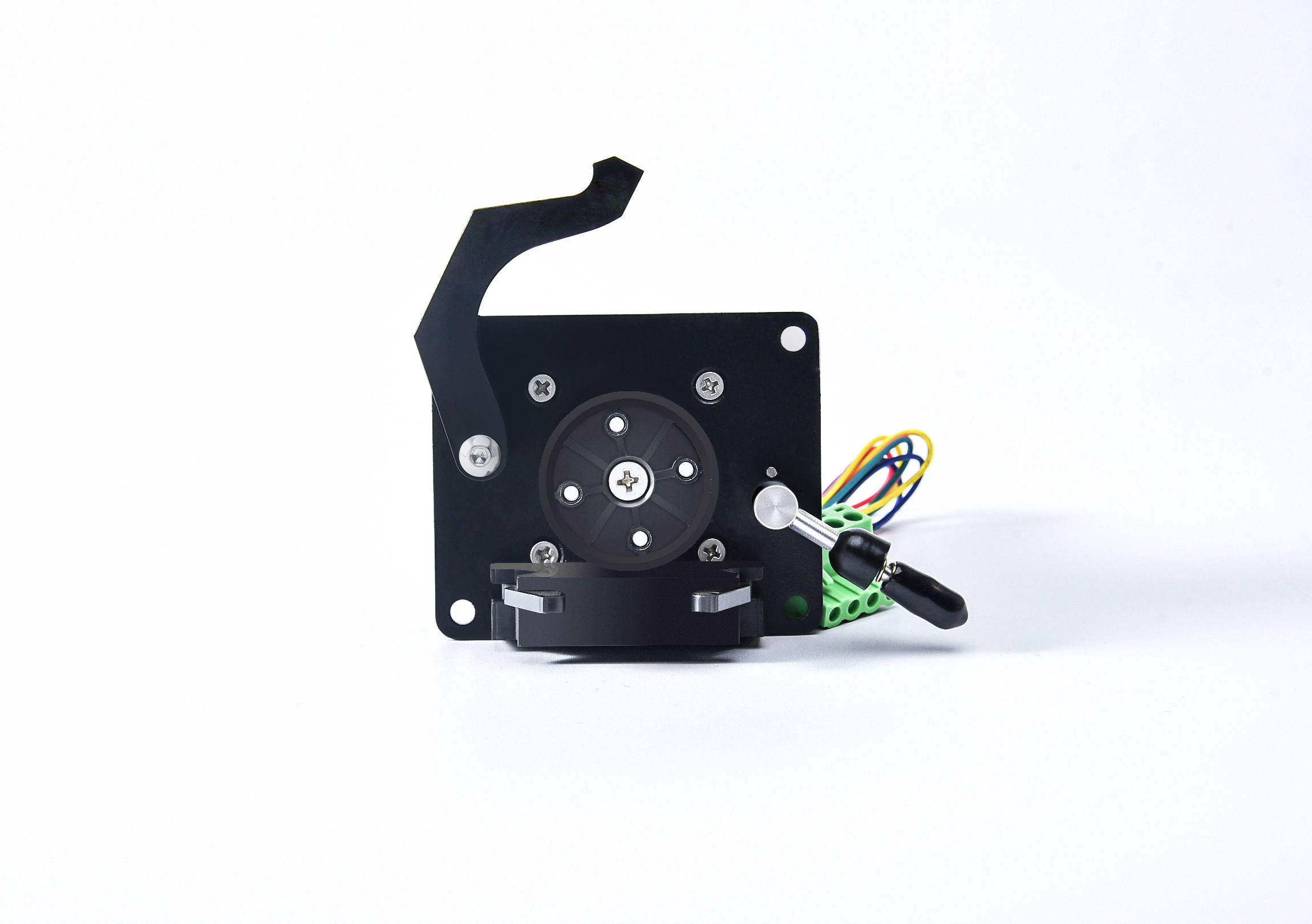

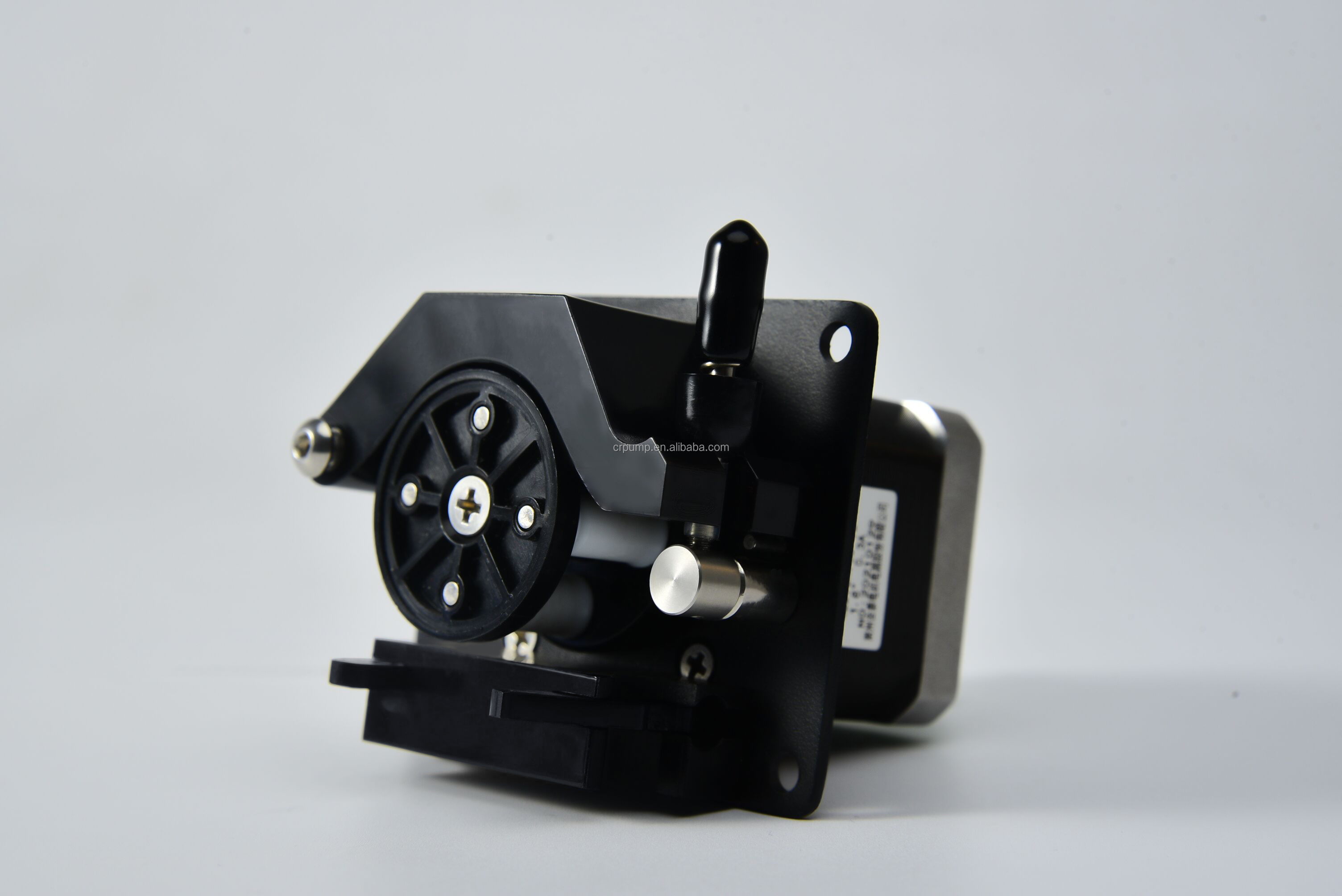

Small Peristaltic pump
The small peristaltic pump adopts a 4-rotor roller structure, low pulsation, high precision, and single-channel and dual-channel options, suitable for various analytical instruments, monitoring instruments and other equipment The pump head is changed to adopt elastic pressure tube, pressure is self-adaptive, and the service life of the hose is improved. Snap-in tube installation type for , eliminating the trouble of installing pipe clamps or joints, and easily remove the hose
The pump head is changed to adopt elastic pressure tube, pressure is self-adaptive, and the service life of the hose is improved. Snap-in pressure pipe, eliminating the trouble of installing pipe clamps or joints, and easily remove the hose.It can work with 4 different size tube which meet flow range 0-53 ml/min

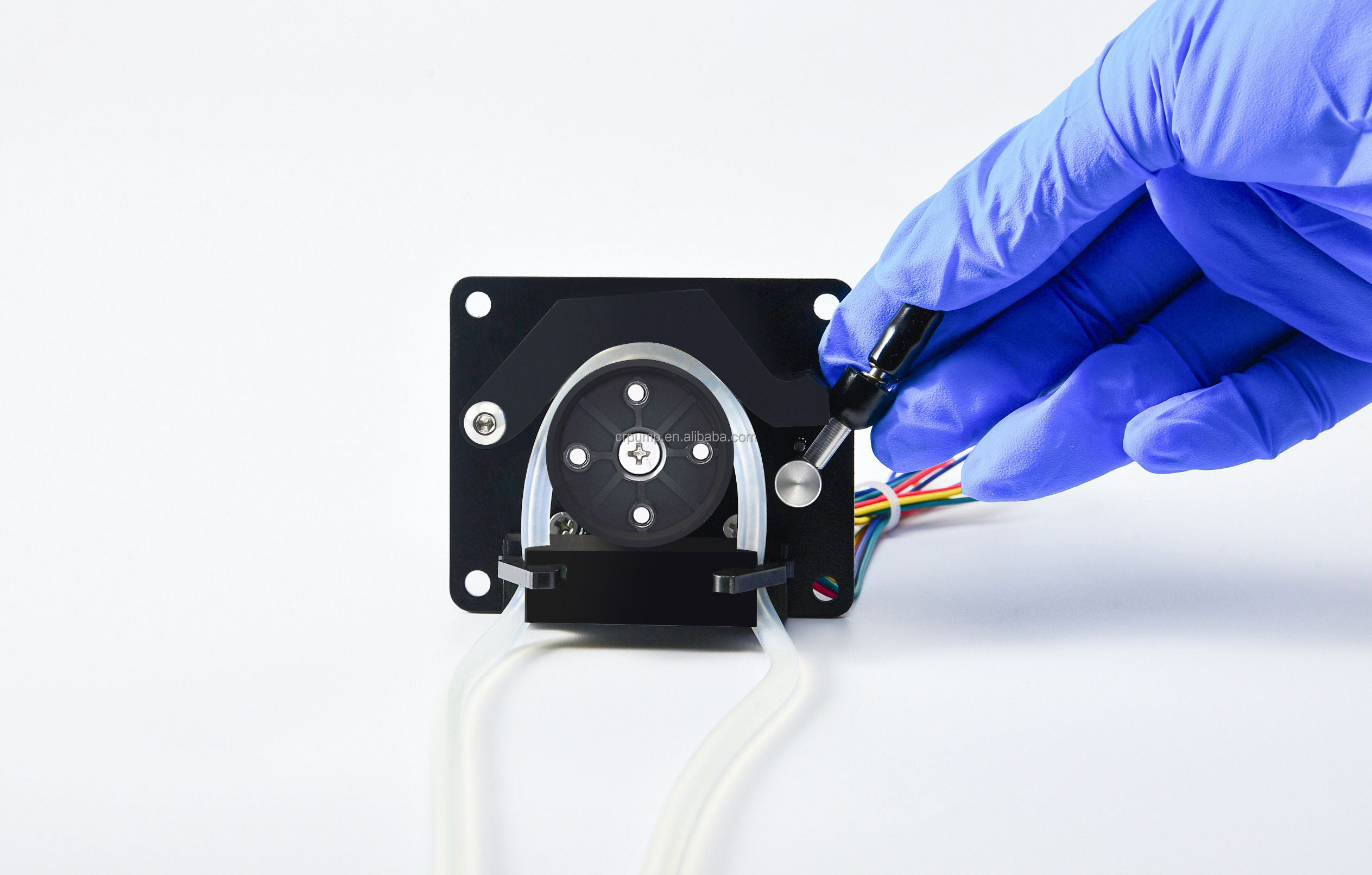

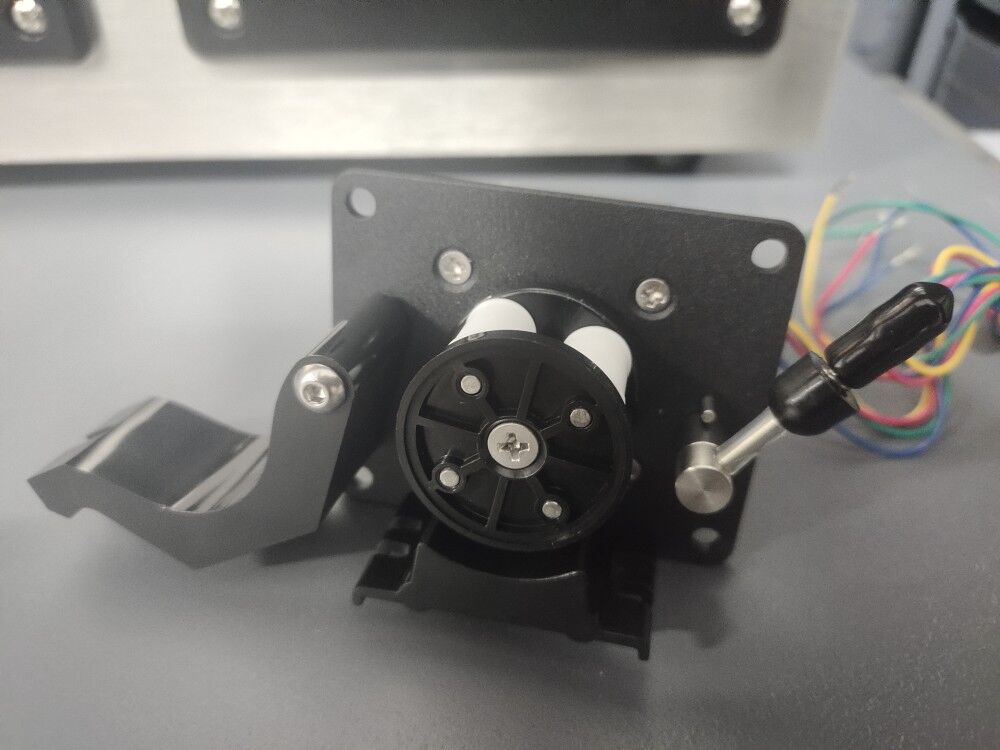

Snap-in type For 1 channel
Snap-in type, easy installation by snap locking the two ends to get together
mechanical spring
Spring type pressure pipe, pressure adaptive
4 rollers
4 rollers design low pulse
1.6mm tube wall thickness ,longer tube life
Model | UCP3131/WP120-15 |
Roller Number | 4 |
Channel | 1 |
Material of pump head | POM+PET |
Output pressure | ≤ 0.15 MPa |
Vacuum | ≤ 0.08 MPa |
Suitable Tube | Silicon ,Pharmed BPT. Noprene |
Tube model | |||||||||
Motor speed | 13# | 14# | 19# | 16# | 25# | ||||
150 rpm | 3 ml/min | 18 ml/min | 34 ml/min | 65 ml/min | 115 ml/min | ||||
Order Guide
This product is a customized product, please contact the sales for detailed understanding before purchasing.
Order number | Pump head | Channel number | Control method | Max Speed | Max Flow |
UCP313A | WP120-15 | 1 | User control | 150 rpm | 115 ml/min |
Embedded panel for easy installation
The installation panel can be customized according to the installation requirements of customers, and the customization cycle is 5-10 days
Hot Sale

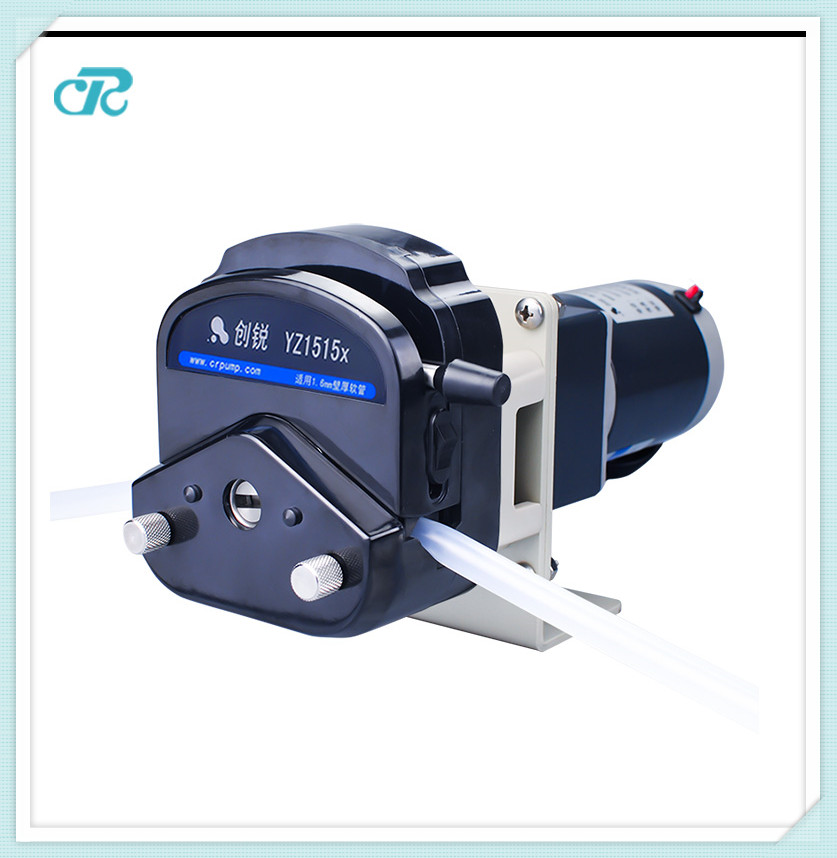

OEM201/YZ1515X
Max 2280ml/min
OEM203/TX315
Max 2000ml/min
OEM206/WP300
Max 1000ml/min
OEM208/KZ25
Max 6000ml/min

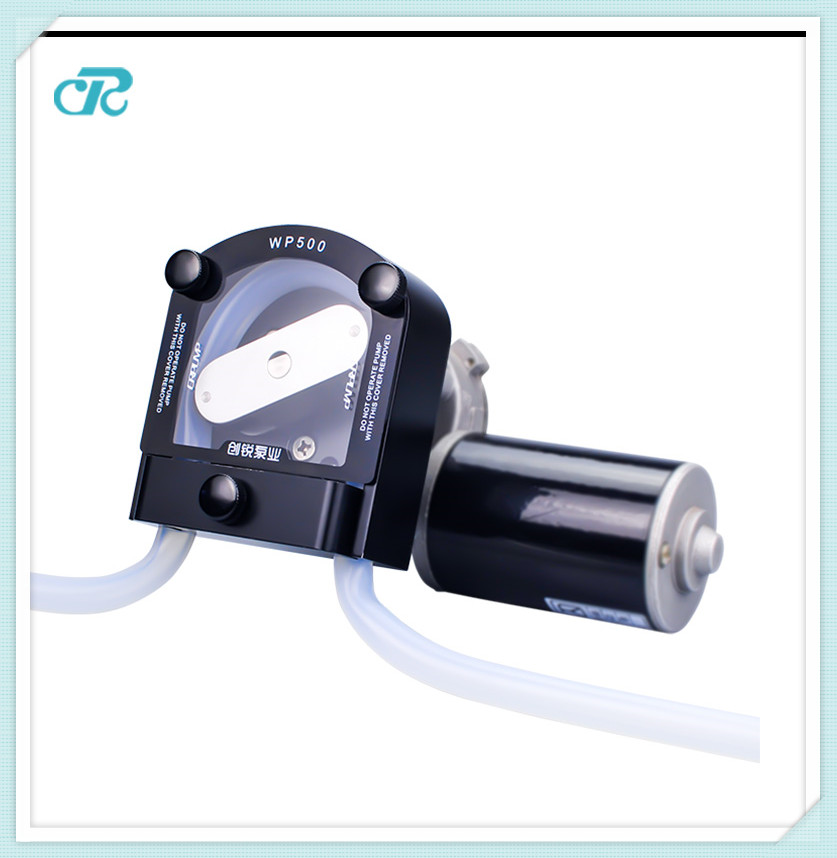

OEM210/WP500
Max 5000ml/min
OEM214/WP200
Max 420ml/min
Why Choose Us
Baoding Chuang Rui Precision Pump Co., Ltd.Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump.Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump.Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
